ROGER E80/TX52R/2 433.92 MHz Remote Control

ROGER E80/TX52R/2 Remote Control UAE

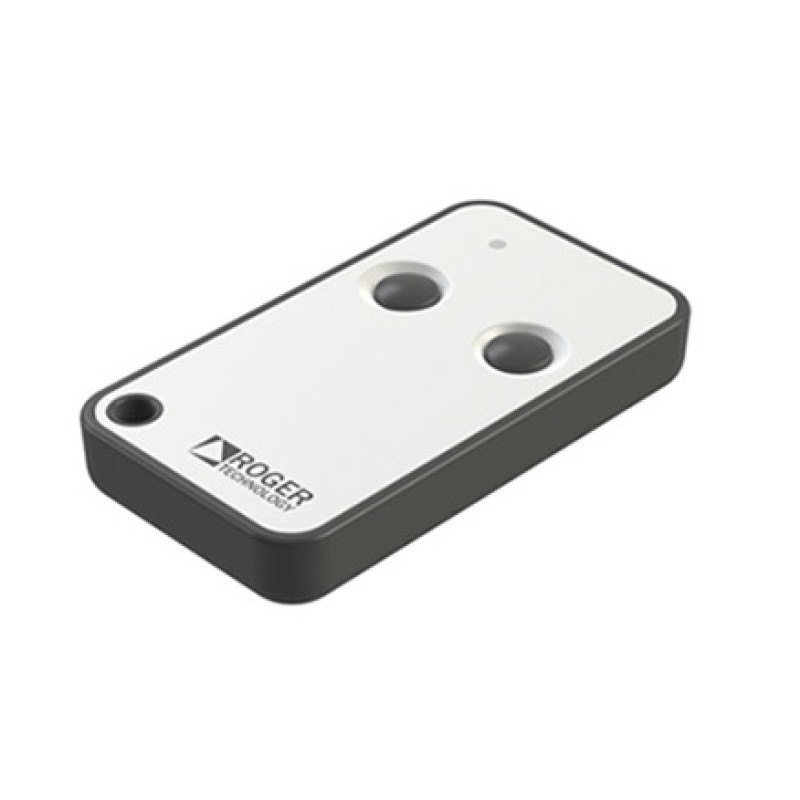

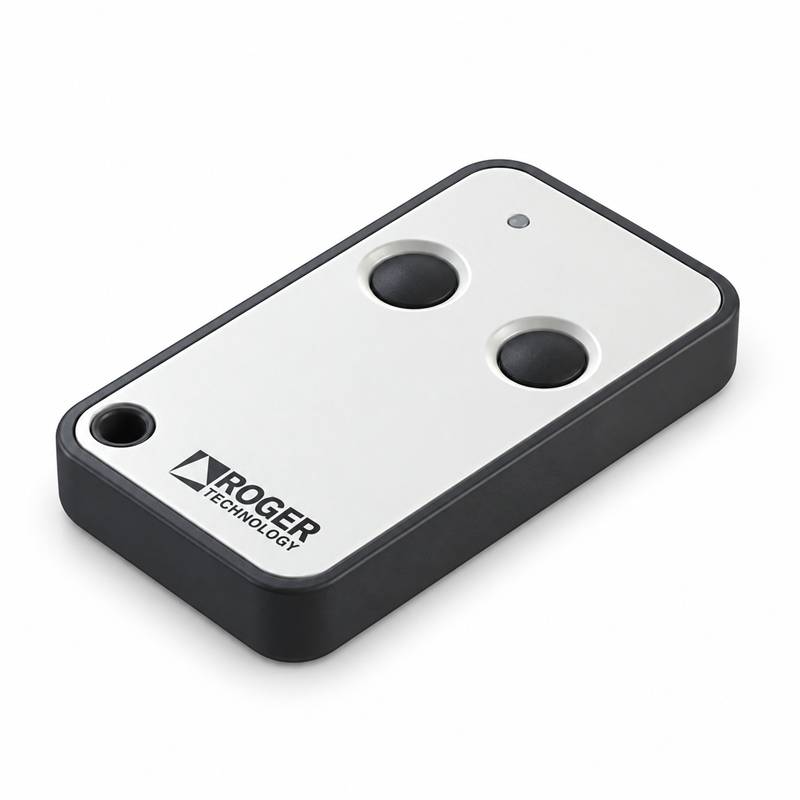

ROGER E80/TX52R/2 is an original 2-channel 433.92 MHz fixed-code remote control from Roger Technology, designed for compatible automatic gate and access automation systems. Compact and easy to use, the E80 transmitter provides two programmable channels together with a radio copy function for compatible installations.

The ROGER E80 remote control is suitable as an additional or replacement transmitter for compatible Roger Technology sliding gates, swing gates and other automation systems equipped with the correct 433.92 MHz fixed-code receiver. It operates from a CR2032 3V battery and provides a maximum declared open-field transmission distance of up to 150 metres.

ROGER E80 Key Features

• Original Roger Technology remote control
• Model: E80/TX52R/2
• Frequency: 433.92 MHz
• Number of channels: 2
• Coding system: Fixed Code
• Modulation: AM/ASK
• Radio copy function: Yes
• Number of combinations: 65,536
• Standard power supply: 3V DC
• Current absorption: 12mA
• Battery: CR2032 3V
• Maximum open-field range: 150 metres
• Operating temperature: -10°C to +55°C
• Compact dimensions: 38 × 68 × 11 mm
• Suitable as an additional or replacement ROGER remote

ROGER E80 Technical Specifications

2-Channel ROGER Gate Remote

The ROGER E80/TX52R/2 provides two radio channels. Each button can be assigned to a compatible automation command according to the installed receiver and control-board configuration.

For example, one button may be used for the main automatic gate while the second channel can operate another compatible gate or automation function. Actual operation depends on how the receiver has been programmed.

433.92 MHz Fixed-Code Transmitter

The E80/TX52R/2 operates at 433.92 MHz using a fixed-code radio system with AM/ASK modulation.

The transmitter provides 65,536 possible code combinations. When purchasing a replacement remote, the frequency and coding system must both be checked because another 433.92 MHz transmitter is not automatically compatible simply because it uses the same frequency.

ROGER E80 Copy Function

The ROGER E80/TX52R/2 includes a radio copy function. This allows compatible remote-control programming or code-copy procedures according to the ROGER radio system being used.

Before copying or programming a transmitter, identify the existing remote and receiver model to ensure that both use a compatible coding system.

Up to 150 Metres Open-Field Range

Roger Technology specifies a maximum transmission distance of up to 150 metres in open-field conditions for the E80/TX52R/2.

Actual operating range can be lower depending on walls, metal structures, electrical interference, receiver antenna position, battery condition and other environmental factors.

CR2032 3V Battery

The ROGER E80 remote uses one CR2032 3V battery. The battery can be replaced when transmitter range becomes noticeably reduced or the remote no longer operates reliably.

When replacing the battery, use the correct CR2032 type and install it with the correct polarity.

Compact ROGER Remote Control

With dimensions of approximately 38 × 68 × 11 mm, the ROGER E80 is compact enough for convenient everyday use while providing two separate control buttons.

Its small format makes it suitable for carrying with vehicle keys or keeping inside a vehicle for regular automatic gate access.

ROGER E80 Fixed Code vs Rolling Code

Important: The E80/TX52R/2 fixed-code remote and E80/TX2R/RC rolling-code remote are different products. Do not order only by appearance or frequency. Check the complete model number and coding system of the existing remote.

ROGER E80 2CH vs 4CH

The ROGER E80 series is available in different channel configurations. The E80/TX52R/2 has two channels, while E80/TX54R/2 is the corresponding four-channel fixed-code version.

ROGER also produces 2-channel and 4-channel rolling-code E80 transmitters. Always confirm the complete model number before selecting a replacement.

Compatible ROGER Gate Automation

The ROGER E80 can be used with compatible Roger Technology radio receivers installed on automatic gate systems. Depending on the receiver and control configuration, applications can include:

• ROGER H30 sliding gate motors
• ROGER R30 sliding gate motors
• ROGER R20 swing gate motors
• Automatic sliding gates
• Automatic swing gates
• Villa entrance gates
• Residential gate automation
• Compatible commercial gate automation

Replacement ROGER Gate Remote

The ROGER E80/TX52R/2 is suitable as a replacement or additional transmitter when the installed Roger Technology receiver supports its 433.92 MHz fixed-code radio system.

For an existing installation, check the complete model printed on the original remote or identify the installed receiver before ordering.

ROGER E80 Remote Programming

Programming depends on the ROGER radio receiver or gate control system installed at the property. A new E80 transmitter may need to be registered directly to the receiver or programmed using the appropriate compatible copy procedure.

Important: Do not delete existing transmitters from the receiver unless necessary. Always identify the receiver model before starting remote-control programming.

ROGER E80 Remote Control UAE

We supply ROGER E80/TX52R/2 433.92 MHz remote controls throughout the UAE for compatible Roger Technology automatic gate systems.

Supply and remote programming support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Check the complete model number, frequency and coding system of your existing ROGER transmitter. If you are unsure, send a clear photo of the front and back of your existing remote so the correct version can be identified.
