ROGER R30/805 800 KG Sliding Gate Motor

ROGER R30/805 800 KG Sliding Gate Motor UAE

ROGER R30/805 is a professional 230V automatic sliding gate motor kit designed for gates weighing up to 800 KG. Manufactured by Roger Technology, the R30/805 uses the R30/803 irreversible electromechanical motor with a built-in H70/104AC electronic control board, optical encoder and mechanical limit switch.

The ROGER R30 800 KG sliding gate opener is suitable for villas, residential buildings, compounds, offices and compatible commercial entrances. Its robust electromechanical design, integrated electronic controller and optical encoder provide dependable automatic sliding gate operation for professional installations throughout the UAE.

ROGER R30/805 Key Features

• Original Roger Technology sliding gate automation
• Kit model: R30/805
• Motor model: R30/803
• Maximum sliding gate weight: 800 KG
• Power supply: 230V AC – 50Hz
• Irreversible electromechanical gearbox
• Built-in H70/104AC control board
• Optical encoder
• Mechanical limit switch
• Frequency of use: 50%
• Gate movement speed: 9.5 m/min (0.16 m/s)
• Motor thermal protection: 150°C
• Operating temperature: -20°C to +55°C
• Protection rating: IP44
• Suitable for residential applications
• Suitable for compatible commercial applications
• Manual release for emergency gate operation

ROGER R30/805 Technical Specifications

800 KG Automatic Sliding Gate Motor

The ROGER R30/805 is designed for compatible automatic sliding gates weighing up to 800 KG. Its capacity makes it suitable for larger villa gates, residential entrances and compatible commercial sliding gates requiring a reliable 230V electromechanical operator.

Gate motor selection should not be based on weight alone. Gate length, wheel condition, track alignment, gear rack condition, mechanical resistance and daily operating frequency should also be checked before installation.

ROGER R30/803 Motor

The R30/805 kit uses the R30/803 motor. This is a 230V AC irreversible electromechanical sliding gate operator designed for gates up to 800 KG.

The R30/803 combines the motor, reduction gearbox, electronic control system, optical encoder and mechanical limit-switch system in a professional sliding gate operator.

Built-In H70/104AC Control Board

The ROGER R30 incorporates the H70/104AC electronic control board inside the motor housing. This provides an integrated solution without requiring a separate external motor control panel for normal installations.

The controller manages automatic gate movement and compatible accessories such as radio receivers, photocell safety sensors, flashing lights, push buttons and other automation commands.

Optical Encoder Technology

The ROGER R30/803 incorporates an optical encoder to provide the electronic controller with information about motor movement.

The encoder works together with the control electronics to provide more accurate management of the sliding gate during automatic operation.

Mechanical Limit Switch

The R30/803 motor and R30/805 kit use a mechanical limit-switch system. The limit switches establish the fully open and fully closed gate positions.

Correct adjustment of the limit-switch components is important during installation to ensure that the motor stops reliably at both ends of the sliding gate travel.

9.5 m/min Gate Speed

The ROGER R30 series operates at a nominal gate movement speed of approximately 9.5 metres per minute (0.16 m/s).

This provides controlled movement suitable for residential and compatible commercial sliding gate entrances.

50% Frequency of Use

The R30 800 KG operator is rated for a 50% frequency of use. This makes it suitable for normal residential operation and compatible commercial applications where the required duty cycle remains within the motor's operating specification.

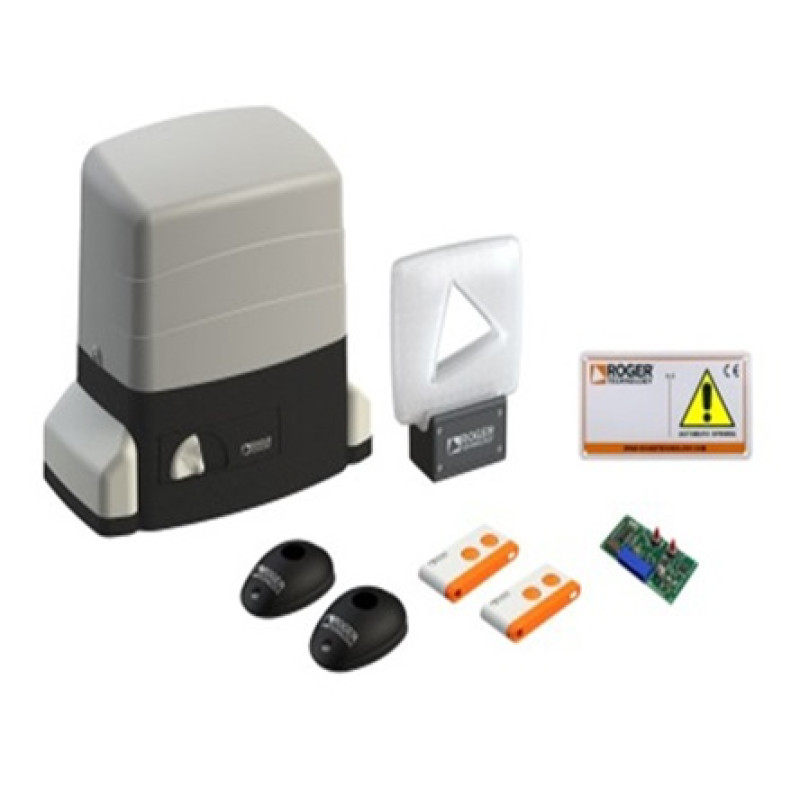

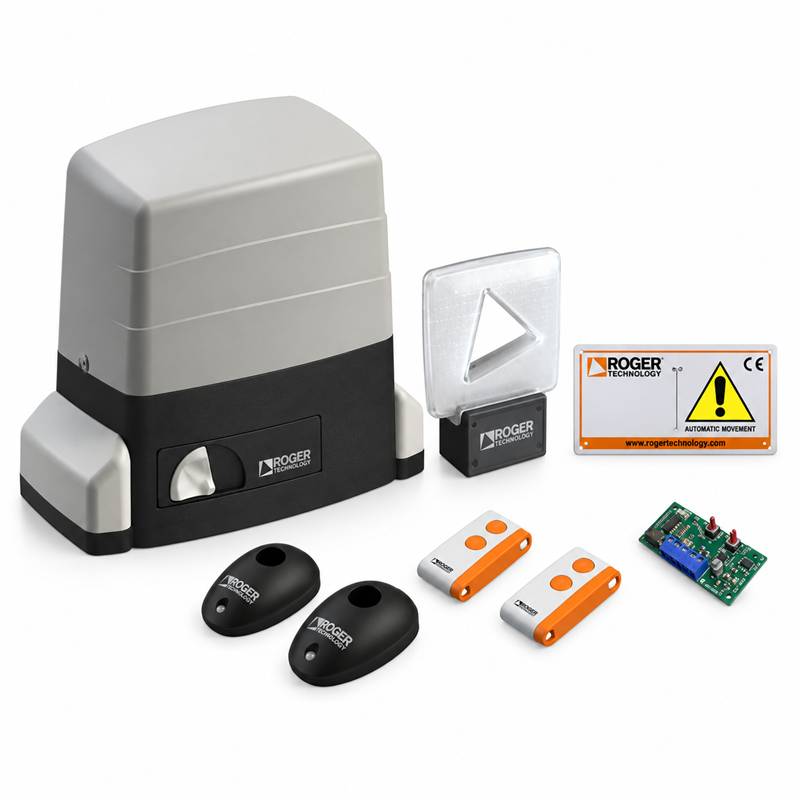

ROGER R30/805 Kit

The ROGER R30/805 is the complete kit version based on the R30/803 mechanical-limit-switch motor. Compatible accessories can include a radio receiver, remote controls, photocell sensors, flashing warning light and installation accessories.

Our UAE package can be supplied with the required accessories according to the selected configuration. Always confirm the exact package contents before ordering.

ROGER Remote Control

The R30/805 can be operated using compatible Roger Technology remote controls and radio receivers. Remote transmitters can be programmed to the installed receiver to provide convenient wireless opening and closing of the automatic gate.

Photocell Safety Sensors

Compatible ROGER photocell sensors can be connected to the R30 gate automation system to provide an important safety input.

When the photocell beam is interrupted by a person, vehicle or object, the control board responds according to the programmed safety logic. Photocells are especially important when automatic closing is enabled.

Automatic Closing

The compatible ROGER control system can be configured for automatic gate closing after a programmed pause period.

Automatic closing should only be enabled after the appropriate photocells and other required safety devices have been correctly installed and tested.

Manual Emergency Release

The ROGER R30 sliding gate operator includes a manual release system so the motor can be disengaged when manual gate movement is required.

This allows the sliding gate to be moved manually during a power failure, maintenance or troubleshooting.

ROGER R30/803 vs R30/804

The main difference is the limit-switch technology. The R30/803 / KIT R30/805 uses mechanical limit switches, while the R30/804 / KIT R30/806 uses magnetic limit switches. Both versions are designed for sliding gates up to 800 KG.

ROGER R30 Applications

• Villa sliding gates
• Residential automatic gates
• Apartment building entrances
• Residential compounds
• Private driveway gates
• Office entrances
• Compatible commercial sliding gates
• Automatic parking entrances
• Sliding gates up to 800 KG

ROGER R30/805 Installation UAE

Professional installation of the ROGER R30/805 800 KG sliding gate motor is available for villas, residential buildings and compatible commercial properties throughout the UAE.

Installation can include motor mounting, nylon or steel rack installation, electrical wiring, mechanical limit-switch adjustment, photocell installation, flashing light connection, remote-control programming, automatic closing setup and complete operational testing.

ROGER R30/805 Sliding Gate Motor UAE

We supply ROGER R30/805 800 KG sliding gate motors throughout the UAE with professional installation, programming, maintenance and technical support.

Supply and installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the gate weight, gate dimensions, wheel and track condition and required accessories. For replacement installations, check whether your existing R30 motor has a mechanical or magnetic limit switch.
