ROGER R20/510 Swing Gate Motor
Price 2,499 AEDIn Stock
ROGER R20/510 Swing Gate Motor UAE
ROGER R20/510 is a professional 230V automatic swing gate motor kit designed for swing gates with each leaf measuring up to 3.5 metres. Manufactured by Roger Technology, the kit uses two R20/500 irreversible electromechanical actuators together with the H70/200AC/BOX control unit for reliable double swing gate automation.
The ROGER R20/510 swing gate opener is suitable for villas, residential properties, commercial entrances and compatible industrial applications. With 2500N thrust, 520 mm stroke and approximately 27-second opening time, the R20 series provides a strong and dependable solution for professional swing gate automation throughout the UAE.
ROGER R20/510 Key Features
- Original Roger Technology gate automation kit
- Kit model: R20/510
- Motor model: R20/500
- 2 × electromechanical swing gate actuators
- Maximum gate leaf length: 3.5 metres
- Power supply: 230V AC – 50Hz
- Motor power: 200W
- Maximum thrust: 2500N
- Stroke: 520 mm
- Opening time: approximately 27 seconds
- Movement speed: 1.66 cm/s
- Frequency of use: 40%
- Irreversible electromechanical operator
- Microswitch limit switch in opening
- Optional closing microswitch available
- Motor thermal protection: 150°C
- Operating temperature: -20°C to +55°C
- Protection rating: IP44
- Compatible with H70/200AC/BOX control unit
- Suitable for residential, commercial and compatible industrial applications
ROGER R20/510 Technical Specifications
| Brand | Roger Technology |
| Kit Model | R20/510 |
| Motor Model | R20/500 |
| Maximum Gate Leaf Length | 3.5 Metres |
| Power Line Supply | 230V AC – 50Hz |
| Motor Power Supply | 230V AC |
| Power | 200W |
| Frequency of Use | 40% |
| Thrust | 2500N |
| Movement Speed | 1.66 cm/s |
| Opening Time | 27 Seconds |
| Stroke | 520 mm |
| Limit Switch | Opening Microswitch; Closing Optional |
| Encoder | No |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +55°C |
| Thermal Protection | 150°C |
| Capacitor | 15 µF |
| Control Board | H70/200AC/BOX |
Swing Gate Motor for Leaves Up to 3.5 Metres
The ROGER R20/510 is designed for compatible swing gates with individual gate leaves measuring up to 3.5 metres. This makes it suitable for medium and large villa gates, residential entrances and compatible commercial swing gates.
For a double swing gate, one R20/500 actuator is installed on each gate leaf. The maximum 3.5-metre specification applies to each individual leaf and should not be interpreted as the total width of both leaves.
230V Electromechanical Swing Gate Operator
The R20/500 is a 230V AC irreversible electromechanical actuator. Its robust linear drive system provides dependable automatic opening and closing for compatible swing gates.
The irreversible gearbox keeps the actuator mechanically engaged during normal operation, while the manual release system allows the gate to be operated manually when required.
2500N Maximum Thrust
The ROGER R20/500 provides up to 2500N thrust, giving the linear actuator the mechanical force required to operate compatible swing gate leaves.
The gate should always move freely on its hinges before automation. Excessive motor force should never be used to compensate for damaged hinges, incorrect alignment or excessive mechanical resistance.
520 mm Actuator Stroke
The R20/500 provides a substantial 520 mm actuator stroke. Correct front and rear bracket positioning is essential to obtain the required gate opening angle and smooth actuator movement.
Installation geometry should be calculated according to the gate hinge position, pillar dimensions and required opening angle.
27 Second Opening Time
The ROGER R20/500 has an opening time of approximately 27 seconds with a nominal movement speed of 1.66 cm/s.
Actual gate movement can depend on installation geometry, gate dimensions and the configured control system.
Opening Microswitch Limit Switch
The R20/500 is supplied with one microswitch limit switch for the opening position. This allows the actuator to establish the required opening position when correctly installed and adjusted.
An optional MC770 closing microswitch kit is available when a closing limit switch is required for the installation.
H70/200AC/BOX Control Board
The official ROGER R20/510 kit includes the H70/200AC/BOX electronic control unit. It is designed to control two 230V AC swing gate motors and provides slowdown functions for professional double-leaf gate automation.
The controller can be combined with compatible radio receivers, remote controls, photocells, flashing lights and other gate automation accessories.

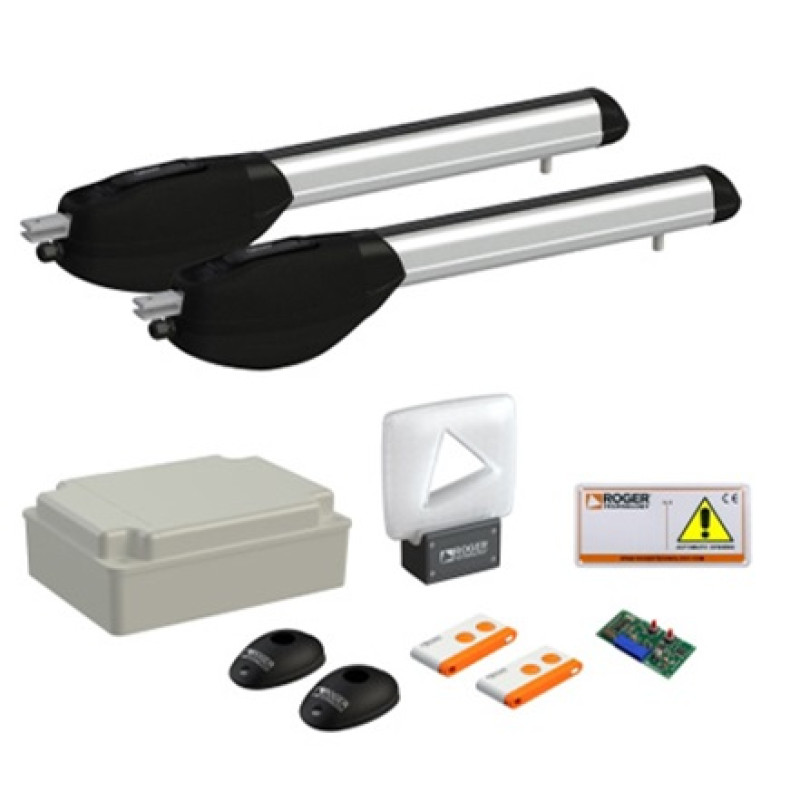

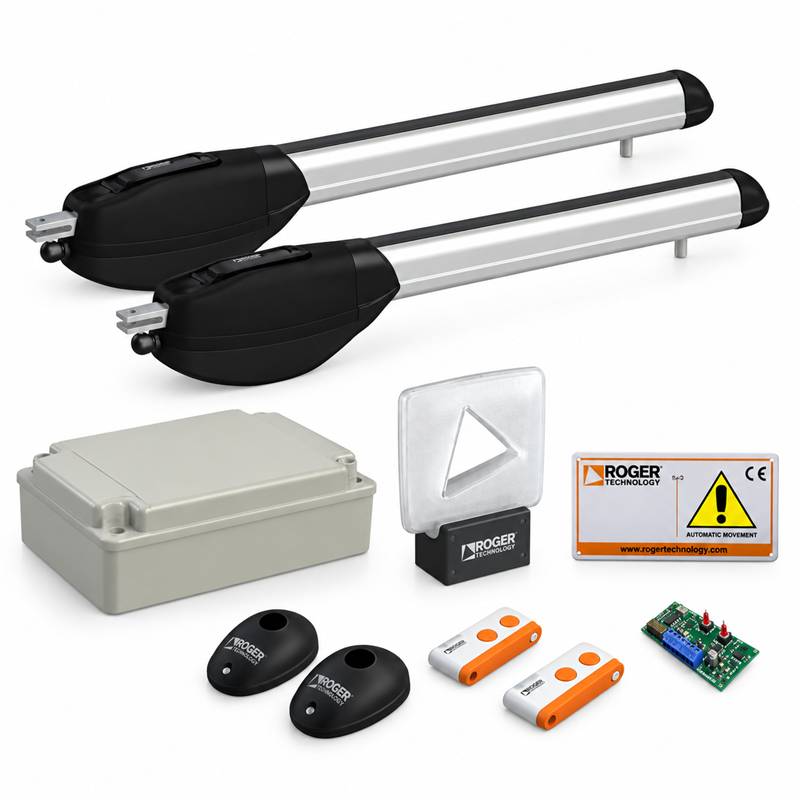

ROGER R20/510 Complete Kit
- 2 × ROGER R20/500 swing gate actuators
- 1 × H70/200AC/BOX control unit
- 1 × H93/RX433/I plug-in radio receiver
- 2 × T80/TX2 2-channel remote controls
- 1 × Pair R90/F2ES synchronized photocell sensors
- 1 × FIFTHY/230 LED flashing light with integrated antenna
- 1 × Automatic opening warning sign
- Motor mounting brackets
Note: The above is the current Roger Technology factory KIT R20/510 composition. If our UAE package contains different or additional accessories, the exact supplied package should be confirmed before ordering.
433.92 MHz Remote Control System
The official R20/510 kit includes the H93/RX433/I plug-in receiver and two T80/TX2 remote controls.
The receiver operates at 433.92 MHz and supports compatible fixed-code and rolling-code operation. The T80/TX2 is a 2-channel transmitter with compatible code-copy functionality.
ROGER R90 Photocell Sensors
The factory kit includes one pair of ROGER R90/F2ES synchronized external photocell sensors. Photocells provide an important safety input by monitoring the protected gate entrance.
When the infrared beam is interrupted, the photocells signal the gate control system, which responds according to the programmed safety logic.
ROGER FIFTHY/230 Flashing Light
The official R20/510 kit includes the ROGER FIFTHY/230 LED flashing warning light with integrated antenna. The flashing light provides a visible warning while the automatic swing gate is operating.
ROGER R20/310 vs R20/510
| Specification | R20/310 | R20/510 |
|---|---|---|
| Motor | R20/300 | R20/500 |
| Maximum Leaf Length | 2.5 m | 3.5 m |
| Power Supply | 230V AC | 230V AC |
| Operator Type | Irreversible | Irreversible |
| Opening Limit Switch | Microswitch | Microswitch |
| Best Choice | Gate leaves up to 2.5 m | Gate leaves up to 3.5 m |
ROGER R20/510 Applications
- Villa swing gates
- Residential automatic gates
- Double-leaf swing gates
- Single-leaf swing gates
- Private driveway entrances
- Residential compounds
- Commercial property entrances
- Compatible industrial entrances
- Swing gate leaves up to 3.5 metres
ROGER R20/510 Installation UAE
Professional installation of the ROGER R20/510 swing gate motor is available for villas, residential properties and compatible commercial entrances throughout the UAE.
Installation can include actuator mounting, bracket installation, H70/200AC control board wiring, photocell installation, flashing light connection, remote-control programming, opening limit adjustment, automatic closing programming and complete operational testing.
ROGER R20/510 Swing Gate Motor UAE
We supply ROGER R20/510 automatic swing gate motors throughout the UAE with professional installation, programming, maintenance and technical support.
Supply and installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm the length and weight of each gate leaf, hinge position, pillar dimensions, required opening angle and expected daily usage. For replacement installations, confirm whether your existing actuator is R20/300, R20/500 or another R20-series version.
