ROGER H30/645 600 KG Sliding Gate Motor

ROGER H30/645 600 KG Sliding Gate Motor UAE

ROGER H30/645 is a professional 230V automatic sliding gate motor kit for gates weighing up to 600 KG. Manufactured by Roger Technology in Italy, the H30/645 combines the H30/643 irreversible electromechanical motor with a built-in H70/104AC control unit, optical encoder and mechanical limit switch for reliable residential and commercial sliding gate automation.

The ROGER H30 600 KG sliding gate opener is suitable for villas, residential buildings, offices and compatible commercial entrances. With 350W motor power, 850N thrust, 9.5 m/min gate speed and 50% frequency of use, it provides a strong and dependable solution for automatic sliding gates throughout the UAE.

ROGER H30/645 Key Features

• Original Roger Technology gate automation system
• Kit model: H30/645
• Motor model: H30/643
• Maximum gate weight: 600 KG
• Power line supply: 230V AC – 50Hz
• Motor power supply: 230V AC
• Motor power: 350W
• Maximum thrust: 850N
• Frequency of use: 50%
• Gate movement speed: 9.5 m/min (0.16 m/s)
• Irreversible electromechanical gearbox
• Built-in H70/104AC control board
• Optical encoder
• Mechanical limit switch
• Motor thermal protection: 150°C
• Operating temperature: -20°C to +55°C
• Protection rating: IP44
• Output gear: Z15 / Module 4
• Fixing plate with tie rods included with motor
• Suitable for residential and compatible commercial sliding gates

ROGER H30/645 Technical Specifications

600 KG Automatic Sliding Gate Motor

The ROGER H30/645 is designed for compatible sliding gates weighing up to 600 KG. This capacity makes it particularly suitable for villa entrances, residential sliding gates and compatible light-commercial gate automation applications.

The maximum gate weight is only one factor when selecting an automatic gate motor. Gate length, wheel condition, track alignment, rack condition, mechanical resistance and expected operating frequency should also be considered before installation.

230V AC Electromechanical Gate Motor

The H30/645 uses the ROGER H30/643 230V AC electromechanical motor. The irreversible gearbox keeps the operator mechanically engaged during normal automatic operation and provides a robust solution for sliding gate automation.

The motor is rated at 350W with up to 850N thrust and a frequency of use of 50%.

Built-In H70/104AC Control Board

The ROGER H30/643 motor incorporates the H70/104AC electronic control unit, providing an integrated control solution inside the sliding gate operator.

The controller manages the motor and compatible automation accessories, including radio receiver, photocells, flashing light and other gate-control inputs according to the programmed installation configuration.

Optical Encoder

The ROGER H30 incorporates an optical encoder to provide the control system with information about motor movement.

The encoder works together with the electronic controller to provide more precise management of the automatic sliding gate during normal operation.

Mechanical Limit Switch

The H30/645 kit uses the H30/643 motor with mechanical limit switches. These limit switches are used to establish the gate's fully open and fully closed positions.

Correct positioning and adjustment of the limit-switch components are essential during installation to ensure reliable stopping at both ends of gate travel.

9.5 m/min Sliding Gate Speed

The ROGER H30 operates at a nominal movement speed of 9.5 metres per minute, equivalent to approximately 0.16 m/s.

This provides controlled movement suitable for normal residential and compatible commercial sliding gate applications.

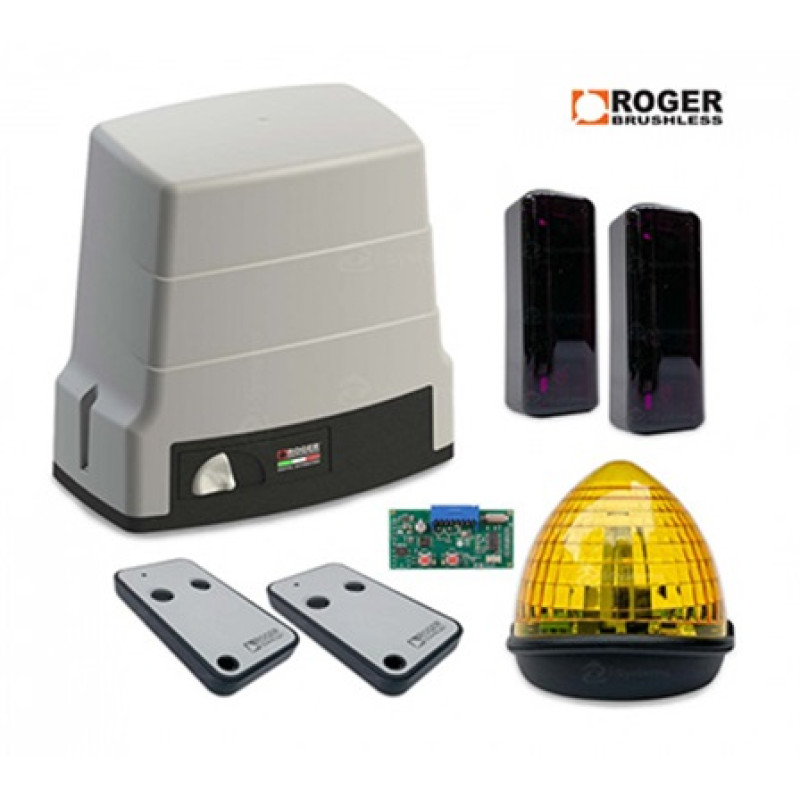

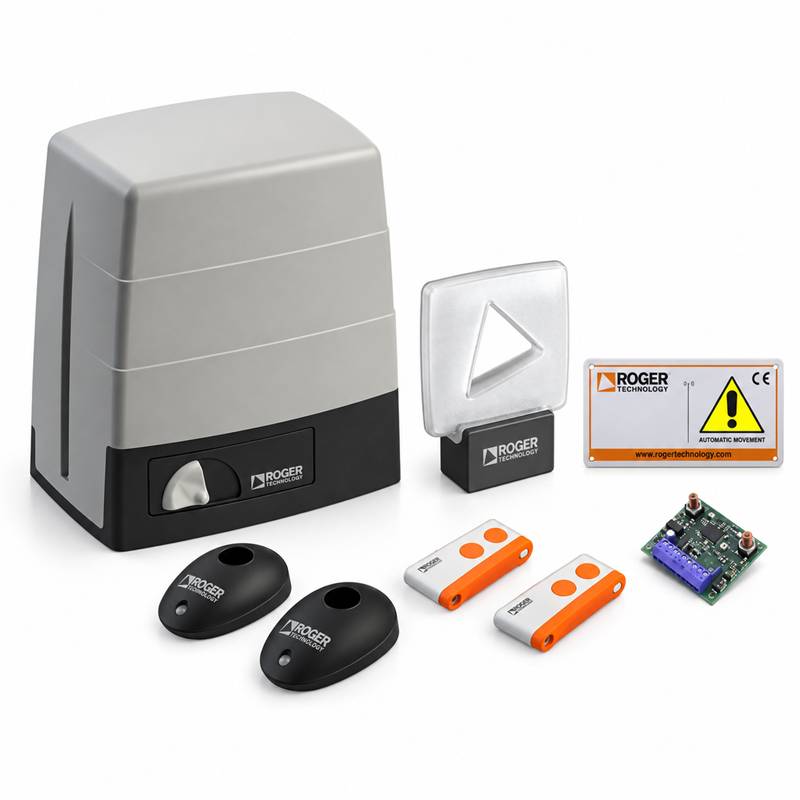

ROGER H30/645 Kit Components

The official Roger Technology H30/645 factory kit is based on the H30/643 motor and compatible Roger automation accessories.

• 1 × ROGER H30/643 600 KG sliding gate motor
• 1 × Built-in H70/104AC control board
• 1 × H93/RX433/I 2-channel 433.92 MHz receiver
• 2 × T80/TX2 2-channel 433.92 MHz transmitters
• 1 × Pair R90/F2ES synchronized photocells
• 1 × FIFTHY/230 LED flashing light with integrated antenna
• 1 × Automatic opening warning sign
• 1 × Motor fixing plate with tie rods

Note: Our UAE package may include additional accessories such as nylon gate racks and push button according to the selected package. Confirm the exact supplied accessories before ordering.

433.92 MHz Radio Control

The official H30/645 kit includes the ROGER H93/RX433/I plug-in radio receiver. The receiver operates at 433.92 MHz and supports fixed-code and rolling-code operation.

The kit also includes two compatible ROGER T80/TX2 two-channel transmitters for wireless gate control.

ROGER R90 Photocell Safety Sensors

The H30/645 factory kit includes a pair of ROGER R90/F2ES synchronized external photocells. Photocells provide an important safety input to the automatic gate control system by monitoring the protected entrance area.

When the infrared beam is interrupted, the photocells signal the control board, which responds according to its programmed safety configuration.

ROGER FIFTHY/230 Flashing Light

The official kit includes a ROGER FIFTHY/230 LED flashing warning light with integrated antenna. The flashing light provides a visible warning while the automatic gate system is operating.

ROGER H30/643 vs H30/644

The key difference is the limit-switch system. H30/645 uses the H30/643 motor with mechanical limit switches, while H30/646 uses the H30/644 motor with magnetic limit switches. Both are rated for sliding gates up to 600 KG.

ROGER H30 Applications

• Villa sliding gates
• Residential automatic gates
• Private driveway gates
• Apartment entrances
• Office entrances
• Compatible commercial sliding gates
• Automatic parking entrances
• Sliding gates up to 600 KG

ROGER H30 Sliding Gate Motor Installation UAE

Professional installation of the ROGER H30/645 sliding gate motor is available for villas, residential buildings and compatible commercial properties throughout the UAE.

Installation can include motor mounting, gear rack installation, electrical wiring, mechanical limit-switch adjustment, photocell installation, flashing light connection, remote-control programming and complete operational testing.

ROGER H30/645 Sliding Gate Motor UAE

We supply ROGER H30/645 600 KG sliding gate motors throughout the UAE with installation, programming, maintenance and technical support.

Supply and installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the sliding gate weight, gate dimensions, wheel and track condition and required accessories. For replacement motors, check whether your existing ROGER H30 uses a mechanical or magnetic limit switch before ordering.
