FAAC 741 900 KG Sliding Gate Motor

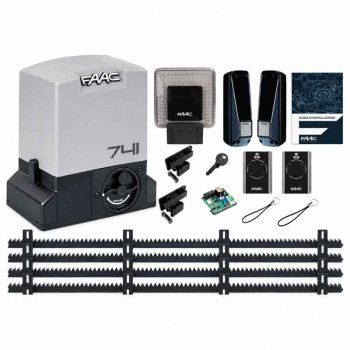

FAAC 741 900 KG Automatic Sliding Gate Motor UAE

FAAC 741 is a powerful 230V automatic sliding gate motor designed for residential sliding gates weighing up to 900 kg. The FAAC 741 E Z16 combines robust electromechanical construction, integrated electronic control, optical encoder technology and magnetic limit switches for reliable automatic gate operation.

With 500W power, up to 650N thrust force, 24 Nm maximum torque and a gate speed of approximately 12 metres per minute, the FAAC 741 is an excellent solution for heavier residential sliding gates, villa entrances and private property gates.

FAAC 741 Key Features

• Original FAAC sliding gate motor
• Model: 741 E Z16
• Maximum gate weight: 900 kg
• Maximum gate leaf width: 15 metres
• Power supply: 220–240V AC, 50/60Hz
• Asynchronous single-phase electric motor
• Maximum power: 500W
• Maximum torque: 24 Nm
• Maximum thrust force: 650N
• Maximum gate speed: 12 m/min
• Use frequency: S3 – 40%
• Integrated optical encoder
• Obstacle detection with reverse function
• Accurate management of partial opening and slowdown
• Magnetic limit switches
• Integrated FAAC 740D control board
• Display-based programming
• Electronic force adjustment
• Non-reversing gearbox
• Manual key release for power failure
• Protection rating: IP44
• Operating temperature: -20°C to +55°C

FAAC 741 Technical Specifications

900 KG Residential Sliding Gate Motor

The FAAC 741 is designed for residential sliding gates weighing up to 900 kg. Its higher capacity makes it suitable for larger villa gates, heavy residential driveway gates and private entrances where a FAAC 740 500 KG motor may not provide sufficient capacity.

The correct motor should always be selected according to gate weight, gate length, wheel and track condition, mechanical resistance and expected operating frequency.

230V High-Power Sliding Gate Operator

The FAAC 741 uses a 230V asynchronous single-phase motor. The established 741 E Z16 configuration provides approximately 500W maximum power, 24 Nm maximum torque and 650N maximum thrust force.

This combination provides dependable movement for compatible sliding gates weighing up to 900 kg when the gate is mechanically sound and correctly installed.

12 m/min Automatic Gate Speed

The FAAC 741 provides a maximum sliding speed of approximately 12 metres per minute. Actual opening and closing times depend on the total gate travel distance and programmed operating parameters.

The integrated control system also manages slowdown during appropriate stages of gate movement for smoother operation and stopping.

Integrated Optical Encoder

The FAAC 741 incorporates an optical encoder that monitors gate movement during automatic operation. The encoder works together with the electronic controller to provide obstacle detection and reverse functionality.

It also supports accurate management of partial opening and slowdown, helping provide controlled gate movement throughout the operating cycle.

Obstacle Detection & Anti-Crushing Protection

The FAAC 741 electronic system monitors motor force and movement. When abnormal resistance is detected, the controller can respond according to its programmed obstacle-detection logic.

Compatible photocell safety sensors should also be installed and correctly programmed as part of a professional automatic gate safety system.

Magnetic Limit Switches

The FAAC 741 uses magnetic limit switches to determine the fully open and fully closed gate positions. Magnetic sensing provides reliable gate-position detection without conventional mechanical microswitch contact.

Correct installation and positioning of the limit magnets is important for accurate stopping and reliable long-term operation.

FAAC 740D Integrated Control Board

This FAAC 741 configuration incorporates the FAAC 740D electronic control board. The prewired controller simplifies installation and provides convenient display-based programming directly at the gate motor.

The 740D provides extensive operating-logic and installation parameter configuration for compatible FAAC gate automation systems.

Non-Reversing Gearmotor

The FAAC 741 uses a non-reversing electromechanical gearbox. When the motor stops, the gearbox mechanically locks the sliding gate in position.

Because of this design, an additional electric gate lock is normally not required for standard installations.

Manual Release During Power Failure

In the event of a mains power failure or when maintenance is required, the FAAC 741 can be manually released using its key-protected release mechanism.

Once released, the gate can be moved manually. The motor should be correctly re-engaged before returning the gate to automatic operation.

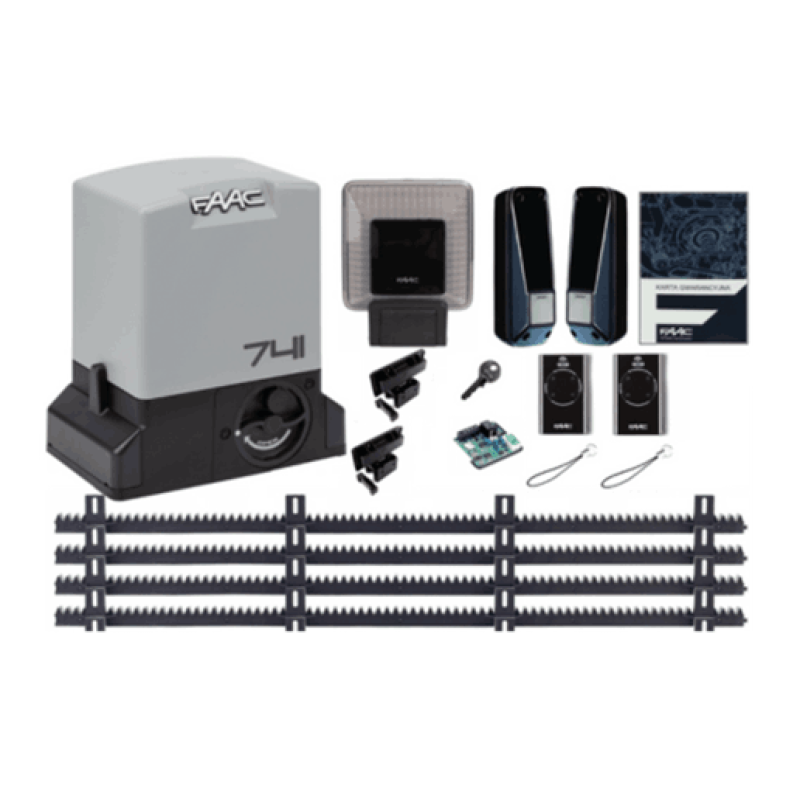

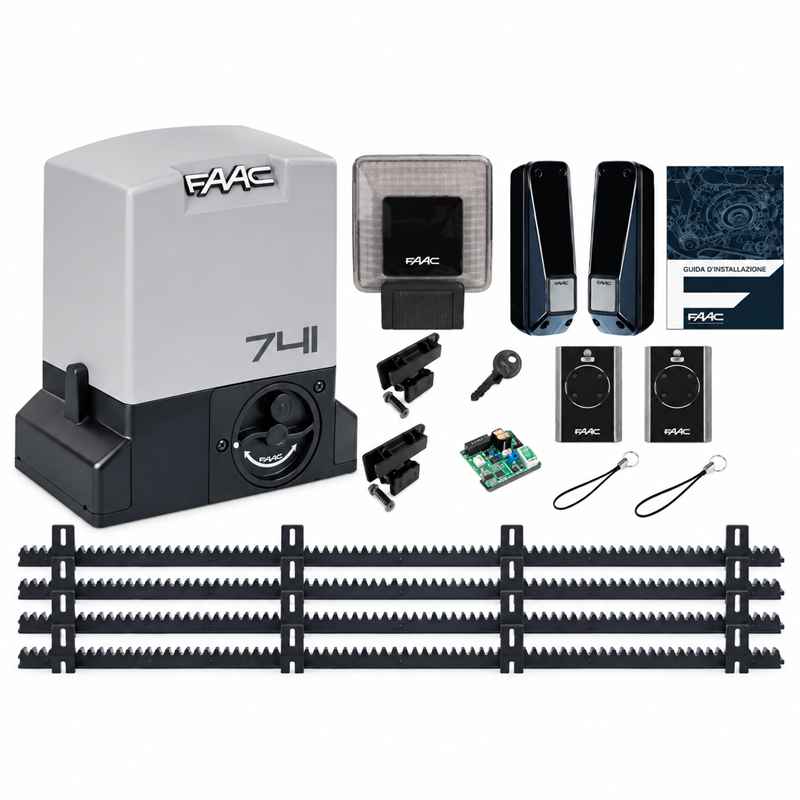

FAAC 741 900 KG Complete Gate Motor Kit

• 1 × FAAC 741 900 KG sliding gate motor
• 1 × Integrated FAAC 740D control board
• 4 × 1 metre nylon gate racks
• 1 × FAAC RP 433 SLH plug-in receiver
• 1 × FAAC XT2 433 SLH LR 2-channel remote control
• 1 × Pair of FAAC XP 20D photocell safety sensors
• 1 × FAAC XLED flashing warning light
• 1 × Manual release lock with key
• 1 × Push button

FAAC 740 vs FAAC 741

FAAC 741 Compatible Access Control

• FAAC remote controls
• FAAC XP 20D photocell sensors
• FAAC XLED flashing light
• GSM gate opener
• RFID access control
• Long-range UHF RFID vehicle access
• Access-control keypad
• Push button
• Intercom system
• Vehicle loop detector

FAAC 741 Sliding Gate Motor Applications

• Villa sliding gates
• Heavy residential driveway gates
• Private property entrances
• Residential buildings and compounds
• Sliding gates up to 900 kg
• Compatible gate leaves up to 15 metres

FAAC 741 900 KG Sliding Gate Motor UAE

We supply FAAC 741 900 KG sliding gate motors throughout the UAE for residential automatic sliding gate installations.

Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the gate weight, gate length, wheel and track condition, expected operating frequency and required access-control accessories to ensure the FAAC 741 is suitable for your installation.
