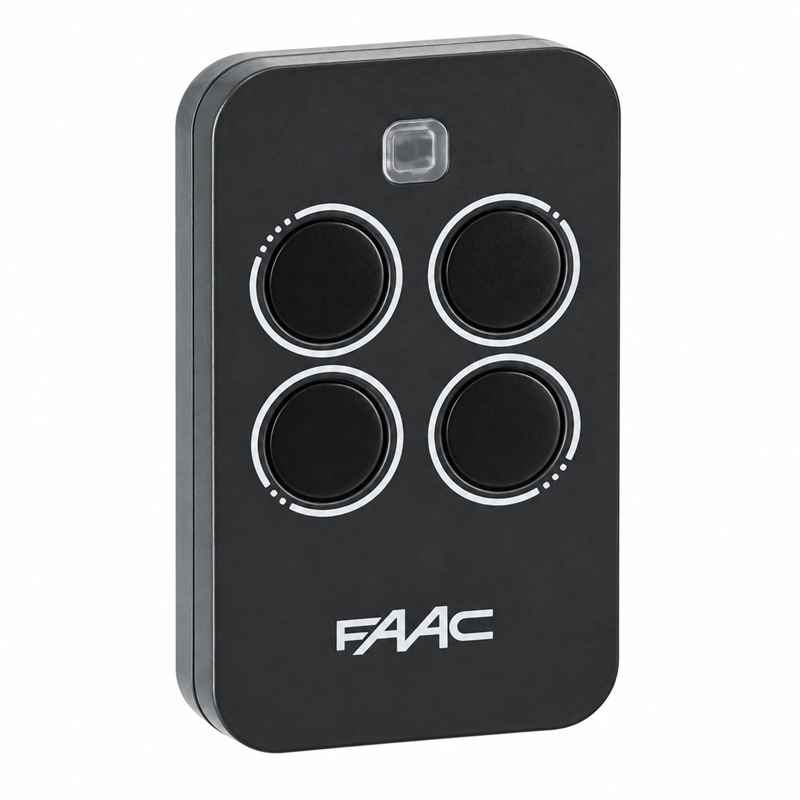

FAAC XT4 433 RC 4-Button Gate Remote Control
Price 80 AEDIn Stock
FAAC XT4 433 RC 4-Button Gate Remote Control UAE
FAAC XT4 433 RC is an original FAAC 4-button / 4-channel gate remote control transmitter designed for compatible FAAC automatic gate, garage door, parking barrier and radio receiver systems. Operating at 433.92 MHz, the XT4 433 RC uses FAAC RC rolling-code technology for secure and reliable wireless automation control.
Product code 787456, the FAAC XT4 433 RC provides four independent radio channels, allowing one transmitter to control multiple compatible automation functions. It is suitable as an additional or replacement remote for compatible FAAC systems throughout the UAE.
FAAC XT4 433 RC Key Features
- Original FAAC gate remote control
- Model: XT4 433 RC
- Product code: 787456
- 4 buttons / 4 channels
- Operating frequency: 433.92 MHz
- RC rolling-code technology
- RF power: 10 mW
- Battery: 23A alkaline
- Four independent automation commands
- Suitable for compatible FAAC receivers
- Suitable as a replacement or additional FAAC remote
- Designed for automatic vehicle and pedestrian entrances
FAAC XT4 433 RC Technical Specifications
| Brand | FAAC |
| Model | XT4 433 RC |
| Product Code / MPN | 787456 |
| Product Type | Gate Remote Control / Radio Transmitter |
| Number of Buttons | 4 |
| Number of Channels | 4 |
| Frequency | 433.92 MHz |
| Coding Technology | FAAC RC Rolling Code |
| RF Power | 10 mW |
| Battery | 23A Alkaline |
| Application | Automatic Gates, Garage Doors, Barriers & Compatible FAAC Automation |
4-Button FAAC Gate Remote Control
The FAAC XT4 433 RC provides four independent radio-control channels. Depending on the installed FAAC receiver and automation configuration, each button can be assigned to a different compatible function.
For example, the four buttons may be used for the main gate, pedestrian-opening command, a second automatic gate, garage door, parking barrier or another compatible FAAC receiver output.
433.92MHz FAAC RC Technology
The XT4 433 RC operates at 433.92 MHz and uses FAAC's RC rolling-code system. The transmitted code changes when the remote is used, and the compatible receiver recognizes valid transmitters stored in its memory.
This provides improved security compared with simple fixed-code transmitters.
FAAC XT4 433 RC Remote Programming
The XT4 433 RC must be stored in a compatible FAAC receiver before it can operate the automation system.
FAAC also provides a method for adding another XT4 433 RC without accessing the receiver directly when an already memorized transmitter is available. The exact procedure depends on the installed receiver and automation controller.
Adding a New FAAC XT4 433 RC
For compatible systems, FAAC specifies a transmitter-to-transmitter learning procedure using an already stored XT4 433 RC. The memorized transmitter is used to enable learning, after which the new remote can be registered to the required receiver channel.
Always follow the instructions for the installed FAAC receiver or control board before programming.
23A Alkaline Battery
The FAAC XT4 433 RC uses a 23A alkaline battery. This is an important difference from FAAC's XT 433 SLH LR remotes, which use CR2032 lithium batteries.
When replacing the battery, use the correct type and observe the polarity marked inside the transmitter.
FAAC XT4 433 RC vs XT 433 SLH LR
| Specification | XT4 433 RC | XT 433 SLH LR |
|---|---|---|
| Frequency | 433.92 MHz | 433.92 MHz |
| Coding | RC Rolling Code | SLH LR Self-Learning Hopping Code |
| Channels | 4 | 2 or 4 depending on model |
| Battery | 23A Alkaline | 2 × CR2032 |
Important: XT4 433 RC and XT 433 SLH LR operate at the same 433.92 MHz frequency but use different FAAC coding technologies. They should not be assumed to be interchangeable simply because the radio frequency is the same.
FAAC XT4 433 RC Compatible Applications
- FAAC sliding gate motors
- FAAC swing gate motors
- FAAC garage door automation
- FAAC parking gate barriers
- Automatic driveway gates
- Residential gate automation
- Commercial gate automation
- Compatible FAAC RC radio receivers
Replacement FAAC XT4 433 RC Remote
The XT4 433 RC is suitable as an additional or replacement remote where the installed FAAC automation system uses compatible RC technology.
Before ordering, verify the existing remote model and receiver. Matching 433.92 MHz frequency alone does not guarantee compatibility because FAAC also uses other coding systems such as SLH LR.
FAAC XT4 433 RC Remote Control UAE
We supply FAAC XT4 433 RC 4-button gate remote controls throughout the UAE for compatible FAAC automation systems.
Remote supply, programming assistance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm that your existing FAAC receiver uses RC technology. If you are unsure, send clear photos of the existing remote, receiver or gate control board so compatibility can be checked.
