FAAC 740 500 KG Sliding Gate Motor

FAAC 740 500 KG Automatic Sliding Gate Motor UAE

FAAC 740 is a professional 230V automatic sliding gate motor designed for residential sliding gates weighing up to 500 kg. Manufactured by FAAC, the 740 combines strong electromechanical construction, integrated electronic control, encoder-based obstacle detection and magnetic limit switches for reliable residential gate automation.

The FAAC 740 E Z16 provides a maximum gate speed of approximately 12 metres per minute and is suitable for sliding gate leaves up to 15 metres when correctly installed. Its non-reversing gearbox mechanically locks the gate when the motor is stopped, eliminating the need for an additional electric gate lock in normal installations.

FAAC 740 Key Features

• Original FAAC automatic sliding gate motor
• Model: 740 E Z16
• Maximum gate weight: 500 kg
• Maximum gate leaf width: 15 metres
• Power supply: 220–240V AC, 50/60Hz
• Motor type: Asynchronous single-phase
• Power consumption: 350W
• Maximum gate speed: 12 m/min
• Maximum torque: 18 Nm
• Maximum thrust force: 450N
• Integrated optical encoder
• Reverse function when an obstacle is detected
• Accurate management of slowdown and partial opening
• Electronic force adjustment via control board
• Magnetic limit switches
• Integrated FAAC 740D control board
• LCD display for simplified programming
• Non-reversing gearbox mechanically locks the gate
• Manual key release for emergency operation
• Protection rating: IP44
• Designed primarily for residential sliding gates

FAAC 740 Technical Specifications

500 KG Residential Sliding Gate Motor

The FAAC 740 is designed for residential sliding gates weighing up to 500 kg. It is particularly suitable for villas, private residences and residential driveway entrances requiring dependable everyday automatic gate operation.

Motor selection should not be based on gate weight alone. Gate length, wheel condition, track alignment, rack installation, wind resistance and daily operating frequency should also be considered before selecting the automation system.

230V Electromechanical Gate Operator

The FAAC 740 uses a reliable 230V asynchronous single-phase motor. The 740 E Z16 configuration provides approximately 350W maximum power, 18 Nm maximum torque and up to 450N thrust force.

This electromechanical design provides dependable operation for compatible residential sliding gates when the gate is correctly installed and moves freely along its track.

12 m/min Sliding Gate Speed

The FAAC 740 provides a maximum gate movement speed of approximately 12 metres per minute. Actual opening and closing time depends on the total travel distance and controller settings.

The integrated control system also manages slowdown during appropriate stages of gate movement, helping provide smoother stopping.

Integrated Encoder & Obstacle Detection

The FAAC 740 incorporates an optical encoder for monitoring gate movement. The encoder works with the electronic control system to provide reverse operation when an obstacle is detected.

The encoder also assists with accurate management of partial opening and slowdown. Correctly installed photocell sensors should still be used as part of a professional automatic gate safety system.

Magnetic Limit Switches

The FAAC 740 uses magnetic limit switches to determine the fully open and fully closed gate positions. Magnetic sensing provides reliable position detection without conventional mechanical microswitch activation.

Correct positioning of the limit-switch magnets is essential for accurate gate stopping and reliable automatic operation.

FAAC 740D Integrated Control Board

The FAAC 740 E is supplied with an integrated 740D electronic control board. The prewired control unit simplifies installation and provides convenient programming directly at the gate motor.

The 740D provides an onboard display that allows the installer to configure operating parameters and select appropriate gate operating logic.

Non-Reversing Gearmotor

The FAAC 740 uses a non-reversing reduction system. When the motor is not operating, the gearbox mechanically locks the sliding gate in position.

Because of this non-reversing design, FAAC states that an additional electric lock is normally not required for the sliding gate.

Manual Release During Power Failure

If mains power fails or the automation requires servicing, the FAAC 740 can be manually released using its key-protected release mechanism. Once released, the sliding gate can be opened or closed manually.

After power is restored, the operator should be correctly re-engaged before returning the gate to automatic operation.

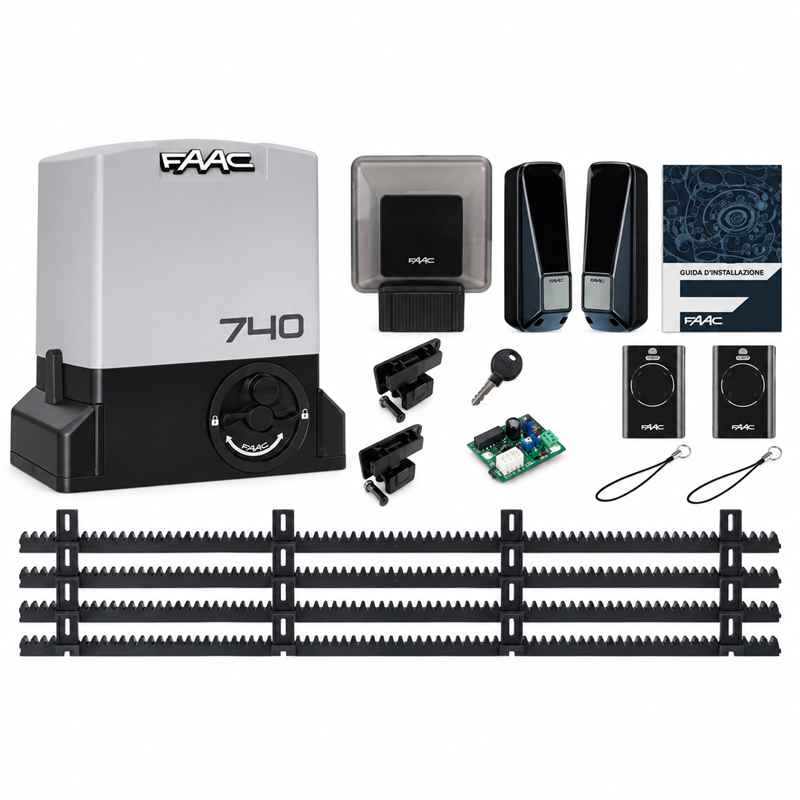

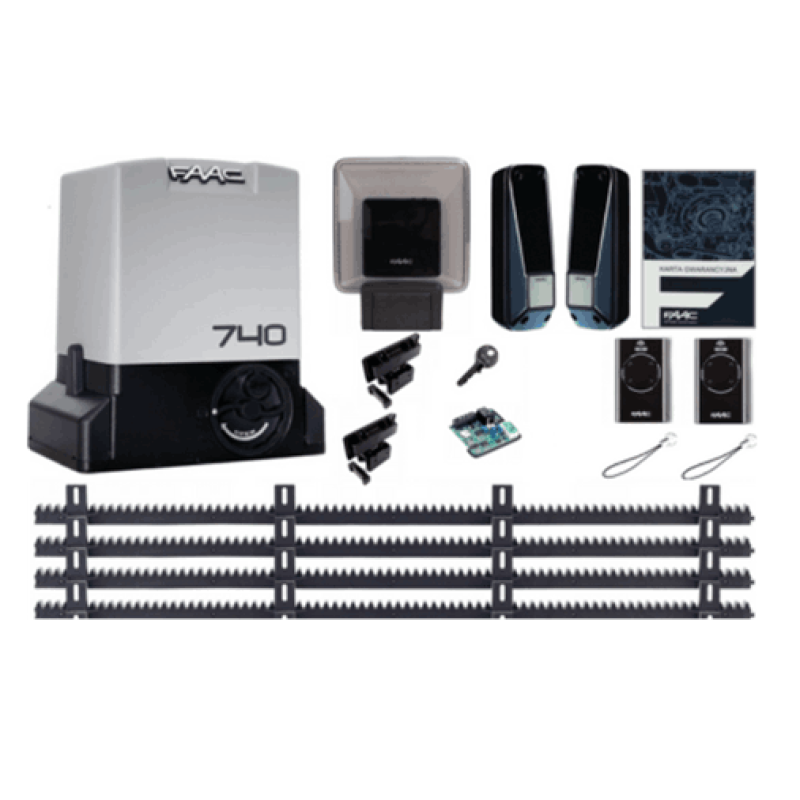

FAAC 740 500 KG Complete Gate Motor Kit

• 1 × FAAC 740 E Z16 500 KG sliding gate motor
• 1 × Integrated FAAC 740D electronic control unit
• 4 × 1 metre nylon gate racks
• 1 × FAAC RP 433 SLH plug-in receiver
• 1 × FAAC XT2 433 SLH LR remote control

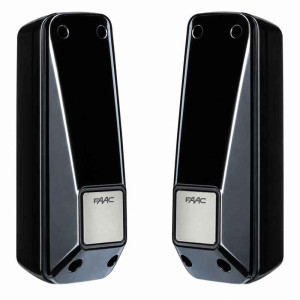

• 1 × Pair of FAAC XP 20D photocell safety sensors
• 1 × FAAC XLED flashing warning light
• 1 × Manual release lock with key
• 1 × Push button

FAAC 740 vs FAAC 741

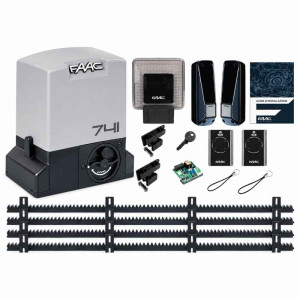

Choose the FAAC 740 for compatible residential sliding gates up to 500 kg. For a heavier sliding gate approaching 900 kg, the FAAC 741 is the higher-capacity model in the same operator family.

FAAC 740 Compatible Access Control

• FAAC remote controls
• FAAC XP 20D photocell sensors
• FAAC XLED flashing light
• GSM gate opener
• RFID access control
• Long-range UHF RFID vehicle access
• Access-control keypad
• Push button
• Intercom system
• Vehicle loop detector

FAAC 740 Sliding Gate Motor Applications

• Villa sliding gates
• Residential driveway gates
• Private property entrances
• Residential buildings
• Sliding gates up to 500 kg
• Compatible sliding gate leaves up to 15 metres

FAAC 740 500 KG Sliding Gate Motor UAE

We supply FAAC 740 500 KG sliding gate motors throughout the UAE for residential automatic sliding gate installations.

Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the approximate gate weight, gate length, wheel and track condition, daily operating frequency and required access-control accessories to ensure the FAAC 740 is suitable for your installation.
