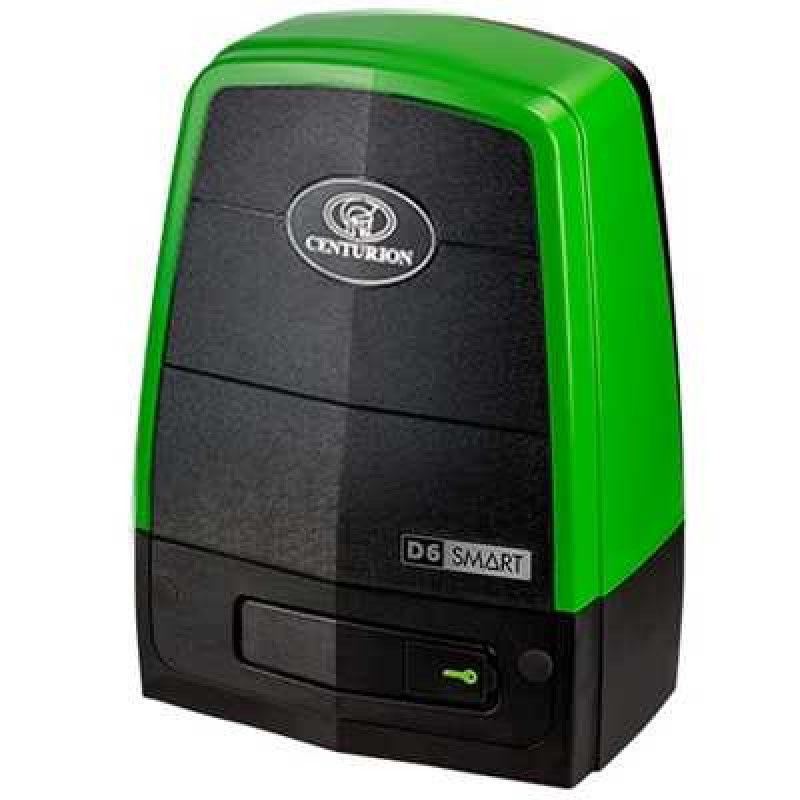

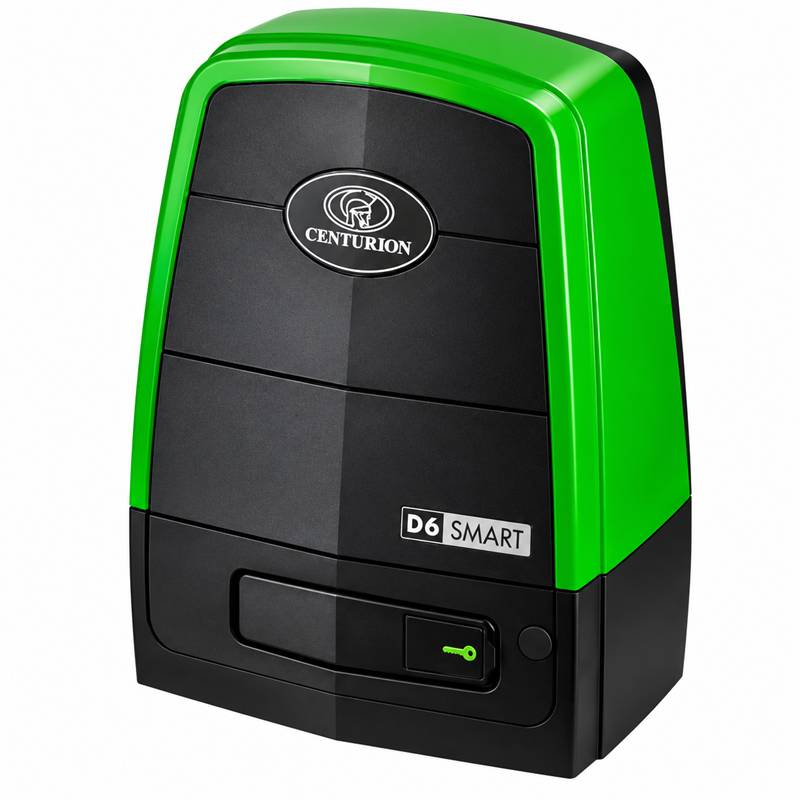

CENTURION D6 SMART 600 KG Sliding Gate Motor
Price 2,380 AEDIn Stock
CENTURION D6 SMART 600 KG Automatic Sliding Gate Motor UAE
CENTURION D6 SMART is an advanced 24V automatic sliding gate motor designed for gates weighing up to 600 kg. Combining high-speed gate movement, SMART wireless configuration, battery backup and advanced security features, the D6 SMART is suitable for residential villas, compounds, offices and compatible commercial sliding gate entrances.
The D6 SMART provides gate speeds of up to 35 metres per minute, supports up to 150 operations per day and features an onboard 433.92 MHz code-hopping multichannel receiver with storage capacity for up to 1,500 transmitter buttons. Its 24V battery-driven motor also allows continued gate operation during mains power failures when correctly configured with charged batteries.
CENTURION D6 SMART Key Features
- Original CENTURION D6 SMART sliding gate motor
- Maximum gate weight: 600 kg
- Maximum gate length: 100 m
- Motor voltage: 24V DC
- Battery-driven motor system
- Standard battery configuration: 2 × 12V batteries
- Maximum gate speed: 35 m/min at 17 kgf
- Maximum operations per day: 150
- Duty cycle with mains present: 50%
- Wireless smartphone setup and configuration
- Intelligent battery charger with onboard diagnostics
- Extended battery backup during power failures
- Electronic collision sensing
- Hall-effect position-control technology
- Onboard multichannel NOVA receiver
- Receiver frequency: 433.92 MHz
- Receiver capacity: 1,500 transmitter buttons
- Code-hopping radio technology
- Improved theft-deterrent cage
- Vibration sensor for compatible security integration
- Individually configurable inputs and outputs
- Lockable manual override with key release
- Protection rating: IP55
CENTURION D6 SMART Technical Specifications
| Brand | CENTURION |
| Model | D6 SMART |
| Product Type | Automatic Sliding Gate Motor |
| Maximum Gate Weight | 600 kg |
| Maximum Gate Length | 100 m |
| Input Voltage | 90–240V AC ±10% @ 50Hz |
| Mains Current Consumption | 200 mA |
| Motor Voltage | 24V DC |
| Motor Power Supply | Battery Driven – Standard 2 × 12V |
| Battery Charger Output | 1.3A |
| Motor Current at Rated Load | 13A |
| Starting Push Force | 30 kgf |
| Rated Push Force | 17 kgf |
| Maximum Gate Speed | 35 m/min @ 17 kgf |
| Maximum Operations per Day | 150 |
| Duty Cycle – Mains Present | 50% |
| Collision Sensing | Electronic |
| Manual Override | Lockable with Key Release |
| Receiver Type | Code-Hopping Multichannel Receiver |
| Receiver Frequency | 433.92 MHz |
| Receiver Capacity | 1,500 Transmitter Buttons |
| Protection Rating | IP55 |
| Operating Temperature | -15°C to +50°C |
| Packaged Weight | Approx. 9.1 kg excluding rack and batteries |
600 KG Automatic Sliding Gate Motor
The CENTURION D6 SMART is designed for automatic sliding gates weighing up to 600 kg. The increased 600 kg capacity makes it suitable for gates that require more capacity than the 500 kg D5 SMART while retaining CENTURION's fast SMART automation platform.
For correct motor selection, gate weight should be considered together with gate length, wheel condition, track alignment, rolling resistance and expected daily operating frequency.
High-Speed Gate Operation – Up to 35 m/min
The D6 SMART provides a maximum gate speed of approximately 35 metres per minute at the rated 17 kgf push force. High-speed opening can reduce waiting time when entering or leaving a property and provides convenient operation for frequently used vehicle entrances.
Actual gate speed varies according to gate load, mechanical resistance and system configuration.
24V Battery Backup Sliding Gate Motor
The CENTURION D6 SMART uses a 24V DC battery-driven motor system with a standard configuration using two 12V batteries. The batteries allow the motor to continue operating during a mains power failure when they are correctly installed, charged and maintained.
An intelligent 1.3A battery charger provides onboard diagnostics and SMART communication between the charger and controller.
D6 SMART Battery Backup Performance
With a compatible 2 × 7Ah battery configuration, the number of available standby operations depends on power-saving mode, battery condition, gate load and other installation factors.
| Standby Period | Power Saving | Normal |
|---|---|---|
| Half Day | 209 operations | 102 operations |
| Full Day | 183 operations | 79 operations |
Battery-backup figures are dependent on operating conditions and should not be treated as guaranteed performance for every installation.
SMART Smartphone Setup & Configuration
The CENTURION D6 SMART supports wireless setup and configuration from a compatible smartphone. This simplifies professional commissioning and provides convenient access to automation settings and diagnostic information.
The SMART platform makes setup easier compared with older gate automation systems that require all parameters to be configured directly from the controller.
Built-In 433.92MHz NOVA Receiver
The D6 SMART incorporates a 433.92 MHz code-hopping multichannel receiver with selective transmitter addition and deletion.
The onboard receiver supports up to 1,500 transmitter buttons, providing substantial user capacity for residential compounds, buildings and compatible commercial access applications.
Electronic Collision Sensing
The D6 SMART includes electronic collision sensing to detect abnormal resistance while the sliding gate is moving. This forms part of the automation's obstruction-management and safety functionality.
Suitable photocell safety sensors and other required safety devices should also be installed according to the gate configuration and site requirements.
Hall-Effect Position Control
The improved position-control system incorporates Hall-effect technology designed to provide accurate gate-position monitoring with high resistance to electrical interference.
This technology helps the controller accurately manage the gate's movement and operating positions.
Advanced Theft-Deterrent Protection
The CENTURION D6 SMART features an improved theft-deterrent cage designed to provide additional physical security for the motor installation.
A built-in vibration sensor can also be connected to a compatible third-party device to provide a notification or security response if tampering with the gate motor is detected.
Manual Override with Key Release
The D6 SMART includes a convenient lockable manual override with key release. If manual gate operation is required, the motor can be disengaged so the gate can be moved manually.

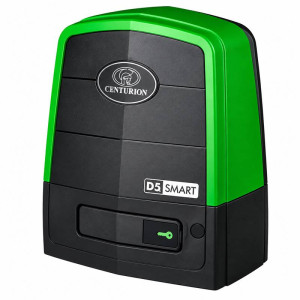

CENTURION D5 SMART vs D6 SMART
| Specification | D5 SMART | D6 SMART |
|---|---|---|
| Maximum Gate Weight | 500 kg | 600 kg |
| Motor Voltage | 24V DC | 24V DC |
| Maximum Speed | 35 m/min | 35 m/min |
| Maximum Operations / Day | 150 | 150 |
| Duty Cycle | 50% | 50% |
| Receiver Capacity | 1,500 buttons | 1,500 buttons |
| Protection | IP55 | IP55 |
CENTURION D6 SMART Applications
- Villa sliding gates
- Residential driveway gates
- Residential compounds
- Apartment building entrances
- Office entrances
- Commercial properties
- Sliding gates weighing up to 600 kg
CENTURION D6 SMART Access Control Options
- CENTURION NOVA remote controls
- Photocell safety sensors
- GSM gate opener
- RFID access control
- Long-range UHF RFID vehicle access
- Keypad access control
- Push button
- Intercom system
- Vehicle loop detector
CENTURION D6 SMART Sliding Gate Motor UAE
We supply CENTURION D6 SMART 600 KG sliding gate motors throughout the UAE for residential and compatible commercial automatic sliding gate applications.
Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm the gate weight, gate length, track and wheel condition, expected daily usage and required access-control accessories to ensure the CENTURION D6 SMART is suitable for your installation.
