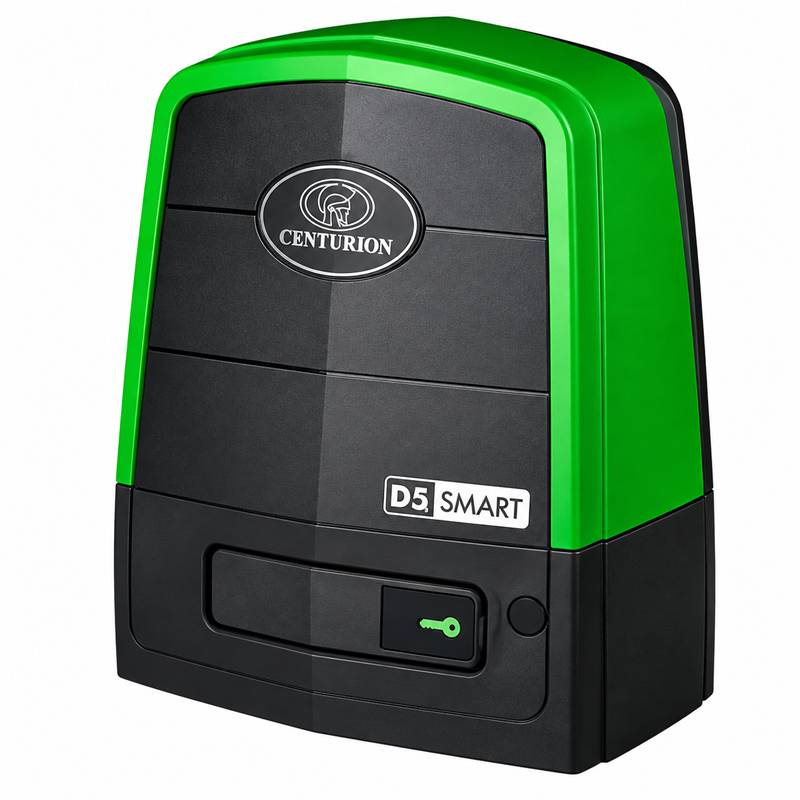

CENTURION D5 SMART 500 KG Sliding Gate Motor
Price 1,750 AEDIn Stock
CENTURION D5 SMART 500 KG Automatic Sliding Gate Motor UAE
CENTURION D5 SMART is an advanced 24V automatic sliding gate motor designed for residential and light-commercial sliding gates weighing up to 500 kg. Combining CENTURION's SMART technology, fast gate movement, battery backup and intelligent security features, the D5 SMART is an excellent automation solution for villas, residential compounds, offices and compatible commercial entrances.
The D5 SMART provides a gate speed of up to 35 metres per minute, supports up to 150 operations per day and includes an onboard 433.92 MHz code-hopping multichannel receiver with memory for up to 1,500 transmitter buttons. Setup and configuration can also be performed wirelessly using a compatible smartphone and CENTURION SMART technology.
CENTURION D5 SMART Key Features
- Original CENTURION D5 SMART sliding gate motor
- Maximum gate weight: 500 kg
- Motor voltage: 24V DC
- Fast gate speed: up to 35 m/min
- Maximum operations per day: 150
- Duty cycle with mains present: 50%
- Wireless smartphone setup and configuration
- Battery-driven motor system
- Extended operation during mains power failure
- Intelligent battery charger with onboard diagnostics
- Onboard multichannel NOVA receiver
- Receiver capacity: 1,500 transmitter buttons
- Receiver frequency: 433.92 MHz
- Code-hopping radio technology
- Electronic collision sensing
- Hall-effect position control technology
- Configurable inputs and outputs
- Improved theft-deterrent cage design
- Vibration sensor for compatible security integration
- Lockable manual override with key release
- Protection rating: IP55
CENTURION D5 SMART Technical Specifications
| Brand | CENTURION |
| Model | D5 SMART |
| Product Type | Automatic Sliding Gate Motor |
| Maximum Gate Weight | 500 kg |
| Maximum Gate Length | 100 m |
| Input Voltage | 90–240V AC ±10%, 50Hz |
| Motor Voltage | 24V DC |
| Motor Power Supply | Battery Driven – Standard 2 × 12V Batteries |
| Mains Current Consumption | 200 mA |
| Battery Charger Output | 1.3A |
| Motor Current at Rated Load | 13A |
| Starting Push Force | 30 kgf |
| Rated Push Force | 17 kgf |
| Maximum Gate Speed | 35 m/min @ 17 kgf |
| Maximum Operations per Day | 150 |
| Duty Cycle – Mains Present | 50% |
| Collision Detection | Electronic |
| Manual Override | Lockable Key Release |
| Receiver Type | Code-Hopping Multichannel Receiver |
| Receiver Frequency | 433.92 MHz |
| Receiver Capacity | 1,500 Transmitter Buttons |
| Protection Rating | IP55 |
| Operating Temperature | -15°C to +50°C |
500 KG Automatic Sliding Gate Motor
The CENTURION D5 SMART is designed for sliding gates weighing up to 500 kg. It is particularly suitable for residential villas, private properties, compounds, offices and compatible light-commercial entrances requiring fast and reliable automatic gate operation.
Motor selection should not be based on gate weight alone. Gate length, wheel condition, track alignment, operating frequency and environmental conditions should also be considered before installation.
Fast Sliding Gate Speed – Up to 35 m/min
The D5 SMART can move a correctly installed sliding gate at speeds of up to 35 metres per minute at the rated 17 kgf push force. Fast opening helps reduce the time a vehicle waits outside a property and provides convenient everyday access.
The actual operating speed can vary according to gate weight, resistance, setup and operating conditions.
24V DC Battery Backup Gate Motor
The CENTURION D5 SMART uses a 24V DC battery-driven motor system. The standard configuration uses two 12V batteries, allowing the gate automation to continue operating during a mains power failure when the batteries are correctly installed, charged and maintained.
The intelligent charging system provides battery diagnostics and communication between the charger and controller for improved system monitoring.
SMART Smartphone Setup & Configuration
One of the major advantages of the D5 SMART compared with older CENTURION gate motors is its SMART configuration technology. Compatible smartphone setup allows installers to configure and commission the gate automation wirelessly.
This provides easier access to operating parameters and diagnostics during professional installation and maintenance.
Built-In 433.92MHz NOVA Receiver
The CENTURION D5 SMART includes an onboard 433.92 MHz code-hopping multichannel receiver with selective transmitter addition and deletion.
The receiver can store up to 1,500 transmitter buttons, providing significantly more radio-user capacity than older residential gate motor platforms.
Electronic Collision Detection
The D5 SMART features electronic collision sensing to detect abnormal resistance while the gate is moving. This forms part of the motor's safety and obstruction-management system.
For a complete automatic gate installation, suitable photocell safety sensors and other safety devices should be installed according to the site requirements.
Advanced Position Control
The D5 SMART incorporates an improved position-control system using Hall-effect technology. This provides accurate gate-position monitoring while offering improved resistance to electrical interference.
Theft-Deterrent Security Design
CENTURION designed the D5 SMART with an improved theft-deterrent cage to provide additional physical protection for the gate motor.
The system also incorporates a vibration sensor that can be connected to compatible third-party security equipment to provide notification or alarm functionality if the gate motor is being tampered with.
Manual Override with Key Release
If manual operation is required, the CENTURION D5 SMART provides a convenient lockable key-release manual override. This allows the sliding gate to be disengaged from the motor and moved manually when necessary.
CENTURION D5 SMART Applications
- Residential villa sliding gates
- Private driveway gates
- Residential compounds
- Office entrances
- Apartment and building entrances
- Light-commercial sliding gates
- Sliding gates weighing up to 500 kg
CENTURION D5 SMART Access Control Options
The D5 SMART can be integrated with compatible gate automation and access-control accessories depending on the project requirements.
- CENTURION NOVA remote controls
- Photocell safety sensors
- GSM gate opener
- Wi-Fi or smart access systems
- RFID access control
- Long-range UHF RFID vehicle access
- Keypad access control
- Push button
- Intercom systems
- Vehicle loop detector
CENTURION D5 SMART vs D5 EVO
| Feature | D5 SMART | D5 EVO |
|---|---|---|
| Maximum Gate Weight | 500 kg | 500 kg |
| Maximum Speed | Up to 35 m/min | Up to approx. 22 m/min |
| Maximum Daily Operations | 150 | 150 |
| Smartphone Configuration | Yes | No |
| Receiver Capacity | 1,500 buttons | 500 buttons |
| Protection Rating | IP55 | Check installed version |
CENTURION D5 SMART Sliding Gate Motor UAE
We supply CENTURION D5 SMART 500 KG sliding gate motors throughout the UAE for residential and light-commercial automatic sliding gate applications.
Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm the sliding gate weight, gate length, track and wheel condition, daily operating frequency and required access-control accessories to ensure the D5 SMART is suitable for your installation.
