CENTURION D10 SMART 1000 KG Sliding Gate Motor
Price 2,650 AEDIn Stock

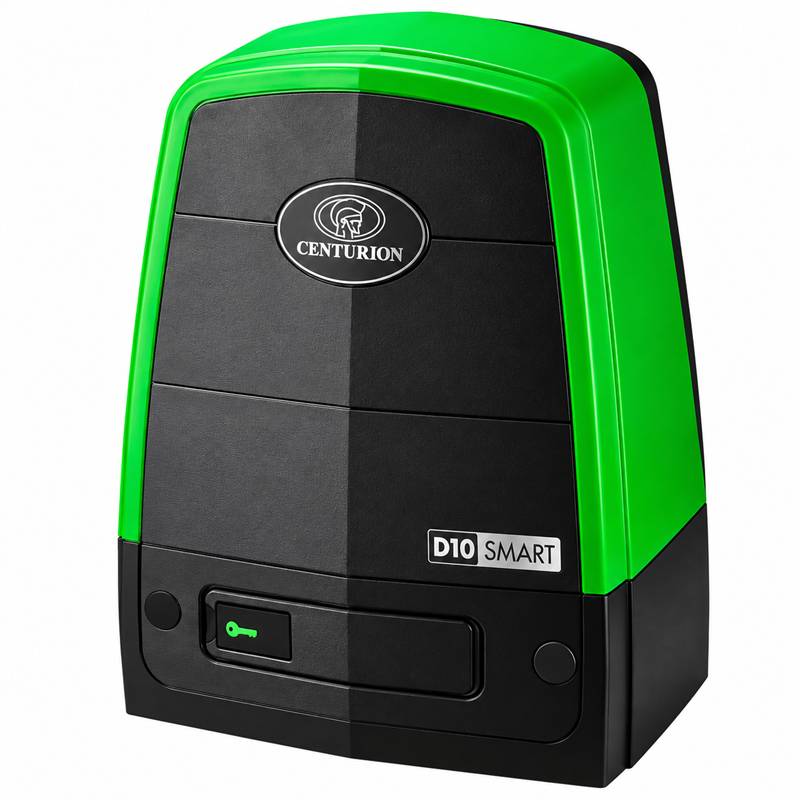

CENTURION D10 SMART 1000 KG Heavy-Duty Sliding Gate Motor UAE
CENTURION D10 SMART is a powerful heavy-duty automatic sliding gate motor designed for commercial and industrial sliding gates weighing up to 1000 kg. Built for demanding vehicle entrances, the D10 SMART combines a robust die-cast aluminium gearbox, powerful 24V DC motor, battery backup and CENTURION SMART technology for advanced configuration, diagnostics and access-control integration.
The D10 SMART supports gates up to 50 metres long, provides speeds of up to 26 metres per minute and is rated for up to 750 operations per day under specified operating conditions. With a 45% duty cycle, 40 kgf starting push force and integrated battery backup, it is an excellent choice for apartment complexes, commercial properties, warehouses, factories, office parks and industrial vehicle entrances.
CENTURION D10 SMART Key Features
- Original CENTURION D10 SMART sliding gate motor
- Heavy-duty commercial and industrial gate operator
- Maximum gate weight: 1000 kg / 1 ton
- Maximum gate length: 50 metres
- Motor voltage: 24V DC
- Battery-driven motor system
- Standard battery capacity: 2 × 12V 7.2Ah batteries
- Maximum gate speed: up to 26 m/min
- Maximum operations per day: 750
- Duty cycle with mains present: 45%
- Starting push force: 40 kgf
- Rated push force: 30 kgf
- SMART configuration and diagnostics
- 24V battery backup during mains power failure
- Electronic collision sensing
- Hall Effect position-control technology
- Built-in code-hopping multichannel receiver
- Receiver frequency: 433.92 MHz
- Receiver capacity: 1,500 remotes
- Intelligent theft and break-in protection
- Integral vibration sensor
- Patented theft-deterrent cage
- Lockable manual override with key release
- Protection rating: IP54
CENTURION D10 SMART Technical Specifications
| Brand | CENTURION |
| Model | D10 SMART |
| Product Type | Heavy-Duty Automatic Sliding Gate Motor |
| Application | Commercial & Industrial Sliding Gates |
| Maximum Gate Weight | 1000 kg / 1 Ton |
| Maximum Gate Length | 50 m |
| Input Voltage | 110–240V AC, 50/60Hz |
| Mains Current Consumption | 590 mA |
| Motor Voltage | 24V DC |
| Motor Power Supply | Battery Driven |
| Standard Batteries | 2 × 12V 7.2Ah |
| Battery Charger Output | 1.8A @ 27.6V |
| Motor Current at Rated Load | 8A |
| Starting Push Force | 40 kgf |
| Rated Push Force | 30 kgf |
| Maximum Gate Speed | Up to 26 m/min |
| Maximum Operations per Day | 750 |
| Duty Cycle – Mains Present | 45% |
| Drive Pinion | 17T Module 4 |
| Collision Sensing | Electronic |
| Manual Override | Lockable with Key Release |
| Receiver Type | Code-Hopping Multichannel Receiver |
| Receiver Frequency | 433.92 MHz |
| Receiver Capacity | 1,500 Remotes |
| Protection Rating | IP54 |
| Operating Temperature | -15°C to +50°C |
| Packaged Weight | Approx. 13 kg excluding rack and batteries |
1000 KG Heavy-Duty Sliding Gate Motor
The CENTURION D10 SMART is engineered for sliding gates weighing up to 1000 kg, making it suitable for demanding commercial and industrial gate automation applications.
Unlike smaller residential operators, the D10 SMART is designed specifically for installations requiring increased gate capacity, higher daily operating frequency and greater push force. It is suitable for apartment complexes, commercial premises, warehouses, factories, office parks and other busy vehicle entrances.
Up to 750 Gate Operations Per Day
The D10 SMART is designed for high-volume access applications and is rated for up to 750 gate operations per day under the manufacturer's specified operating conditions.
This makes the D10 SMART particularly suitable for entrances where a residential-class sliding gate motor may not provide sufficient operating capacity.
Fast Gate Speed – Up to 26 m/min
The CENTURION D10 SMART provides an adjustable gate speed of up to 26 metres per minute. Opening and closing speeds can be configured according to the requirements of the installation.
Actual gate speed depends on gate weight, mechanical resistance, force settings and installation conditions.
Powerful 40 kgf Starting Push Force
The D10 SMART provides a maximum starting push force of 40 kgf and a rated running push force of 30 kgf, giving the operator the strength required for heavy sliding gate applications.
The gate should still move freely by hand before automation. A powerful motor should never be used to compensate for damaged wheels, poor track alignment or excessive mechanical resistance.
24V DC Battery Backup Gate Motor
The CENTURION D10 SMART uses a powerful 24V DC battery-driven motor system. The standard configuration accommodates two 12V 7.2Ah batteries, providing continued operation during mains power failures when the batteries are correctly installed and maintained.
A switch-mode battery charger keeps the batteries charged while mains power is available, providing critical power-failure protection for commercial and industrial entrances.
D10 SMART Battery Backup Performance
With standard compatible batteries, standby operation depends on gate load, operating speed, battery condition, power-saving settings and the length of the mains power failure.
| Standby Period | Power Saving Mode | Normal Mode |
|---|---|---|
| Half Day | 118 operations | 63 operations |
| Full Day | 93 operations | 50 operations |
These figures are manufacturer reference values under specified test conditions. Actual battery-backup performance varies according to the gate and installation.
CENTURION SMART Configuration & Diagnostics
The D10 SMART incorporates CENTURION SMART technology to simplify professional installation, configuration and diagnostics.
Installers can access advanced setup functions, diagnostics and system information through compatible CENTURION SMART tools, making commissioning and troubleshooting more convenient than with conventional gate controllers.
Built-In 433.92MHz Receiver
The D10 SMART incorporates a 433.92 MHz code-hopping multichannel receiver with selective transmitter addition and deletion.
The onboard receiver can store up to 1,500 remotes, making the D10 SMART particularly useful for residential compounds, commercial buildings, staff parking facilities and other multi-user vehicle access applications.
Electronic Collision Detection
The D10 SMART includes electronic collision sensing to detect abnormal resistance during gate movement. This forms part of the operator's obstruction-management and safety functionality.
Suitable photocell safety sensors and other required safety equipment should also be installed according to the entrance design and site requirements.
Hall Effect Position Control
CENTURION uses Hall Effect technology for accurate and reliable gate-position control. This enables the controller to monitor gate movement and position while providing reliable operation in demanding automation environments.
Heavy-Duty Die-Cast Aluminium Gearbox
The D10 SMART features a robust die-cast aluminium gearbox coupled to a high-torque 24V DC motor. The sealed gearbox is designed to provide reliable performance for high-volume commercial and industrial gate automation.
Advanced Theft & Tamper Protection
The CENTURION D10 SMART incorporates an integral vibration sensor and patented theft-deterrent cage to provide additional protection against motor theft and tampering.
These security features make the D10 SMART particularly suitable for commercial and industrial sites where equipment security is an important consideration.
Lockable Manual Override
The D10 SMART includes a secure lockable manual override with key release. This allows the motor to be disengaged when manual gate operation is required.
CENTURION D10 SMART Applications
- Industrial sliding gates
- Commercial sliding gates
- Apartment and residential complexes
- Office parks
- Warehouse entrances
- Factory entrances
- Staff parking entrances
- Commercial vehicle access points
- Heavy sliding gates up to 1000 kg
- High-traffic automatic gate entrances
CENTURION D10 SMART Access Control Options
The D10 SMART can be integrated with a wide range of compatible vehicle access-control and safety accessories.
- CENTURION NOVA remote controls
- Photocell safety sensors
- GSM gate opener
- RFID access-control systems
- Long-range UHF RFID vehicle readers
- Access-control keypads
- Push buttons
- Intercom systems
- Vehicle loop detectors
- Wi-Fi and smart access systems
CENTURION D6 SMART vs D10 SMART
| Specification | D6 SMART | D10 SMART |
|---|---|---|
| Maximum Gate Weight | 600 kg | 1000 kg |
| Application | Residential / Commercial | Commercial / Industrial |
| Maximum Gate Length | 100 m | 50 m |
| Maximum Speed | 35 m/min | 26 m/min |
| Maximum Operations / Day | 150 | 750 |
| Starting Push Force | 30 kgf | 40 kgf |
| Rated Push Force | 17 kgf | 30 kgf |
| D10 Duty Cycle | — | 45% |
CENTURION D10 SMART Sliding Gate Motor UAE
We supply CENTURION D10 SMART 1000 KG sliding gate motors throughout the UAE for heavy-duty commercial and industrial automatic sliding gate applications.
Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm the gate weight, gate length, track and wheel condition, daily operating frequency and required access-control accessories to ensure the CENTURION D10 SMART is correctly specified for your installation.
