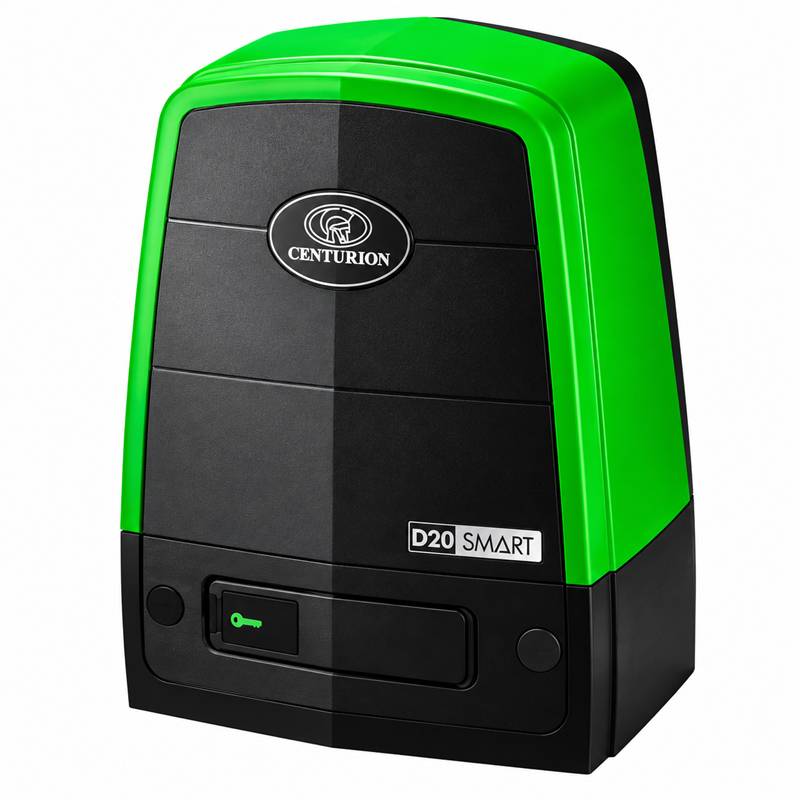

CENTURION D20 SMART 2000 KG Sliding Gate Motor
Price 3,650 AEDIn Stock
CENTURION D20 SMART 2000 KG Industrial Sliding Gate Motor UAE
CENTURION D20 SMART is a powerful industrial automatic sliding gate motor designed for heavy gates weighing up to 2000 kg / 2 tons. Built for demanding commercial and industrial entrances, the D20 SMART combines a robust 24V DC battery-driven motor system, high push force, SMART configuration technology and reliable backup operation during mains power failures.
The D20 SMART supports sliding gates up to 25 metres long, provides speeds of up to 18 metres per minute and is rated for up to 750 operations per day under the manufacturer's specified operating conditions. With a 45% duty cycle, 52 kgf starting force and 39 kgf rated force, it is suitable for factories, warehouses, logistics facilities, industrial compounds and other heavy vehicle access applications.
CENTURION D20 SMART Key Features
- Original CENTURION D20 SMART industrial sliding gate motor
- Maximum gate weight: 2000 kg / 2 tons
- Maximum gate length: 25 metres
- Motor voltage: 24V DC
- Battery-driven motor system
- Standard battery capacity: 2 × 12V 7.2Ah batteries
- Maximum gate speed: up to 18 m/min
- Maximum operations per day: 750
- Duty cycle with mains present: 45%
- Starting push force: 52 kgf
- Rated push force: 39 kgf
- SMART setup and diagnostics
- Electronic collision sensing
- Lockable manual override with key release
- Built-in CENTURION rolling-code multichannel receiver
- Receiver frequency: 433.92 MHz
- Receiver capacity: 1,500 remotes
- Drive pinion: 13T Module 4
- Protection rating: IP54
- Operating temperature: -15°C to +50°C
CENTURION D20 SMART Technical Specifications
| Brand | CENTURION |
| Model | D20 SMART |
| Product Type | Industrial Automatic Sliding Gate Motor |
| Maximum Gate Weight | 2000 kg / 2 Tons |
| Maximum Gate Length | 25 m |
| Input Voltage | 110–240V AC, 50/60Hz |
| Mains Current Consumption | 590 mA |
| Motor Voltage | 24V DC |
| Motor Power Supply | Battery Driven |
| Standard Batteries | 2 × 12V 7.2Ah |
| Battery Charger Output | 1.8A @ 27.6V |
| Motor Current at Rated Load | 9A |
| Starting Push Force | 52 kgf |
| Rated Push Force | 39 kgf |
| Maximum Gate Speed | Up to 18 m/min |
| Maximum Operations per Day | 750 |
| Duty Cycle – Mains Present | 45% |
| Drive Pinion | 13T Module 4 |
| Collision Sensing | Electronic |
| Manual Override | Lockable Lever with Key Release |
| Receiver Type | CENTURION Rolling Code – Keelog Encryption – Multichannel |
| Receiver Frequency | 433.92 MHz |
| Receiver Capacity | 1,500 Remotes |
| Protection Rating | IP54 |
| Operating Temperature | -15°C to +50°C |
| Packaged Weight | Approx. 13 kg excluding rack and batteries |
2000 KG Industrial Sliding Gate Motor
The CENTURION D20 SMART is designed for very heavy sliding gates weighing up to 2000 kg. Its 2-ton capacity makes it suitable for demanding industrial and commercial entrances where standard residential or light-commercial operators are not powerful enough.
Typical applications include factory gates, warehouse entrances, logistics facilities, industrial compounds, commercial yards and heavy vehicle access points.
Up to 750 Operations Per Day
The D20 SMART is rated for up to 750 gate operations per day under the manufacturer's specified operating conditions. This high daily operating capacity makes it suitable for frequently used industrial entrances.
The duty cycle with mains present is approximately 45%, providing strong performance for high-traffic gate automation.
Strong 52 kgf Starting Push Force
The D20 SMART provides up to 52 kgf starting push force and approximately 39 kgf rated running force. This higher force capability allows the motor to automate gates substantially heavier than the D10 SMART.
The gate must still move freely by hand before automation. A powerful motor should never be used to compensate for damaged wheels, poor track alignment or excessive mechanical resistance.
Gate Speed Up to 18 m/min
The CENTURION D20 SMART provides speeds of up to approximately 18 metres per minute. Speed can be configured slower according to installation requirements and gate conditions.
Actual performance depends on gate load, push-force settings, track condition and mechanical resistance.
24V Battery Backup Industrial Gate Motor
The D20 SMART uses a 24V DC battery-driven motor system. The standard configuration uses two 12V 7.2Ah batteries, allowing the gate to continue operating during mains power failures when the batteries are correctly installed and maintained.
The charger provides approximately 1.8A at 27.6V and supports battery operation during outages.
D20 SMART Battery Backup Performance
With standard 2 × 7.2Ah batteries, manufacturer reference values show approximately:
| Standby Period | Power Saving | Normal Mode |
|---|---|---|
| Half Day | 101 operations | 55 operations |
| Full Day | 80 operations | 45 operations |
Actual battery performance depends on gate weight, gate length, speed, force settings, battery age, temperature and operating conditions.
SMART Configuration & Diagnostics
The CENTURION D20 SMART includes CENTURION SMART technology for easier commissioning, setup and diagnostics. Professional installers can configure operating parameters and access diagnostic information using compatible SMART tools.
Built-In 433.92MHz Receiver
The D20 SMART incorporates a 433.92 MHz CENTURION rolling-code multichannel receiver using Keelog encryption.
The onboard receiver stores up to 1,500 remotes, making the system suitable for industrial sites, staff parking entrances and multi-user commercial vehicle access systems.
Electronic Collision Detection
The D20 SMART features electronic collision sensing to detect abnormal resistance during gate movement.
For a complete industrial gate installation, suitable photocell sensors, safety edges and other safety equipment should also be used according to the site risk assessment and gate configuration.
13T Module 4 Drive Pinion
The CENTURION D20 SMART uses a 13-tooth Module 4 drive pinion. The sliding gate rack must therefore be compatible with Module 4 gearing and correctly aligned with the motor.
For a 2-ton industrial gate, rack quality, gate wheels, track condition and gate alignment are especially important.
Lockable Manual Override
The D20 SMART includes a lockable manual override lever with key release. This allows the gate motor to be disengaged when manual operation is required.
CENTURION D20 SMART Applications
- Industrial sliding gates
- Factory entrances
- Warehouse gates
- Logistics centres
- Industrial compounds
- Commercial yards
- Staff and fleet parking entrances
- Heavy vehicle access gates
- Sliding gates weighing up to 2000 kg
- High-traffic automatic entrances
CENTURION D10 SMART vs D20 SMART
| Specification | D10 SMART | D20 SMART |
|---|---|---|
| Maximum Gate Weight | 1000 kg | 2000 kg |
| Maximum Gate Length | 50 m | 25 m |
| Maximum Speed | 26 m/min | 18 m/min |
| Maximum Operations / Day | 750 | 750 |
| Starting Push Force | 40 kgf | 52 kgf |
| Rated Push Force | 30 kgf | 39 kgf |
| Drive Pinion | 17T Module 4 | 13T Module 4 |
| Protection | IP54 | IP54 |
CENTURION D20 SMART Sliding Gate Motor UAE
We supply CENTURION D20 SMART 2000 KG sliding gate motors throughout the UAE for heavy commercial and industrial automatic sliding gate applications.
Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm the gate weight, gate length, rack type, track and wheel condition, daily operating frequency and required safety or access-control accessories to ensure the CENTURION D20 SMART is correctly specified for your installation.
