CAME ATI A5000 5M Swing Gate Motor
Price 5,000 AEDIn Stock
CAME ATI A5000 5M 230V Automatic Swing Gate Motor UAE
CAME ATI A5000 5M 230V Automatic Swing Gate Motor UAE
CAME ATI A5000 is a professional 230V electromechanical swing gate motor designed for large residential swing gates with leaves up to 5 metres. Product code 001A5000, this irreversible linear gate operator can handle a gate leaf weighing up to 400 kg at 5 metres, with higher permissible weights when used on shorter gate leaves.
The CAME ATI A5000 combines a powerful 260W 230V motor, adjustable opening limit-switch microswitch, thrust up to 4000N and robust linear-drive construction. It is suitable for villas, residential buildings, compounds and other compatible automatic swing gate installations throughout the UAE.
CAME ATI A5000 Key Features
- Original CAME ATI swing gate automation
- Model: A5000
- Product code: 001A5000
- Irreversible electromechanical linear operator
- Motor power supply: 230V AC 50/60Hz
- Maximum gate leaf length: 5 metres
- Maximum weight at 5 m: 400 kg
- Maximum weight at 4 m: 500 kg
- Maximum weight at 3 m: 600 kg
- Maximum weight at 2.5 m: 800 kg
- Maximum weight at 2 m: 1,000 kg
- Motor power: 260W
- Current absorption: 1.2A
- Thrust: 400–4000N
- Opening limit-switch microswitch
- 90° manoeuvre time: 30–40 seconds
- Operating capacity: 15 cycles/hour
- Maximum leaf opening: 120°
- Protection rating: IP44
- Operating temperature: -20°C to +55°C
- Motor thermal protection: 150°C
CAME ATI A5000 Technical Specifications
| Brand | CAME |
| Series | ATI |
| Model | A5000 |
| Product Code / MPN | 001A5000 |
| Operator Type | Irreversible Electromechanical Linear Swing Gate Operator |
| Motor Power Supply | 230V AC – 50/60Hz |
| Power | 260W |
| Current Absorption | 1.2A |
| Maximum Leaf Length | 5 m |
| Maximum Weight at 5 m | 400 kg |
| Maximum Weight at 4 m | 500 kg |
| Maximum Weight at 3 m | 600 kg |
| Maximum Weight at 2.5 m | 800 kg |
| Maximum Weight at 2 m | 1,000 kg |
| Maximum Opening Angle | 120° |
| 90° Manoeuvre Time | 30–40 sec |
| Cycles per Hour | 15 |
| Thrust | 400–4000N |
| Limit Switch | Opening Limit-Switch Microswitch |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +55°C |
| Motor Thermal Protection | 150°C |
CAME ATI A5000 Gate Weight & Leaf Length
The maximum gate weight of the CAME ATI A5000 depends on the length of each individual gate leaf. CAME specifies the following operating limits:
| Gate Leaf Length | Maximum Leaf Weight |
|---|---|
| 5 metres | 400 kg |
| 4 metres | 500 kg |
| 3 metres | 600 kg |
| 2.5 metres | 800 kg |
| 2 metres | 1,000 kg |
Important: These figures apply to each gate leaf. Gate condition, hinge geometry, wind exposure and installation dimensions must also be considered when selecting the operator.
5 Metre CAME Swing Gate Motor
The CAME ATI A5000 is specifically designed for longer swing gates and supports leaves up to 5 metres. At the full 5 metre leaf length, CAME specifies a maximum leaf weight of 400 kg.
This makes the A5000 suitable for large villa entrances, residential compounds, apartment buildings and other properties requiring long-leaf automatic swing gate operation.
230V CAME ATI Gate Operator
The A5000 uses a 230V AC electromechanical motor rated at 260W with approximately 1.2A current absorption.
The motor provides adjustable thrust from approximately 400N to 4000N and is designed as an irreversible operator for automatic swing gate applications.
Opening Limit-Switch Microswitch
The standard CAME A5000 is equipped with an opening limit-switch microswitch. This enables the installer to set the opening end position during gate commissioning.
If opening and closing limit-switch microswitches are required, CAME offers the A5000A version. A5000 and A5000A are separate models and should not be confused.
30–40 Second Manoeuvre Time
CAME specifies a 90° manoeuvre time of approximately 30–40 seconds for the A5000. The actual opening and closing time depends on the installation geometry and gate configuration.
Up to 120° Gate Opening
The CAME ATI A5000 supports gate opening angles up to approximately 120° when the actuator is installed using the appropriate mounting dimensions.
For a 90° opening, CAME specifies mounting dimensions of approximately A = 200 mm and B = 200 mm. For a 120° opening, the installation geometry changes, so correct bracket positioning is important.
15 Cycles Per Hour
The CAME ATI A5000 is rated at approximately 15 cycles per hour. It is therefore primarily suitable for residential and compatible apartment-building applications rather than very high-frequency industrial traffic.

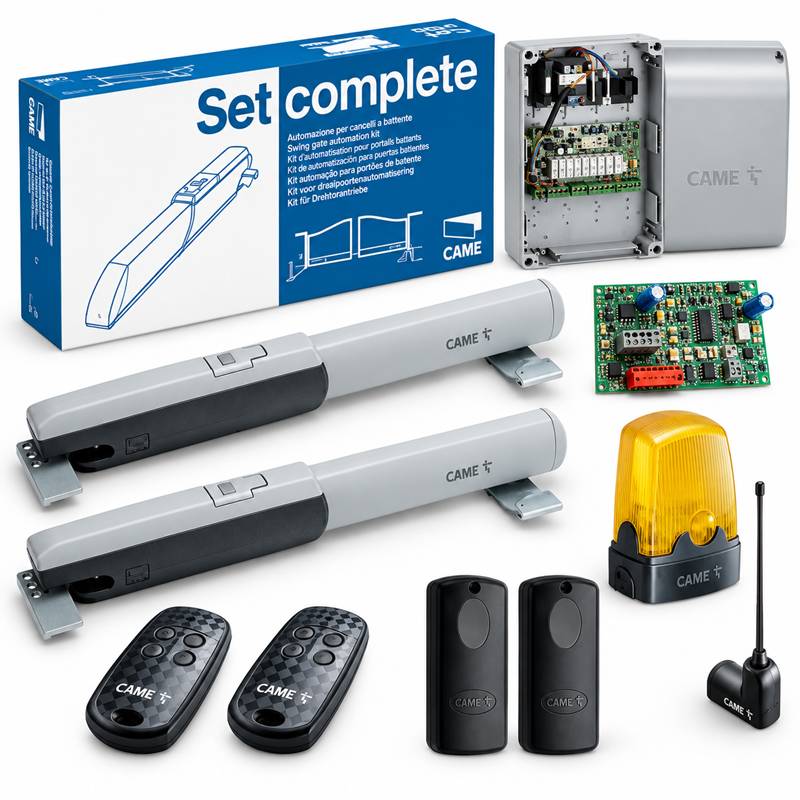

CAME ATI A5000 Kit Includes
- 2 × CAME ATI A5000 Swing Gate Motors
- 1 × Multifunction Control Panel for Two Swing Leaves
- 2 × CAME Remote Controls
- 1 × CAME Flashing Warning Light
- 1 × Pair of CAME Photocell Safety Sensors
- 2 × Wall Fixing Brackets
- 1 × Push Button
Note: The above contents describe our Gate Motor UAE kit. Package accessories should be confirmed when ordering.
CAME ATI A3000 vs A5000
| Specification | ATI A3000 | ATI A5000 |
|---|---|---|
| Product Code | 001A3000 | 001A5000 |
| Maximum Leaf Length | 3 m | 5 m |
| Max. Weight at Full Length | 400 kg at 3 m | 400 kg at 5 m |
| Motor Voltage | 230V | 230V |
| Power | 260W | 260W |
| 90° Manoeuvre Time | 19–25 sec | 30–40 sec |
| Cycles/Hour | 24 | 15 |
CAME ATI A5000 Applications
- Large villa swing gates
- Residential driveway gates
- Apartment building entrances
- Residential compounds
- Single-leaf automatic gates
- Double-leaf automatic gates
- Long swing gate leaves up to 5 metres
CAME ATI A5000 Swing Gate Motor UAE
We supply CAME ATI A5000 swing gate motors throughout the UAE for large residential swing gate automation applications.
Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm the length and approximate weight of each gate leaf, hinge condition, opening angle, pillar dimensions, wind exposure and expected operating frequency to ensure the CAME ATI A5000 is correctly selected.
