CAME ATI A3000 400 KG Swing Gate Motor

CAME ATI A3000 3M 230V Automatic Swing Gate Motor UAE

CAME ATI A3000 is a robust 230V electromechanical swing gate motor designed for gate leaves up to 3 metres and weighing up to 400 kg. Product code 001A3000, this irreversible linear gate operator is suitable for residential villas, compounds and compatible commercial swing gate entrances.

The CAME ATI A3000 combines a durable 230V motor, adjustable opening limit-switch microswitch, strong thrust and reliable mechanical construction. It is designed for professional single- and double-leaf swing gate automation throughout the UAE.

CAME ATI A3000 Key Features

• Original CAME swing gate automation
• Model: A3000
• Product code: 001A3000
• Irreversible electromechanical linear operator
• 230V AC motor
• Maximum gate leaf length: 3 metres
• Maximum gate leaf weight: 400 kg
• Power: 260W
• Current consumption: 1.2A
• Opening limit-switch microswitch
• 90° manoeuvre time: 19–25 seconds
• Operating capacity: 24 cycles/hour
• Thrust: 400–4000N
• Protection rating: IP44
• Operating temperature: -20°C to +55°C
• Motor thermal protection: 150°C

CAME ATI A3000 Technical Specifications

3 Metre Swing Gate Automation

The CAME ATI A3000 is designed for swing gate leaves up to 3 metres long and weighing up to 400 kg. This makes it suitable for villa entrances, residential driveways and compatible commercial gate installations.

Actual suitability should be assessed according to gate leaf length, weight, hinge condition, wind exposure and installation geometry.

230V CAME Swing Gate Motor

The A3000 uses a 230V AC electromechanical motor with approximately 260W power and 1.2A current consumption. The operator is irreversible, providing secure mechanical holding during normal automatic operation.

Opening Limit-Switch Microswitch

The standard CAME A3000 is fitted with an opening limit-switch microswitch. This allows the installer to define the opening end position of the gate during setup.

If you require both opening and closing limit-switch microswitches, CAME offers the A3000A variant, which is a different model and should not be mixed with this A3000 page.

19–25 Second Opening Time

CAME specifies a 90° manoeuvre time of approximately 19–25 seconds for the A3000. Actual operating time depends on installation geometry and gate configuration.

24 Cycles per Hour

The CAME ATI A3000 is rated for approximately 24 cycles per hour, making it suitable for normal residential and compatible light-commercial swing gate applications.

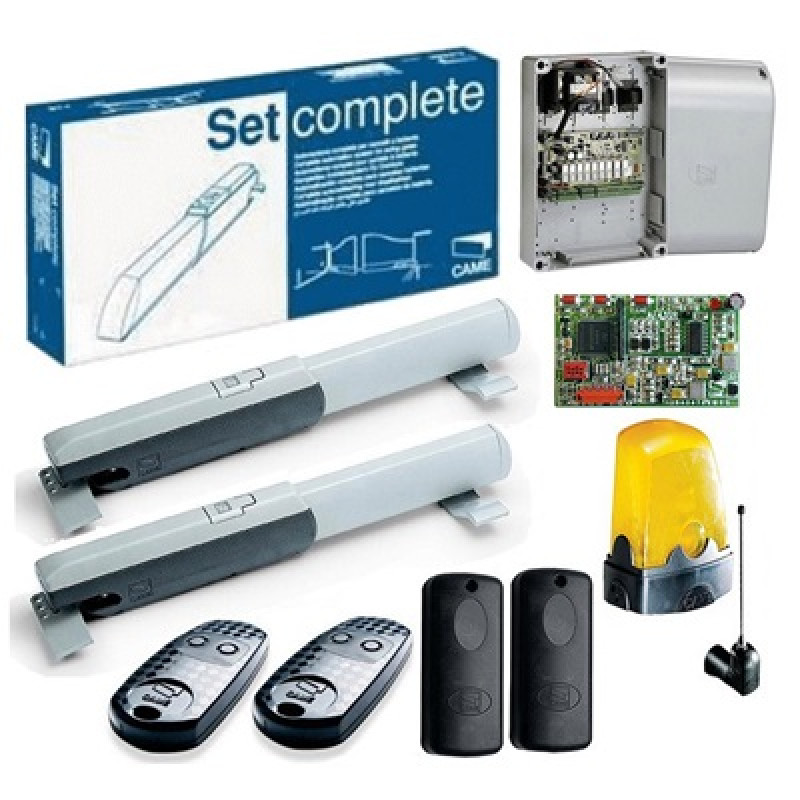

CAME ATI A3000 Kit Includes

• 2 × CAME ATI A3000 Swing Gate Motors
• 1 × Multifunction Swing Gate Control Panel
• 2 × CAME Remote Controls
• 1 × CAME Flashing Warning Light
• 1 × Pair of CAME Photocell Safety Sensors
• 2 × Motor Mounting Brackets
• 1 × Push Button

Note: The above kit describes our UAE supply package. Kit contents should be confirmed when ordering.

CAME ATI A3000 vs A3000A

CAME ATI 3000 Applications

• Villa swing gates
• Residential driveway gates
• Single-leaf swing gates
• Double-leaf swing gates
• Residential compounds
• Private property entrances
• Gate leaves up to 3 metres

CAME ATI A3000 Swing Gate Motor UAE

We supply CAME ATI A3000 swing gate motors throughout the UAE with professional installation, programming, maintenance and technical support.

Supply and installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the gate leaf length, approximate weight, hinge condition, opening angle and mounting geometry to ensure the CAME A3000 is suitable for the gate.
