CAME DIR10 10M Photocell Safety Sensor
Price 300 AEDIn Stock

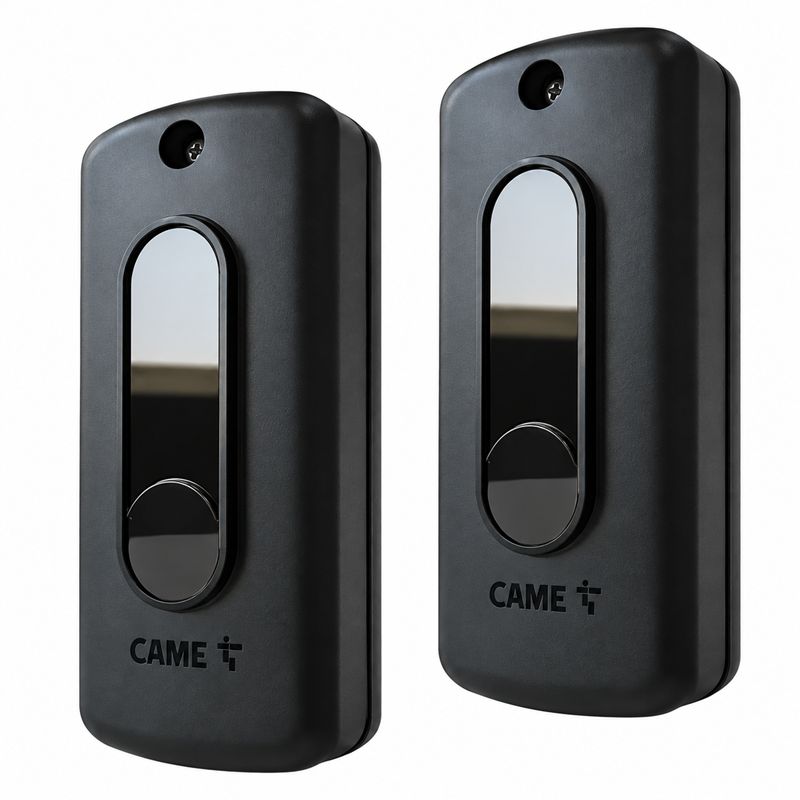

CAME DIR10 10M Infrared Photocell Safety Sensor UAE
CAME DIR10 is an original CAME infrared photocell safety sensor designed for automatic gates, parking barriers and compatible access automation systems. Product code 001DIR10, the package consists of a pair of surface-mounted photocells with a maximum infrared detection range of 10 metres.
The DIR10 uses a synchronized infrared beam to monitor the gate movement area and help prevent the automatic gate from closing when a vehicle, person or other obstacle interrupts the beam. It operates from 12–24V AC/DC and features an IP54 weather-resistant ABS and polycarbonate enclosure for outdoor gate automation installations.
CAME DIR10 Key Features
- Original CAME photocell safety sensor
- Model: DIR10
- Product code: 001DIR10
- Supplied as a pair of photocells
- Maximum infrared range: 10 metres
- Power supply: 12–24V AC/DC
- Synchronized infrared beam technology
- Helps prevent interference between multiple photocell pairs
- Surface-mounted installation
- Traditional wired connection
- Protection rating: IP54
- Operating temperature: -20°C to +55°C
- Housing material: ABS + Polycarbonate
- Suitable for outdoor gate automation
- Compatible with many CAME gate and barrier control systems
CAME DIR10 Technical Specifications
| Brand | CAME |
| Series | DIR |
| Model | DIR10 |
| Product Code / MPN | 001DIR10 |
| Product Type | Infrared Gate Safety Photocell |
| Quantity | 1 Pair – Transmitter & Receiver |
| Maximum Range | 10 metres |
| Power Supply | 12–24V AC/DC |
| Current Draw at 24V AC | 60 mA |
| Relay Rating at 24V | 500 mA |
| Detection Technology | Synchronized Infrared Beam |
| Installation | Surface Mount |
| Connection | Traditional Wired |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to +55°C |
| Material | ABS + Polycarbonate |
| Dimensions | 46 × 108 × 23 mm |
10 Metre Infrared Gate Safety Sensor
The CAME DIR10 provides an infrared detection range of up to 10 metres. One photocell acts as the transmitter while the opposite unit receives the infrared beam.
When a vehicle, person or object interrupts the beam, the photocells send a safety signal to the compatible gate control panel. The exact response depends on the control-panel programming and safety-input configuration.
Synchronized Infrared Beam Technology
The CAME DIR series uses a synchronized infrared beam. This technology is designed to reduce signal interference and allows multiple pairs of compatible DIR photocells to be installed on the same automation system with reduced risk of cross-talk.
This is particularly useful for larger gate installations where more than one safety beam is required.
12–24V AC/DC Power Supply
The DIR10 operates from a flexible 12–24V AC/DC power supply, making it suitable for connection to many compatible CAME gate, door and parking barrier control panels.
Always check the accessory output voltage and safety-input terminals of the control panel before wiring the photocells.
IP54 Outdoor Protection
The CAME DIR10 has an IP54 protection rating and an ABS/polycarbonate enclosure designed for outdoor automation installations.
Its operating temperature range of -20°C to +55°C makes it suitable for a wide range of residential and commercial gate automation environments.
CAME DIR10 Installation
CAME recommends installing the DIR photocells approximately 50 cm above ground level, with the transmitter and receiver facing each other across the protected area.
The DIR10 can be surface-mounted directly or used with compatible CAME mounting accessories and posts depending on the installation requirements.
CAME DIR10 Compatible Applications
- CAME sliding gate motors
- CAME swing gate motors
- CAME parking gate barriers
- Automatic driveway gates
- Villa gate automation
- Residential gate entrances
- Commercial automatic gates
- Industrial gate automation
- Vehicle access-control entrances
CAME DIR10 Accessories
- 001DIRZ – Aluminium alloy shock-proof protection
- 001DIR-S – Recess-mounting casing
- 001DIR-L – Natural anodized aluminium post, 500 mm
- 001DIR-LN – Black anodized aluminium post, 500 mm
- 001DIR-CG – Silver PVC post, 500 mm
CAME DIR10 vs DIR20 vs DIR30
| Model | Maximum Range | Power Supply | Protection |
|---|---|---|---|
| DIR10 | 10 m | 12–24V AC/DC | IP54 |
| DIR20 | 20 m | 12–24V AC/DC | IP54 |
| DIR30 | 30 m | 12–24V AC/DC | IP54 |
CAME DIR10 Photocell Sensor UAE
We supply CAME DIR10 photocell safety sensors throughout the UAE for automatic sliding gates, swing gates and parking barrier systems.
Supply, installation, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm your gate control-panel model, accessory voltage and required detection distance to ensure the DIR10 is suitable for your automation system.
