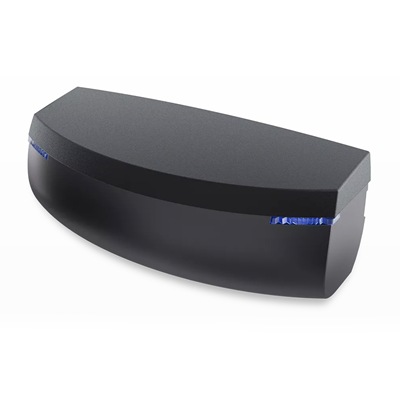

BEA EAGLE ARTEK Sensor Supplier in UAE Automatic Door
BEA EAGLE ARTEK Automatic Door Opener Sensor in UAE
- The BEA EAGLE ARTEK is a universal microwave opening sensor designed
- for all types of automatic doors, including sliding, swing, and revolving doors.
- It features a compact and slim design, allowing discreet installation even in tight spaces,
- while delivering high stability and reliable motion detection.
- With ARTEK radar technology, the sensor offers improved detection accuracy
- and better filtering of unwanted movements, ensuring efficient door operation.
Key Features:
- Microwave radar motion detection (24.15 GHz)
- Unidirectional detection (approaching motion only)
- Compact & slim design for easy integration
- Adjustable detection field (electronically controlled)
- Push-button configuration (no manual antenna adjustment)
- Cross-traffic rejection (filters unwanted movement)
- Energy-efficient operation (reduces unnecessary openings)
- Easy retrofit with existing BEA systems
Technical Specifications:
- Technology: Microwave radar
- Frequency: 24.15 GHz
- Detection Mode: Motion
- Detection Range:
- Wide: 4 m × 2 m
- Narrow: 2 m × 2.2 m
- Minimum Detection Speed: 5 cm/s
- Power Supply:
- 12–24V AC ±10%
- 12–24V DC +30% / -10%
- Power Consumption: < 1 W
- Output: Solid-state relay (NO/NC equivalent)
- Mounting Height: 1.8 m to 4 m
- Protection Rating: IP54
- Operating Temperature: -20°C to +55°C
- Dimensions: 120 × 50 × 50 mm
- Material: ABS
- Weight: ~120 g
Applications in UAE:
- The BEA EAGLE ARTEK Sensor is ideal for:
- Automatic sliding glass doors
- Swing door automation systems
- Revolving doors
- Retail shops & malls
- Office buildings
- Hospitals & commercial entrances
Why Choose BEA EAGLE ARTEK?
- Compact and modern design
- High detection accuracy with fewer false triggers
- Easy setup with push-button control
- Energy-efficient operation
- Compatible with all automatic door systems
Package Includes:
- BEA EAGLE ARTEK Sensor
- Mounting Accessories
- User Manual
