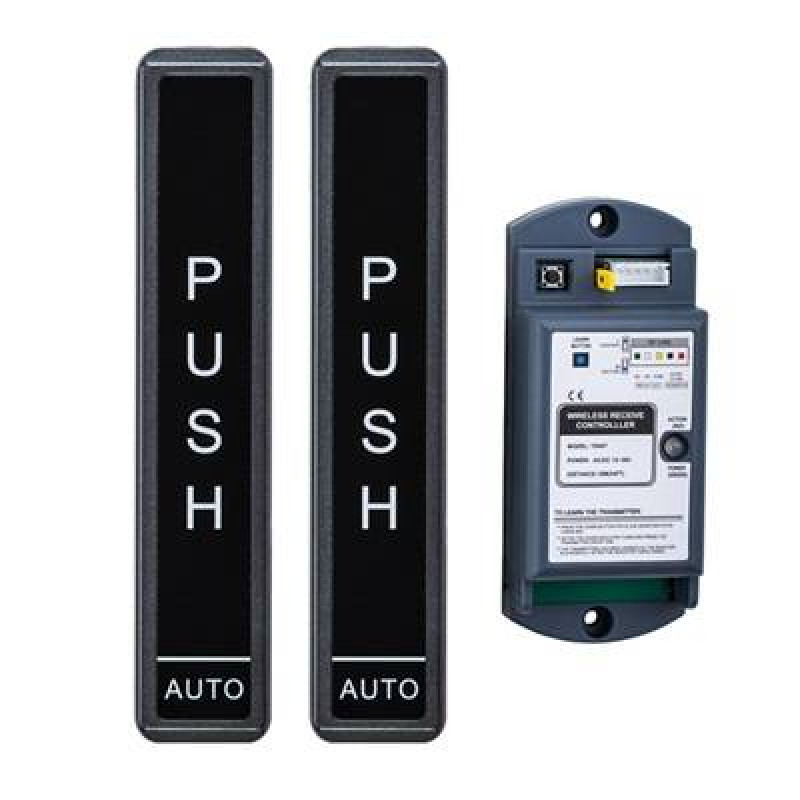

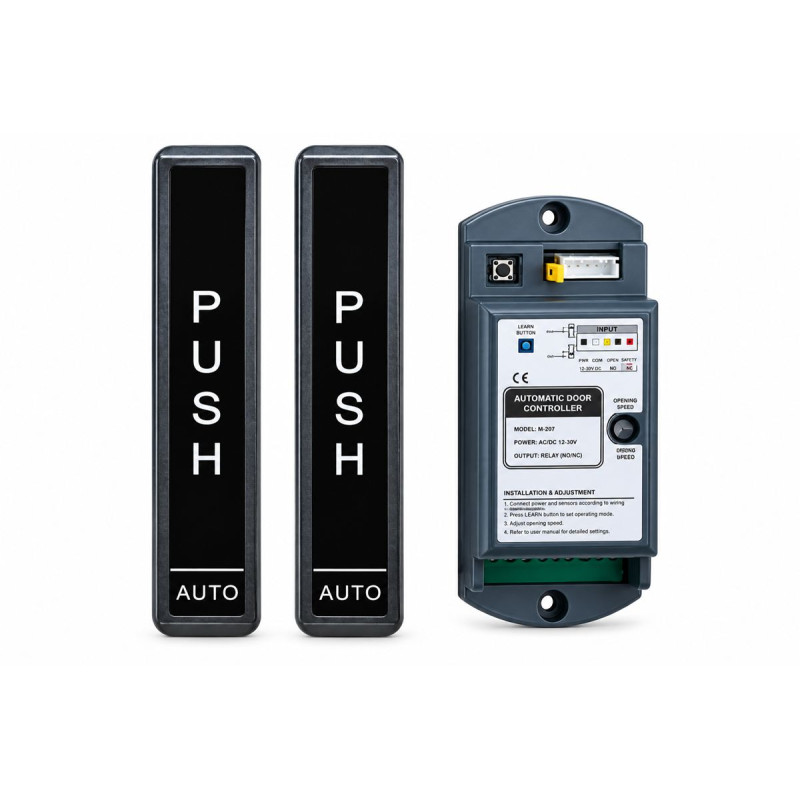

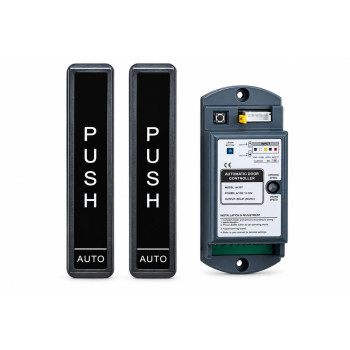

Automatic Door Opener Wireless Push Button

Wireless Push Button for Automatic Door Openers UAE

Automatic Door Opener Wireless Push Button is a convenient wireless activation switch designed for automatic swing doors, automatic sliding doors, electric locks and access control systems. The system allows users to activate an automatic door by simply pressing the wall-mounted push panel without requiring control wiring between the button and automatic door operator.

The wireless system operates at 315MHz and includes a compatible receiver for connection to the automatic door opener or access control system. With reliable wireless transmission, low power consumption and a slim professional design, it is suitable for offices, hospitals, clinics, hotels, restaurants, banks, shops and commercial buildings throughout the UAE.

Automatic Door Wireless Push Button Key Features

• Wireless hand-press activation switch
• Designed for automatic door opener systems
• Wireless frequency: 315MHz
• Wireless transmitter and receiver system
• Receiver power supply: AC/DC 12V–24V
• Wide compatible voltage range
• Low power consumption
• Fast and reliable wireless activation
• Relay output for automatic door control
• Contact holding time: 2 seconds
• LED power/operation indication
• Slim wall-mounted push panel
• Suitable for automatic swing doors
• Suitable for automatic sliding doors
• Compatible with electric locks and access control systems
• Ideal where running additional activation cable is difficult

Technical Specifications

Wireless Activation for Automatic Doors

This wireless automatic door push button provides a simple way to activate an automatic door without installing a control cable from the push button to the door operator.

When the push panel is pressed, the transmitter sends a wireless signal to the receiver. The receiver then provides a relay activation signal to the compatible automatic door controller, allowing the operator to perform its normal opening cycle.

315MHz Wireless Push Button

The system operates using a 315MHz wireless signal. This allows the activation button to communicate with its paired receiver without a direct signal cable between the wall switch and automatic door operator.

This makes the product particularly useful for retrofit installations and locations where installing new cables inside finished walls, glass entrances or existing building structures would be difficult.

Automatic Swing Door Push Button

The wireless push button can be used with compatible automatic swing door openers. A user presses the wall-mounted panel and the receiver sends the activation command to the automatic door operator.

It is suitable for office doors, hospital entrances, clinics, hotels, restaurants and other locations where convenient push-button door activation is required.

Automatic Sliding Door Push Button

The system can also be integrated with compatible automatic sliding door operators that provide an external activation input. This allows the sliding door to be opened manually on demand instead of relying only on a microwave motion sensor.

Access Control & Electric Lock Integration

In addition to automatic door operators, the receiver's relay output can be used with compatible access control systems and electric locking equipment.

Compatibility should always be confirmed according to the controller input type, operating voltage and required relay configuration before installation.

Ideal for Retrofit Automatic Door Installations

A major advantage of a wireless push button is the reduced requirement for additional activation wiring. This can simplify installations in existing buildings where walls, glass panels or finished surfaces make new cable installation difficult.

The push panel can be mounted in a convenient location while the wireless receiver is installed near the automatic door controller.

Applications

• Automatic swing doors
• Automatic sliding doors
• Office entrances
• Hospitals and clinics
• Hotels
• Restaurants
• Shopping centres
• Retail shops
• Banks
• Schools
• Commercial buildings
• Access control systems
• Electric door locks

Package Includes

• 1 × Wireless Push Button
• 1 × Compatible Wireless Receiver

Automatic Door Wireless Push Button UAE

We supply automatic door opener wireless push buttons throughout the UAE for automatic swing doors, sliding doors and compatible access control applications.

Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm your automatic door controller input, receiver voltage and required wireless frequency to ensure compatibility with the installed automatic door system.
