PD 132 Vehicle Loop Detector in UAE

PD 132 Vehicle Loop Detector Supplier in UAE

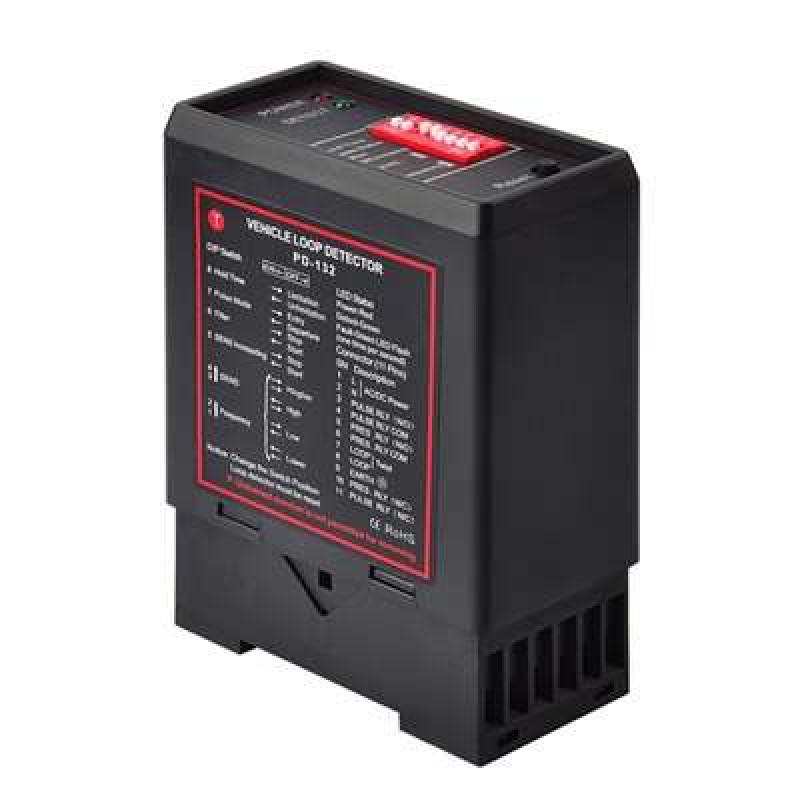

PD 132 Vehicle Loop Detector:

• Model No : PD-132

• PD-132 Inductive Vehicle Single Loop Detector for Gate Barrier,

PD-132 Technical Data:

• Supply voltage: 230V AC.

• Voltage tolerance AC: +10% / -15%

• Voltage tolerance DC: ±15%

• Power Consumption: 4.5VA

• Output relays: 240V/5A

• Operating temperature: -20°C to +65°C

• Storage temperature: -40°C to +85°C

• Frequency range: 20 kHz to 170 kHz

• Reaction time: 10ms

• Signal holding time: Unlimited / limited

• when loop is permanently covered 10 minutes

• Sensitivity: Adjustable in 4 increments

• Loop inductance: Total loop plus connection wiring

• Ideal is 100μH to 300μH

• Loop connection wiring: Maximum length 20 meters,

• twisted at least 20 times per meter

• Size of Housing: 78x40x108 mm (L x W x H).
