ROGER R20/310 Swing Gate Motor up to 2.5m, KIT R20/310 KIT Electromechanical actuator 230V AC
irreversible ideal for swing gates with leaf up to 2,5 m with 1 microswitch. complete with fixing plates. 230V AC. Residential sector.
Technical features: Power line supply : 230V AC - 50Hz Motor power supply : 230V AC Power rating : 200W Frequency of use : 40% Thrust : 2500N Operating temperature : -20+55 C° Protection level : IP44 Reductor Type : Irreversible Manoeuvre speed : 1,66 cm/s Opening time : 19 s Stroke : 320 mm Motor thermal protection : 150 C° Incorporated condenser : 15 µF Limit switch : Microswitch in opening (optional in closing) Encoder : - Maximum dimension product in mm (L x W x H) : 858,5 x 120 x 165 Product weight packed (Kg) : 20,8.

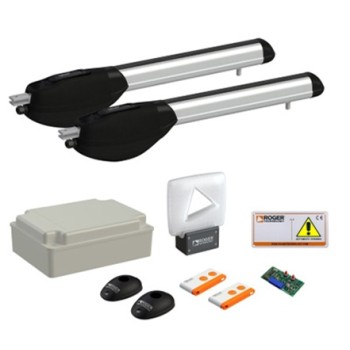

ROGER R20/310 Kit Contains: 2 x R20/300 Electromechanical actuator 230V AC irreversible for swing gate with leaf up to 2,5 m. 1 x H70/200AC/BOX Control unit for 2 motors 230V AC with slow down. 1 x H93/RX22A/I Plug-in receiver 2 channels 433,92 Mhz. 1 x T80/TX2 Dual code transmitter. 1 x R90/F2ES Pair of external photocells synchronized. 1 x FIFTHY/230 LED flashing light. 1 x R99/C/001 Signboard "Automatic Opening.
