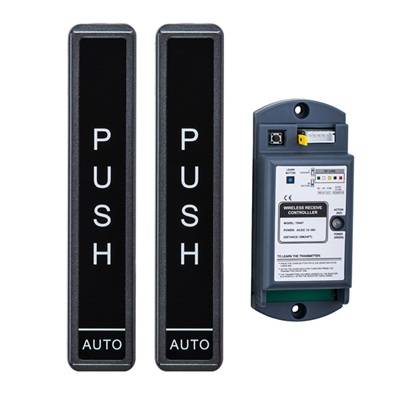

Automatic Door Opener Wireless Push Button in UAE

Automatic Door Opener Wireless Push Button in UAE

Automatic Door Opener Wireless Push Button in UAE

• Automatic Door opener Wireless Push Button Switch
• Power supply AC/DC 12V- 24V
• Quiescent Current 15mA
• Operating current 80mA (when powered by DC12V)

Specifications:

• Wireless Hand Press Push Switch For Automatic Door Opener Systems
• ADOPT uniformity frequency, high stability of wireless signal receiving and sending
• Siludification of PU varnished shell, dapper appearance with anti-off screw
• Operation frequency 315M
• Panel pushing with low-power consumption,long service life battery
• Three point of trigger pressing design to ensure the effective action
• With large capacity output,available to be used with autodoor,
• electric lock and access controller
• Door open within 2s when signal received
• Wide voltage input of AC/DC12-36V
• Function switch with voice indicator,
• power indicator turns green to confirm the validity of operation
• Power supply : AC/DC 12V- 24V
• Quiescent Current : 15mA
• Operating current : 80mA (when powered by DC12V)
• Main contact capacity : 20A 14VDC
• Contact holding time : 2 seconds
• Emission current : 3.9mA
• Working temperature : -42°C 45°C
• Working environment humidity : 10-90%RH
• physical dimension : 203mm(L)X40.5mm(W)X12mm(H) (hand press)
