SOMMER twist 350 Swing Gate Motor 700 KG

SOMMER twist 350 Swing Gate Motor UAE

SOMMER twist 350 is a powerful 24V automatic swing gate motor designed for large and heavy residential and commercial swing gates. The operator is suitable for compatible gate leaves weighing up to 700 kg or measuring up to 4 metres wide, depending on the gate dimensions, construction, filling, wind load and installation conditions.

Designed by SOMMER for demanding swing gate automation, the twist 350 combines a powerful 2,500 N maximum pulling and pushing force, smooth electronic control, up to 121° opening angle and an ED 40% S3 duty cycle. The current set also uses advanced SOMloq2 868.95 MHz radio technology for compatible SOMMER remote controls.

SOMMER twist 350 Key Features

• Original SOMMER swing gate operator
• Model: twist 350
• 2-leaf set article number: S11525-00001
• Maximum gate weight: 700 kg
• Maximum gate leaf width: 4,000 mm / 4 m
• Maximum gate filling: 100%*
• Motor voltage: 24V DC
• Mains supply: 220–240V AC
• Maximum pulling and pushing force: 2,500 N
• Rated pulling force: 830 N
• Maximum thrust speed: 18 mm/s
• Maximum opening angle: 121°
• Duty cycle: ED 40% S3
• Operator protection: IP44
• Control unit protection: IP65
• Operating temperature: -30°C to +70°C
• Radio technology: SOMloq2
• Radio frequency: 868.95 MHz
• 40 radio memory positions
• Expandable to 450 radio commands with optional Memo
• Suitable for single and double-leaf swing gates
• Universal left and right installation
• Suitable for closed gate panels*
• Outward-opening installation possible with special fittings

*Gate suitability depends on gate dimensions, filling, wind exposure, installation geometry and site conditions.

SOMMER twist 350 Technical Specifications

*The maximum 700 kg weight and 4 m leaf width are product limits and should not automatically be treated as simultaneous limits for every gate.

Heavy-Duty 700 KG Swing Gate Motor

The SOMMER twist 350 is designed for heavier swing gates where a smaller residential operator may not provide sufficient capacity. SOMMER specifies a maximum gate leaf weight of up to 700 kg, subject to the gate dimensions and installation conditions.

This makes the twist 350 suitable for heavy villa gates, residential compounds and compatible commercial entrances requiring a powerful 24V swing gate automation system.

For Swing Gate Leaves Up to 4 Metres

The twist 350 supports compatible gate leaves measuring up to 4 metres wide. This gives the operator significantly greater capacity than smaller swing gate motors intended primarily for shorter residential gates.

The maximum permissible weight depends on the gate width, construction, filling, wind exposure and installation geometry. The 700 kg and 4 m figures should not automatically be combined for every installation.

2,500 N Pulling & Pushing Force

The SOMMER twist 350 provides a maximum 2,500 N pulling and pushing force with a rated pulling force of 830 N.

This strong linear drive makes the operator suitable for demanding swing gate applications while the electronic control system provides controlled starting, movement and stopping.

24V DC Swing Gate Operator

The twist 350 uses a 24V DC motor powered through the compatible SOMMER control system. The system operates from a 220–240V AC, 50–60 Hz mains supply.

The 24V drive system provides precise electronic control and allows compatible safety and access-control equipment to be incorporated into the automatic gate installation.

40% Duty Cycle for Demanding Gate Automation

With an ED 40% S3 duty cycle, the twist 350 is designed for more demanding operation than light-duty residential swing gate motors.

It is therefore well suited to compatible villa, residential compound and commercial entrance applications where a robust swing gate operator is required.

Up to 121° Gate Opening Angle

SOMMER specifies a maximum opening angle of up to 121° for the twist 350. The actual achievable opening angle depends on the gate hinges, post dimensions, mounting brackets and installation geometry.

Correct A/B mounting dimensions should always be calculated before installing the operator.

Suitable for Closed & Solid Gate Panels

SOMMER specifically lists the twist 350 as suitable for closed gate panels. This can make it an excellent choice for solid metal and privacy-style gates.

However, a closed gate can experience substantial wind forces. Gate width, height, filling and local wind exposure must therefore be considered when selecting and installing the operator.

SOMMER Patented Braking System

The twist 350 incorporates SOMMER's patented braking system. SOMMER states that this provides high resistance against external forces, including loads caused by strong wind or attempted forced movement.

This feature is particularly valuable for larger and heavier gate leaves where external forces can place considerable stress on the automation.

Soft & Controlled Gate Movement

The SOMMER control system provides soft and controlled gate movement to reduce mechanical stress on the gate, hinges and operator.

Operating speed and other movement parameters can be adjusted according to the installation requirements.

Obstacle Detection & Adjustable Reversal

The twist 350 control system provides configurable behaviour when an obstacle is encountered. Depending on the programming, the gate can perform a full or partial reversal.

Appropriate photocells, safety edges and other safety devices should be installed according to the gate design and site requirements.

Automatic Closing Function

The control unit supports an automatic closing function, allowing the gate to close automatically after a programmed period when the installation and required safety devices are correctly configured.

Automatic closing should only be enabled after the entrance has been equipped and tested with the appropriate safety equipment.

Pedestrian Gate Function

The SOMMER twist 350 supports a pedestrian opening function. This allows a programmed command to partially operate the entrance rather than opening the complete double gate when only pedestrian access is required.

Single & Double-Leaf Gate Operation

The twist 350 can be used for both single-leaf and double-leaf swing gates. The operator is universally suitable for left- and right-hand installation.

SOMMER also permits selected mixed configurations with compatible twist 200 E, twist 200 EL and twist XL operators where appropriate for the gate installation.

Outward-Opening Swing Gates

The twist 350 can also be used for suitable outward-opening gates when the required special fittings and correct installation geometry are used.

Outward-opening installations should be planned carefully because bracket positioning and operator geometry differ from conventional inward-opening gates.

SOMloq2 868.95 MHz Radio Technology

The current twist 350 set uses SOMMER SOMloq2 radio technology at 868.95 MHz. The included SOMup4 S2 receiver provides 40 radio memory positions for compatible SOMMER transmitters.

An optional SOMMER Memo module can expand the radio memory to approximately 450 commands, making the system suitable for installations requiring additional authorised users.

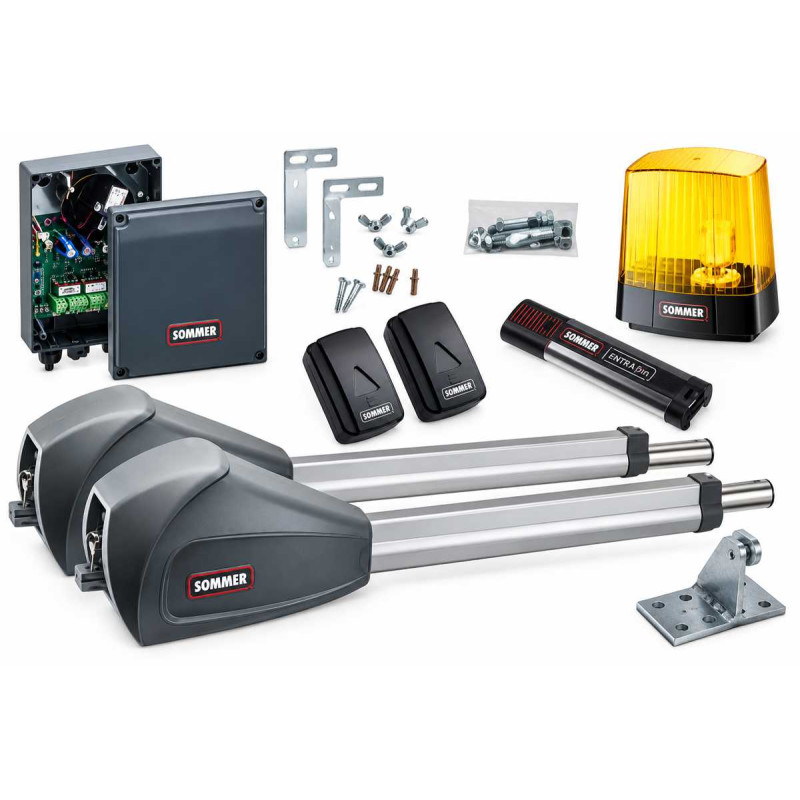

SOMMER twist 350 2-Leaf Kit

The S11525-00001 twist 350 2-leaf set includes the main components required for double swing gate automation:

• 2 × SOMMER twist 350 swing gate operators
• Post and gate leaf fittings
• 1 × DTA-1 control unit in IP65 housing
• 1 × SOMup4 S2 SOMloq2 receiver
• 1 × Pearl Vibe 4-command remote control
• 40 radio memory positions
• Memo expansion slot for up to 450 radio commands

DTA-1 Swing Gate Control Unit

The set includes the SOMMER DTA-1 control unit housed in an IP65 enclosure measuring approximately 250 × 175 × 75 mm.

The microprocessor-based control system provides numerous configurable functions including pedestrian opening, automatic closing, adjustable operating speed, pre-warning time and adjustable obstacle response.

SOMMER Pearl Vibe Remote Control

The listed twist 350 set includes a SOMMER Pearl Vibe 4-command handheld transmitter. The Pearl Vibe provides noticeable vibration feedback when compatible radio commands are transmitted.

Additional compatible SOMloq2 transmitters can be programmed according to the available receiver memory.

Residential & Commercial Swing Gate Automation

The high capacity of the twist 350 makes it suitable for a wide range of compatible applications, including:

• Large villa swing gates
• Residential compounds
• Commercial properties
• Office entrances
• Private parking entrances
• Heavy metal swing gates
• Solid and closed-panel gates
• Single-leaf swing gates
• Double-leaf swing gates

How to Select the Correct SOMMER Swing Gate Motor

Do not select a swing gate motor using the gate weight alone. The installer should consider the weight and width of each leaf, gate filling, wind exposure, hinge condition, pillar dimensions, required opening angle, installation geometry and operating frequency.

For the twist 350, the maximum specifications of 700 kg gate weight and 4 m leaf width represent the operating envelope and should not automatically be interpreted as a 700 kg × 4 m gate specification.

SOMMER twist 350 Swing Gate Motor UAE

We supply SOMMER twist 350 swing gate motors throughout the UAE for heavy residential and compatible commercial automatic swing gate applications.

Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the weight, width and height of each gate leaf, gate filling, wind exposure, hinge position, pillar dimensions and required opening angle. This allows the correct SOMMER operator and mounting geometry to be selected.
