NICE RUN 1800 RUN1800 1800 KG Sliding Gate Motor

NICE RUN 1800 RUN1800 Sliding Gate Motor UAE

NICE RUN 1800 RUN1800 is a professional 230V heavy-duty industrial sliding gate motor designed for automatic sliding gates weighing up to 1800 KG. Manufactured by NICE, the RUN1800 combines powerful electromechanical drive technology with an integrated RUA1 electronic control unit, NICE BlueBUS communication, intelligent obstacle detection and advanced gate movement management.

The NICE RUN1800 produces up to 40 Nm maximum start-up torque, corresponding to approximately 1110 N maximum force. At nominal operating load it provides approximately 20 Nm torque / 560 N force. With its intensive-use design, temperature management and advanced electronic controls, the RUN1800 is an excellent solution for warehouses, factories, commercial compounds and heavy sliding gates throughout the UAE.

NICE RUN 1800 Key Features

• Original NICE heavy-duty industrial sliding gate motor
• Series: RUN
• Model: RUN1800
• Maximum sliding gate weight: 1800 KG
• Heavy-duty industrial gate automation
• 230V AC single-phase electromechanical motor
• Maximum start-up power: 700 W
• Power at nominal torque: 400 W
• Maximum start-up current: 3 A
• Current at nominal torque: 1.8 A
• Maximum start-up torque: 40 Nm
• Maximum force: 1110 N
• Nominal torque: 20 Nm
• Nominal force: 560 N
• No-load speed: 10 m/min – approx. 0.17 m/s
• Speed at nominal torque: 8.5 m/min – approx. 0.14 m/s
• Up to 42 cycles/hour for gates up to 6 metres
• Electromechanical limit switch
• Integrated NICE RUA1 control unit
• NICE BlueBUS technology
• Automatic gate travel learning
• Automatic slowdown calculation
• Electronic obstacle detection
• Partial opening / pedestrian function
• Master / Slave function for opposing sliding gates
• Temperature-controlled operating management
• Manual emergency release
• Protection rating: IP44

NICE RUN1800 Technical Specifications

1800 KG Heavy-Duty Sliding Gate Motor

The NICE RUN1800 is engineered for heavy sliding gates weighing up to 1800 KG. Its high starting torque and industrial design make it suitable for large commercial entrances, warehouses, factories, residential compounds and other demanding automatic sliding gate applications.

The correct motor should not be selected by gate weight alone. Gate length, wheel condition, track alignment, rack condition, mechanical resistance, ambient temperature and expected daily operating frequency should also be considered.

230V Industrial Sliding Gate Motor

The NICE RUN 1800 uses a 230V AC electromechanical gear motor engineered for demanding sliding gate automation. NICE specifies up to 700 W maximum power during start-up and approximately 400 W at nominal operating torque.

For technical accuracy, the RUN1800 should therefore not simply be described as a continuously rated 700 W motor.

1110N Maximum Gate Force

The RUN1800 develops a maximum start-up torque of approximately 40 Nm, corresponding to approximately 1110 N maximum force. At nominal operating conditions, the motor provides approximately 20 Nm torque and 560 N force.

This high starting capability is designed for correctly installed heavy sliding gates within the motor's specified operating limits.

NICE RUN1800 Gate Speed

The NICE RUN1800 reaches approximately 10 metres per minute (0.17 m/s) without load. At nominal torque, the specified movement speed is approximately 8.5 metres per minute (0.14 m/s).

Showing both figures provides more accurate technical information than advertising 0.17 m/s as the operating speed under every load condition.

Intensive-Use Gate Automation

The RUN1800 is designed for demanding commercial and industrial gate automation. For a gate up to approximately 6 metres long, NICE specifies up to 42 cycles per hour and approximately 28 consecutive cycles under the specified operating conditions.

The permitted operating frequency decreases as gate length and weight increase. A gate close to the full 1800 KG capacity should therefore not be expected to perform the same number of cycles as a much lighter gate.

NICE RUA1 Integrated Control Unit

The standard NICE RUN1800 uses the NICE RUA1 electronic control unit. The controller manages motor operation, BlueBUS devices, gate travel learning, obstacle detection, slowdown, partial opening and other automation functions.

When ordering a replacement control board, confirm the exact board reference installed in the motor. NICE identifies the RUA1 as the replacement control unit for RUN1800, RUN1800P, RUN2500 and RUN2500P.

NICE BlueBUS Technology

The NICE BlueBUS system simplifies the connection of compatible safety and automation devices. Compatible BlueBUS accessories communicate with the control system through a two-wire connection used for both communication and power.

This makes it easier to install compatible NICE photocells and safety accessories while reducing wiring complexity.

Automatic Gate Travel Learning

The RUN1800 control system can automatically learn the sliding gate travel between its opening and closing limits. The learned travel is then used to calculate important operating parameters including slowdown positions and partial opening.

Electronic Obstacle Detection

The NICE RUN1800 electronically monitors gate movement to detect abnormal resistance. If excessive resistance or an obstacle is detected, the control unit can respond according to its programmed safety configuration.

Electronic obstacle detection should always be combined with correctly installed photocells, safety edges and other safety devices required for the individual installation.

Electromechanical Limit Switch

The standard NICE RUN1800 uses an electromechanical limit switch for the opening and closing end positions.

NICE also manufactures the RUN1800P, which uses an inductive proximity limit switch. RUN1800 and RUN1800P should therefore be distinguished when ordering limit-switch components and other spare parts.

Partial Opening / Pedestrian Function

The RUN1800 supports a partial opening function, allowing the gate to open only to a programmed position when full vehicle access is not required.

This can be useful for pedestrian access or applications where a complete gate opening is unnecessary.

Master / Slave Dual Sliding Gate Function

The NICE RUN system supports Master / Slave synchronization for compatible installations using two opposing sliding gate motors.

This allows two motorized sliding leaves to operate together in a coordinated opening and closing sequence.

Temperature Management for UAE Conditions

The RUN control system monitors operating conditions and temperature to help manage motor performance and protection. This is particularly important for outdoor automatic gate installations exposed to high ambient temperatures.

For UAE installations, correct motor sizing, good ventilation, a freely moving gate and regular maintenance are particularly important during hot weather.

Manual Emergency Release

The NICE RUN1800 incorporates a manual emergency release, allowing the sliding gate to be disengaged from the motor and moved manually when required during maintenance or a power failure.

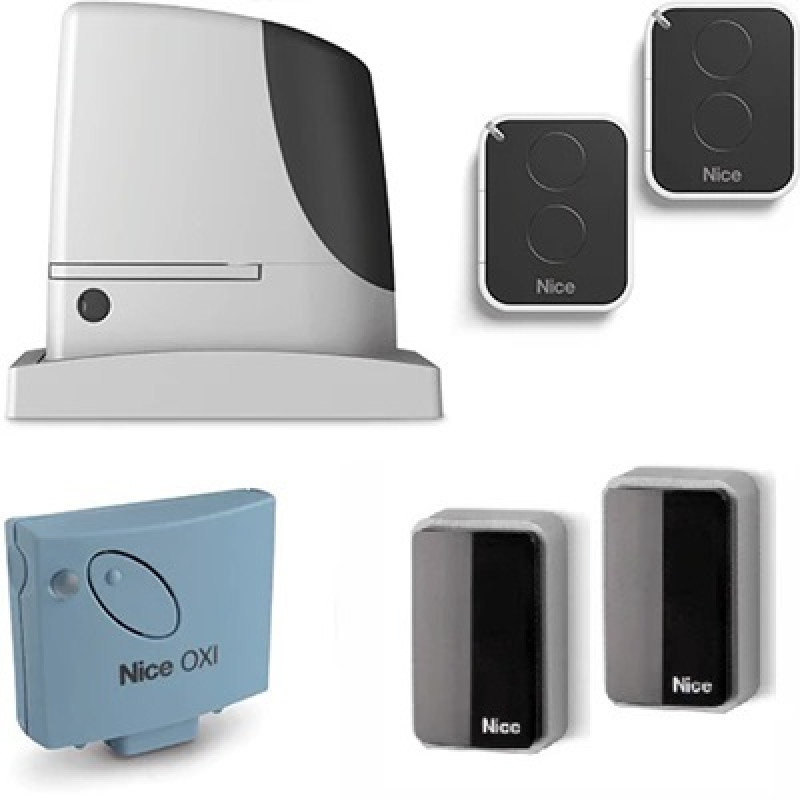

NICE RUN 1800 Kit Includes

• 1 × NICE RUN1800 1800 KG sliding gate motor
• 1 × Integrated NICE RUA1 control unit
• 2 × NICE ON2E remote controls
• 1 × NICE EPMB BlueBUS photocell pair
• 1 × NICE OXI radio receiver
• 1 × Flashing warning light
• 1 × Push button

Note: Package contents can vary according to available stock and supplied configuration. Confirm the exact accessories included before ordering.

NICE RUN1800 Applications

• Heavy villa sliding gates
• Residential compounds
• Commercial sliding gates
• Warehouse entrances
• Factory sliding gates
• Industrial entrances
• Logistics facilities
• Commercial parking entrances
• Controlled vehicle access points
• Heavy sliding gates up to 1800 KG

NICE RUN1800 vs RUN1800P

Important: RUN1800 and RUN1800P have the same basic gate capacity but use different limit-switch systems. This page is specifically for the standard RUN1800 with electromechanical limit switch.

NICE RUN 1800 Gate Motor UAE

We supply NICE RUN 1800 RUN1800 heavy-duty sliding gate motors throughout the UAE for residential compounds, commercial properties, warehouses, factories and industrial gate automation.

Supply, professional installation, programming, maintenance and spare-parts support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the gate weight, gate length, wheel and track condition, mechanical resistance and required daily operating frequency. For replacement motors and spare parts, confirm whether the existing motor is RUN1800 or RUN1800P.
