BFT PHOBOS AC A50 500 KG Swing Gate Motor

BFT PHOBOS AC A50 5M 230V Automatic Swing Gate Motor UAE

BFT PHOBOS AC A50 is a heavy-duty 230V electromechanical swing gate operator designed for large gate leaves weighing up to 500 kg and measuring up to 5 metres. With a long 460 mm useful rod stroke, electronic clutch, slowdown function and semi-intensive duty rating, it is an excellent solution for large residential villas, compounds and commercial swing gate entrances.

The PHOBOS AC A50 is the long-leaf model in BFT's PHOBOS AC range. It works with the BFT RIGEL 6 control panel and provides dependable automation for large single- and double-leaf swing gates.

BFT PHOBOS AC A50 Key Features

• Genuine BFT swing gate automation
• Model: PHOBOS AC A50
• Product code: P935097 00002
• Irreversible electromechanical linear operator
• 230V motor
• Maximum gate leaf length: 5 metres
• Maximum gate leaf weight: 500 kg
• Power consumption: 210 W
• Useful rod stroke: 460 mm
• Maximum opening angle: 129°
• Cycle time: approximately 18 seconds
• Compatible control panel: BFT RIGEL 6
• Electronic clutch for impact reaction
• Opening and closing slowdown
• Mechanical locking
• Personal-key manual release
• Semi-intensive operation
• Protection rating: IPX4
• Operating temperature: -20°C to +55°C

BFT PHOBOS AC A50 Technical Specifications

5 Metre Swing Gate Automation

The BFT PHOBOS AC A50 is designed for large swing gate leaves up to 5 metres long and with a maximum specified weight of up to 500 kg. It is particularly suitable for large villa gates, residential compounds, commercial entrances and other applications requiring a long linear swing gate actuator.

The actual permitted gate weight and length depend on gate construction, hinge condition, installation geometry, wind exposure and operating frequency. These factors should always be checked before installation.

Important Electric Lock Requirement

The PHOBOS AC A50 can be used as a self-locking operator for gate leaves up to approximately 3 metres. For longer gate leaves extending up to the maximum 5 metre rating, an appropriate electric gate lock is required.

This is especially important for large gates because the additional leaf length creates greater leverage and wind loading on the automation system.

230V Electromechanical Swing Gate Motor

The PHOBOS AC A50 uses a 230V single-phase electromechanical motor with approximately 210 W absorbed power. Its irreversible worm-drive mechanism provides reliable automatic opening and closing for large swing gates.

BFT RIGEL 6 Control Panel

The recommended control panel for the PHOBOS AC A50 is BFT RIGEL 6. This universal 230V control system manages the swing gate operators and provides connections for compatible command and safety accessories.

Compatible accessories can include BFT remote controls, photocell sensors, flashing warning lights, push buttons, key switches and access-control systems.

460 mm Long-Stroke Actuator

The PHOBOS AC A50 provides a substantial 460 mm useful rod stroke. This long actuator travel is designed for the mounting geometry required by larger swing gate leaves.

Correct front and rear bracket positioning is essential for achieving the required opening angle and reliable mechanical movement.

Maximum Opening Angle Up to 129°

The PHOBOS AC A50 can achieve a maximum opening angle of approximately 129°, depending on hinge position, pillar dimensions and installation geometry.

The required opening angle and available mounting dimensions should be checked before installing the operator.

18-Second Cycle Time

The PHOBOS AC A50 has a nominal cycle time of approximately 18 seconds. Actual opening and closing time can vary according to installation geometry, gate opening angle and control-panel settings.

Electronic Clutch and Slowdown

The 230V PHOBOS AC A50 uses an electronic clutch for impact reaction and supports slowdown during gate operation. Correct setup provides more controlled movement as the gate approaches the end of travel.

Photocell sensors and other appropriate safety devices should also be correctly installed and tested as part of the complete automatic swing gate system.

Working-Time Travel Management

The PHOBOS AC A50 uses working-time-based travel management. The control system manages the operating time rather than relying on conventional integrated electrical opening and closing limit switches.

Correct mechanical gate stops and proper commissioning of the control panel are therefore important for reliable operation.

Manual Release During Power Failure

If electrical power is unavailable, the PHOBOS AC A50 can be manually disengaged using its personalized release key. This allows the gate leaf to be manually opened or closed when necessary.

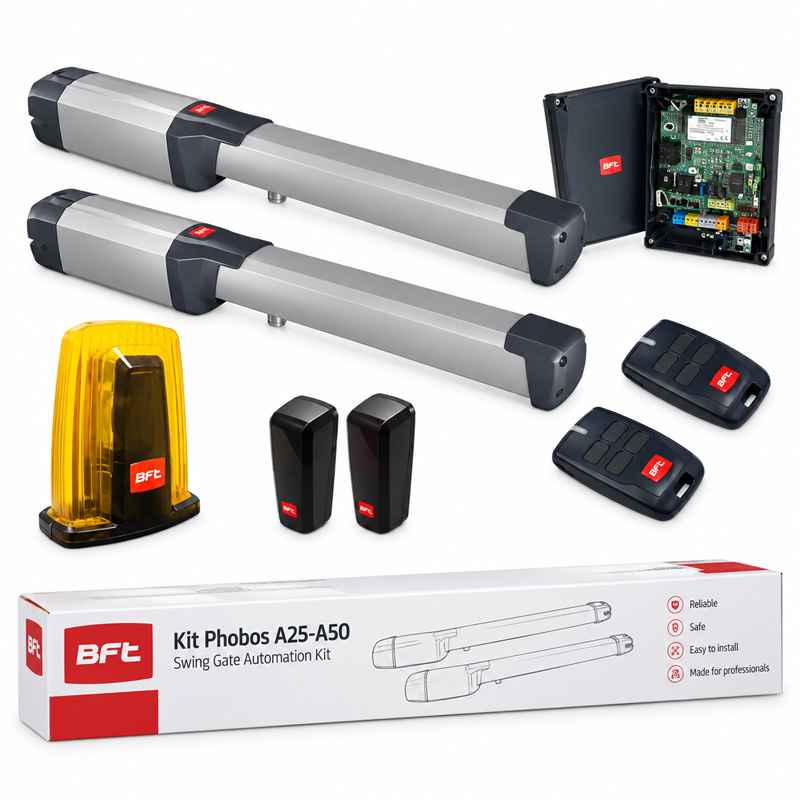

Our UAE BFT PHOBOS AC A50 Kit Includes

• 2 × BFT PHOBOS AC A50 230V swing gate motors
• 1 × BFT RIGEL 6 220–230V control panel
• 1 × Pair of adjustable photocell safety sensors
• 1 × BFT flashing warning light with antenna
• 2 × BFT MITTO remote controls
• 1 × Push button
• 2 × Motor fixing brackets

Note: The above list describes our UAE supply package. Kit contents should be confirmed when ordering because package configurations can change.

BFT PHOBOS AC A25 vs PHOBOS AC A50

BFT PHOBOS AC A50 Applications

• Large villa swing gates
• Wide residential driveway gates
• Single-leaf swing gates
• Double-leaf swing gates
• Residential compounds
• Commercial property entrances
• Large swing gate leaves up to 5 metres

BFT PHOBOS AC A50 Swing Gate Motor UAE

We supply BFT PHOBOS AC A50 swing gate motors throughout the UAE with professional installation, programming and technical support.

Supply and installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Installation Check: Before ordering, confirm the gate leaf length, approximate weight, hinge condition, opening angle, pillar dimensions, wind exposure and available mounting space to ensure the PHOBOS AC A50 is suitable for the installation.
