BFT ATHOS AC A40 400 KG Swing Gate Motor

BFT ATHOS AC A40 4M 230V Automatic Swing Gate Motor UAE

BFT ATHOS AC A40 is a robust 230V electromechanical swing gate motor designed for gate leaves measuring up to 4 metres and weighing up to 400 kg. With a 400 mm useful rod stroke, electronic clutch, automatic slowdown and mechanical locking, it is an excellent automation solution for wide residential and commercial swing gates.

The ATHOS AC A40 works with the BFT ALENA SW2 control unit and can be used for single- or double-leaf swing gate automation. Its long-stroke design makes it particularly suitable for wider gate leaves where the shorter ATHOS AC A25 is not appropriate.

BFT ATHOS AC A40 Key Features

• Genuine BFT swing gate automation
• Model: ATHOS AC A40
• Product code: P935115 00002
• 230V electromechanical swing gate operator
• Maximum gate leaf length: 4 metres
• Maximum specified gate leaf weight: 400 kg
• Power consumption: 280 W
• Useful rod stroke: 400 mm
• Maximum opening angle: 110°
• Cycle time: approximately 16 seconds
• Compatible with BFT ALENA SW2 control unit
• Electronic clutch impact management
• Opening and closing slowdown
• Mechanical locking system
• Triangle-key manual release
• Semi-intensive operation
• IP54 protection rating
• Operating temperature: -20°C to +55°C

BFT ATHOS AC A40 Technical Specifications

Automatic Swing Gates Up to 4 Metres

The BFT ATHOS AC A40 is designed for wider swing gate leaves measuring up to 4 metres and with a maximum specified weight of up to 400 kg per leaf. This makes it suitable for villa entrances, residential compounds and commercial properties requiring a long-stroke automatic swing gate operator.

The actual suitability of the motor depends on the relationship between gate length and weight, as well as hinge condition, gate construction, installation geometry, wind exposure and expected operating frequency.

230V Electromechanical Swing Gate Operator

The ATHOS AC A40 uses a 230V electromechanical motor with approximately 280 W power consumption. Its irreversible transmission provides dependable opening and closing together with mechanical locking when the automation is stationary.

The motor is designed for semi-intensive operation and provides a robust automation solution for residential and commercial swing gates.

BFT ALENA SW2 Control Unit

The ATHOS AC A40 works with the BFT ALENA SW2 control unit, which can manage compatible single- or double-leaf 230V swing gate automation.

The control system provides motor management and connections for compatible gate automation accessories including remote controls, photocell safety sensors, flashing warning lights, push buttons, key switches and access-control systems.

400 mm Long-Stroke Swing Gate Motor

One of the main advantages of the ATHOS AC A40 is its 400 mm useful rod stroke. The longer actuator stroke allows the motor to automate wider swing gate leaves up to 4 metres when installed with the correct mounting geometry.

Correct positioning of the front and rear mounting brackets is essential for achieving the required gate travel and opening angle.

Maximum 110° Gate Opening

The ATHOS AC A40 supports a maximum opening angle of approximately 110°, depending on the gate geometry and mounting dimensions.

The required opening angle should be checked before installation because pillar dimensions and bracket positions directly affect the achievable gate movement.

16-Second Cycle Time

The ATHOS AC A40 has a nominal cycle time of approximately 16 seconds. Actual gate movement time can vary depending on mounting geometry, opening angle and programmed slowdown.

Electronic Clutch and Automatic Slowdown

The operator uses an electronic clutch for force management and supports slowdown during gate movement. Correct adjustment helps provide smoother operation as the gate approaches the end of its travel.

Photocell safety sensors and other appropriate safety devices should also be installed and correctly tested as part of the complete automatic gate system.

Working-Time Travel Management

The BFT ATHOS AC A40 specification uses working-time-based travel management. It should not be described as having conventional integrated opening and closing limit switches.

Correct mechanical gate stops and proper programming of the ALENA SW2 control unit are therefore important for reliable operation and accurate gate travel.

Manual Release During Power Failure

If electrical power is unavailable, the ATHOS AC A40 can be manually disengaged using its triangle-key release mechanism. This allows the swing gate to be manually opened or closed when required.

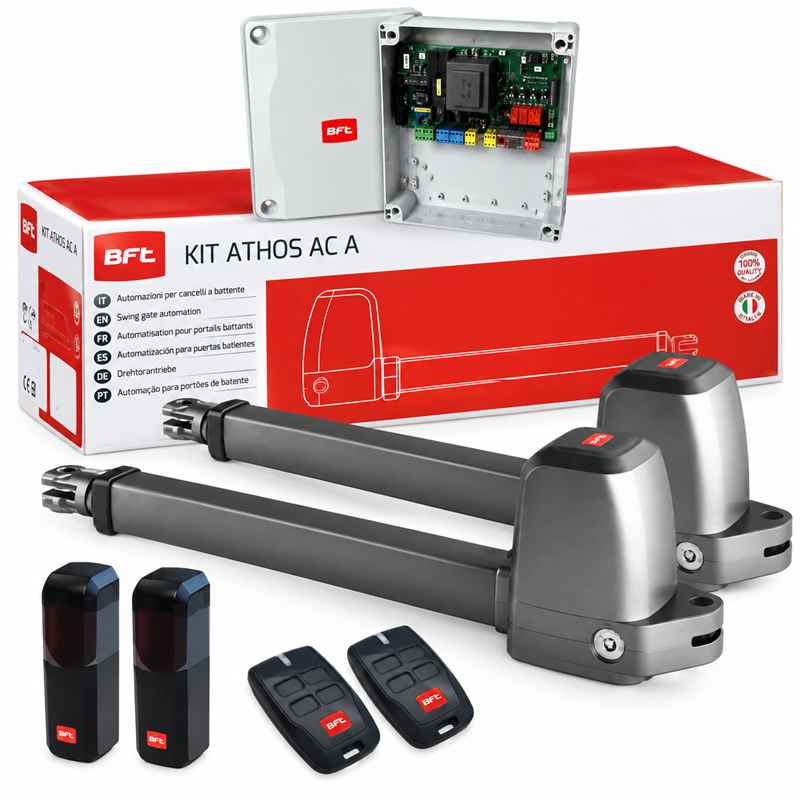

Our UAE BFT ATHOS AC A40 Kit Includes

• 2 × BFT ATHOS AC A40 swing gate motors
• 1 × BFT ALENA SW2 control board
• 1 × Pair of self-aligning photocell safety sensors
• 1 × BFT flashing warning light with antenna
• 2 × BFT remote controls
• 1 × Push button
• 2 × Motor fixing brackets

Note: The above list describes our UAE supply package. Kit contents should be confirmed when ordering because package configurations may change.

BFT ATHOS AC A25 vs ATHOS AC A40

Which ATHOS Motor Should You Choose?

Choose the ATHOS AC A25 for shorter gate leaves up to approximately 2.5 metres where its higher stated weight capacity is suitable. Choose the ATHOS AC A40 when a longer actuator stroke is required for wider gate leaves up to approximately 4 metres.

Do not select a swing gate motor using weight alone. Gate leaf length, hinge condition, wind loading, gate construction and mounting geometry are equally important.

BFT ATHOS AC A40 Applications

• Large villa swing gates
• Residential driveway gates
• Single-leaf swing gates
• Double-leaf swing gates
• Residential compounds
• Commercial property entrances
• Wide swing gate leaves up to 4 metres

BFT ATHOS AC A40 Swing Gate Motor UAE

We supply BFT ATHOS AC A40 swing gate motors throughout the UAE with professional installation, programming and technical support.

Supply and installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Installation Check: Before ordering, confirm the gate leaf length, approximate weight, hinge condition, opening angle, pillar dimensions and available mounting space to ensure the ATHOS AC A40 is suitable for the installation.
