BENINCA JM4 ESA Garage Door Opener in UAE

BENINCA JM4 ESA Garage Door Opener in UAE

BENINCA JM4 ESA Garage Door Motor:

• Made in Italy
• BENINCA JM4 ESA
• 24 VDC GEAR MOTOR FOR INTENSIVE USE,
• WITH INTEGRATED CONTROL UNIT AND ENCODER,
• Sectional garage doors 24 Vdc Up to 22 ㎡

BENINCA JM.4ESA:

• 24 Vdc gear motor for intensive use,
• with integrated control unit and encoder,
• Adjustable stroke with one mechanical stop,
• included in the belt rails and two in the chain rails,
• Anti-crushing system with amperometry obstacle detection,
• Operation guaranteed even in the event,
• of a power supply failure through batteries that integrate perfectly into the motor,
• Evolved electronics with display and energy saving courtesy light,
• The encoder guarantees maximum safety and precision while the gate is moving,
• Quick hooking system for connecting the arm to the door plate

BENINCA JM4 ESA Technical:

• Power supply 230 Vac (50-60Hz)
• Motor supply 24 Vdc
• Max absorbed current 1,5 A
• Thrust 1200 N
• Opening speed 8.9 m/min
• Duty cycle intensive use
• Protection level IP40
• Built-in control unit yes
• Integrated receiver yes
• Encoder  yes
• Limit switch electronic with encoder
• Operating temperature -20°C /+50°C
• Door surface area 22 ㎡/max
• Weight 6.6 kg

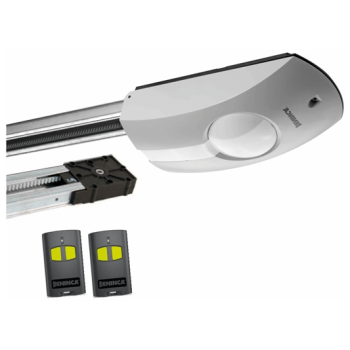

BENINCA JM4 Kits Contains:

• 1 x BENINCA JM4 Garage Door Motor.
• 1 x BENINCA Rail 4m.
• 2 x BENINCA Remote Control.
• 1 x Push Button.
• 1 x Pair of Photocells.
