BENINCA JM.3 Garage Door Opener – 600N Up to 11m²

BENINCA JM.3 600N Automatic Garage Door Opener UAE

BENINCA JM.3 is a professional 24V DC automatic garage door opener designed for residential sectional garage doors with a maximum door surface area of 11 m². The JM.3 combines 600 N thrust, intensive-use operation, integrated control electronics, encoder technology and an integrated 433.92 MHz Advanced Rolling Code receiver.

With selectable opening speeds of 6 or 12 m/min, intelligent STC power management, anti-crushing obstacle detection and integrated LED courtesy lighting, the BENINCA JM.3 provides smooth, safe and precise automatic garage door operation for villas and residential properties throughout the UAE.

BENINCA JM.3 Key Features

• Genuine BENINCA automatic garage door opener
• Model: JM.3
• Designed for residential sectional garage doors
• Maximum door surface area: 11 m²
• 24V DC motor
• 600 N thrust
• Selectable opening speed: 6 or 12 m/min
• Designed for intensive use
• Integrated CP.J3-SW control unit
• Integrated 433.92 MHz radio receiver
• Advanced Rolling Code (ARC) radio coding
• Stores up to 64 compatible transmitters
• Integrated encoder for precise door movement
• Electronic limit switch managed by encoder
• STC intelligent power control system
• Automatic torque calculation throughout the door travel
• Anti-crushing safety with amperometric obstacle detection
• Separate electronic opening and closing speed adjustment
• Adjustable slowdowns
• Integrated LED courtesy light with 14 LEDs
• Optional integrated backup batteries
• ESA+ energy-saving system
• Prepared for X.BE KNX and Q.BE MQTT accessories
• Compatible with BeUP app and PRO.UP interface
• Operating temperature from -20°C to +50°C

BENINCA JM.3 Technical Specifications

Garage Door Opener for Sectional Doors Up to 11 m²

The BENINCA JM.3 is designed for residential sectional garage doors with a maximum surface area of 11 m². Correct motor selection should consider the total door size, door balance, spring condition, track condition and operating frequency.

A sectional garage door should be correctly balanced mechanically before installing an automatic opener. The motor should automate the door movement rather than compensate for damaged springs or excessive mechanical resistance.

600 N Garage Door Motor

The JM.3 provides 600 N thrust for smooth automatic opening and closing of correctly balanced sectional garage doors.

Its 24V DC motor is designed for intensive use while the integrated control electronics continuously manage the movement and power required throughout the door travel.

6 & 12 m/min Adjustable Opening Speed

The BENINCA JM.3 supports opening speeds of 6 and 12 m/min. Opening speed can also be managed separately from closing speed through the integrated control electronics.

This provides greater flexibility when configuring the garage door for smooth, comfortable and safe operation.

Encoder for Precise Garage Door Movement

The JM.3 incorporates an integrated encoder that provides accurate monitoring of the garage door position throughout the opening and closing cycle.

The electronic limit-switch system uses encoder information to provide precise movement management and reliable stopping positions.

STC Intelligent Power Control

BENINCA's STC System dynamically manages motor torque according to the position and actual operating requirements of the garage door.

The system can identify points where additional force is required and automatically manage torque according to the measured performance of the door, improving movement precision and safety.

Anti-Crushing Obstacle Detection

The CP.J3-SW control system combines amperometric obstacle detection with encoder management. This provides anti-crushing protection by monitoring motor load and door movement during operation.

Photocell safety sensors can also be connected for additional entrance protection.

Integrated 433.92 MHz ARC Receiver

The BENINCA JM.3 incorporates a 433.92 MHz radio receiver capable of storing up to 64 compatible transmitters.

The current JM.3 receiver uses BENINCA Advanced Rolling Code (ARC) radio coding for secure remote-control operation.

Integrated 14-LED Courtesy Light

The JM.3 includes a built-in service light with 14 LEDs for high light output inside the garage.

The courtesy light can also be activated from a compatible transmitter in bistable or timed mode, allowing it to function as a practical ceiling light independently of door movement.

Optional Backup Battery Operation

Optional backup batteries can be integrated inside the JM.3 motor housing. BENINCA specifies support for 2 × 1.2 Ah batteries, allowing garage door operation during a mains power failure when the required battery charger and batteries are installed.

CP.J3-SW Integrated Control Unit

The BENINCA JM.3 includes the CP.J3-SW control unit. It supports automatic, semi-automatic and dead-man operating logic together with step-by-step, stop and photocell inputs.

The controller also provides automatic operating-parameter setup, electronic torque adjustment, separate opening and closing speed adjustments, adjustable slowdowns, flashing-light output and the ESA+ energy-saving system.

Smart Automation & BeUP Compatibility

The current JM.3 platform is prepared for connection of compatible X.BE KNX and Q.BE MQTT accessories.

Using the compatible PRO.UP interface and BeUP app, professional installers can access advanced programming, diagnostics, operation counters, firmware updates, radio-control management and system-status functions.

Quick Garage Door Connection System

The JM.3 uses a quick hooking system for connecting the operating arm to the garage door plate, helping simplify professional installation and servicing.

Door travel is adjustable using mechanical stops in the rail. BENINCA specifies one mechanical stop with belt rails and two with chain rails.

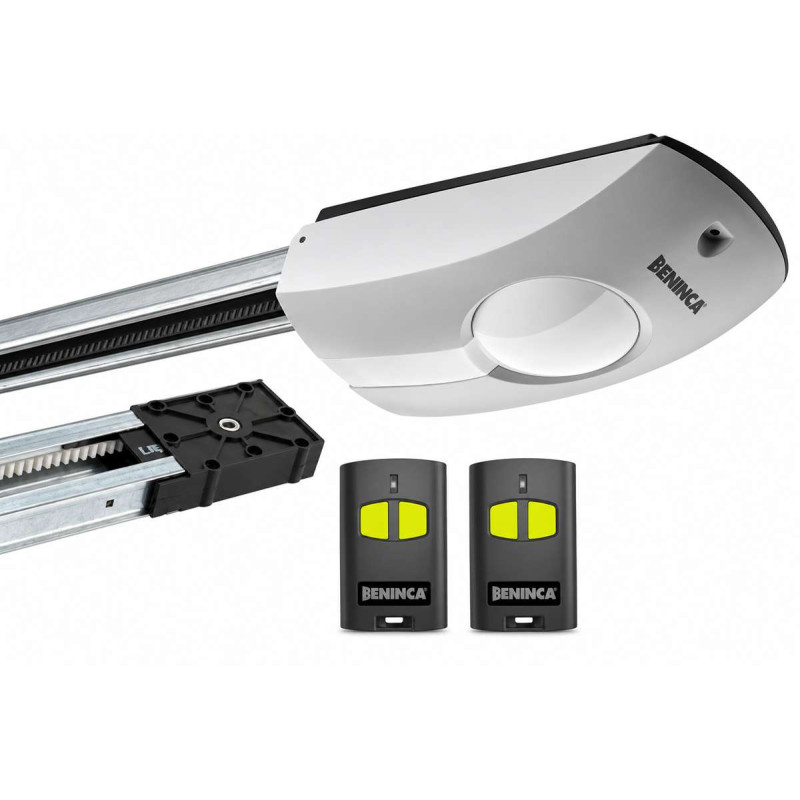

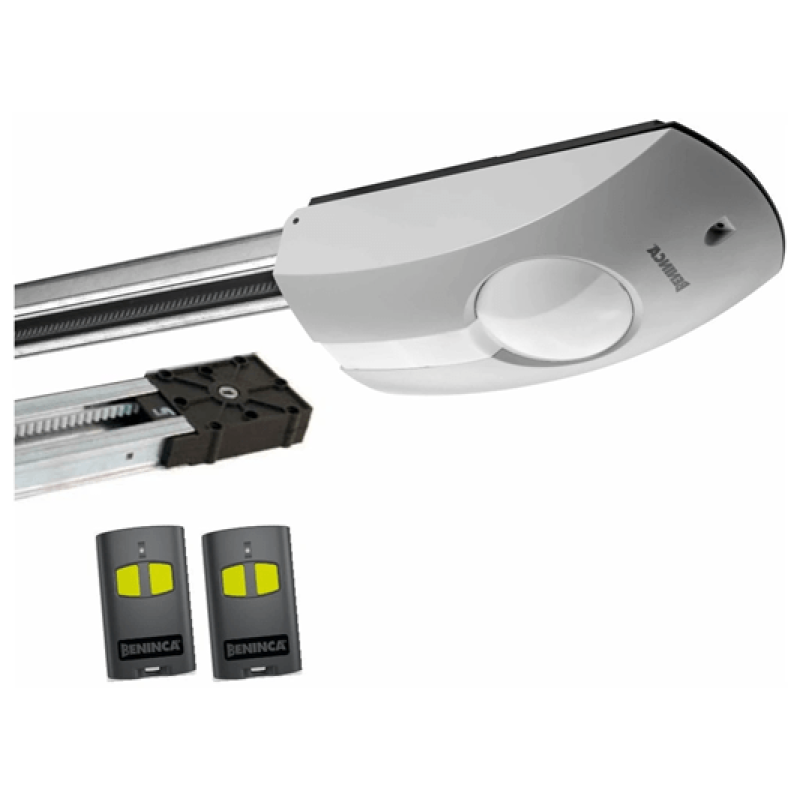

Our UAE BENINCA JM.3 Package Includes

• 1 × BENINCA JM.3 Garage Door Motor
• 1 × 3 Metre Belt Rail
• 2 × BENINCA Remote Controls
• 1 × Pair Photocell Safety Sensors
• 1 × Push Button
• Garage Door Fixing Brackets

Note: This is our UAE package configuration and is not necessarily the standard BENINCA factory package. Confirm the rail length and exact supplied accessories when ordering.

BENINCA JM.3 Applications

• Villa sectional garage doors
• Residential automatic garage doors
• Single residential garages
• Sectional overhead garage doors
• Automatic villa garage entrances
• Residential garage automation systems

BENINCA JM.3 Supply & Installation UAE

We supply BENINCA JM.3 automatic garage door openers throughout the UAE with professional installation, replacement and technical support available according to site requirements.

Supply and installation are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

For correct garage door opener selection, provide the door width, door height, approximate door weight, rail requirement and clear photos of the existing sectional garage door before ordering.
