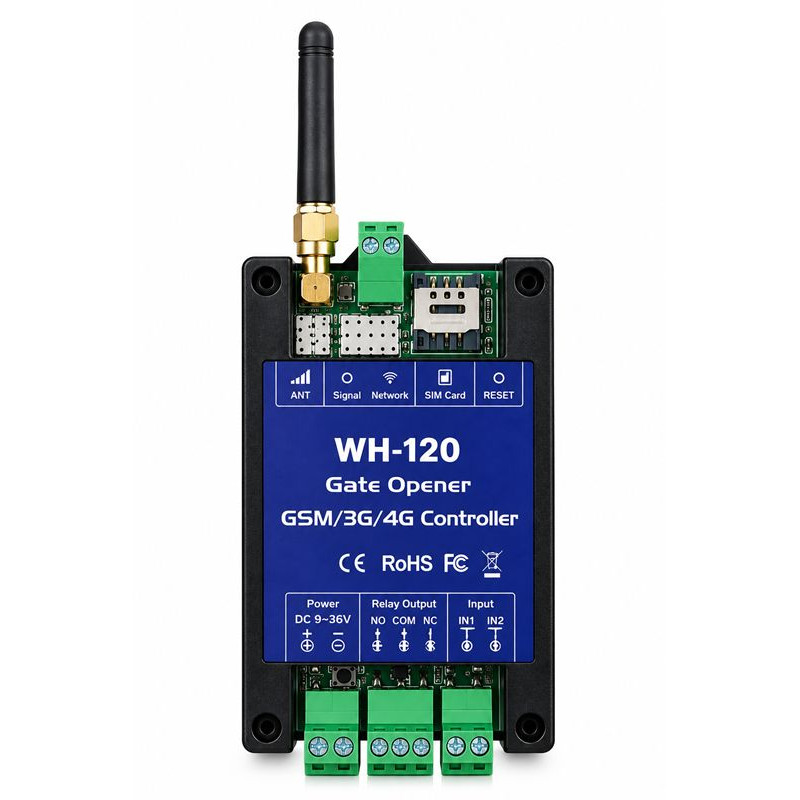

WH-120 3G GSM Gate Opener Controller
Price 150 AEDIn Stock
WH-120 3G SIM Card GSM Gate Opener UAE
WH-120 3G GSM Gate Opener is a SIM-card-based remote access controller designed to operate automatic gates, parking barriers, garage doors, rolling shutters and compatible access control systems using a mobile phone.
Authorized users can activate the connected automation simply by calling the SIM card installed inside the WH-120. Because access is provided through the mobile network rather than a conventional short-range gate remote, the controller can be operated from any location where compatible mobile network service is available.
The WH-120 supports up to 200 authorized phone numbers, uses a Nano SIM card, provides NO/NC relay contacts and supports user management through SMS commands.
WH-120 3G GSM Gate Opener Key Features
- Mobile phone controlled automatic gate opener
- Model: WH-120 3G
- SIM-card-based access control
- Supports up to 200 authorized users
- Open gate by authorized mobile phone call
- Remote user management through SMS commands
- No conventional gate remote required for GSM access
- No normal radio remote-control distance limitation
- Caller-ID-based user authorization
- Nano SIM card support
- Wide DC 9V–36V power input
- Normally Open and Normally Closed relay contacts
- Adjustable relay activation time: 0–900 seconds
- External wired push-button input supported
- External 50Ω SMA antenna
- Suitable for gates, barriers, garage doors and access systems
WH-120 3G Technical Specifications
| Model | WH-120 3G |
| Product Type | GSM / SIM Card Gate Access Controller |
| User Capacity | Up to 200 Authorized Numbers |
| GSM Bands | 850 / 900 / 1800 / 1900 MHz |
| Power Supply | DC 9V–36V / 1A |
| Maximum Power Consumption | 50 mA |
| Average Power Consumption | 25 mA |
| SIM Card | Nano SIM, 3V |
| Antenna | 50Ω SMA |
| Relay Rating | 3A / 250V AC, 20A / 14V DC |
| Relay Contacts | NO / NC |
| Relay Activation Time | 0–900 Seconds Adjustable |
| Wired Switch Input | Supported |
| Operating Temperature | -10°C to +60°C |
| Relative Humidity | 10%–90% RH |
| Dimensions | 80 × 49 × 30 mm |
| Net Weight | Approx. 90 g |
Open Automatic Gates by Mobile Phone
The WH-120 GSM gate opener allows an authorized mobile phone number to operate a connected automatic gate. A Nano SIM card is installed inside the controller and approved telephone numbers are stored in the device.
When an authorized user calls the SIM number, the controller identifies the incoming caller and activates its relay. The relay then sends the required trigger command to the compatible gate control board.
Up to 200 Authorized Users
The WH-120 supports up to 200 authorized phone numbers, making it suitable for villas as well as properties where multiple residents, employees or drivers require gate access.
Authorized numbers can be added or removed using supported SMS programming commands, reducing the need to provide every user with a physical gate remote.
No Normal Remote Control Distance Limit
A conventional gate remote normally operates only within radio range of the receiver. The WH-120 communicates through the mobile network, so authorized users are not limited by the normal range of a handheld gate transmitter.
Operation depends on compatible mobile-network service being available to both the installed SIM and the user's phone.
NO / NC Relay Output
The WH-120 provides Normally Open (NO) and Normally Closed (NC) relay contacts for integration with compatible gate automation and access-control equipment.
For most automatic gate motors and parking barriers, the relay is connected to the appropriate push-button, START, OPEN or step-by-step command input according to the control-board requirements.
Adjustable Relay Time
The relay activation period can be configured from approximately 0 to 900 seconds. For a standard automatic gate trigger, a short pulse is normally used, while other access-control applications may require a longer relay activation period.
WH-120 3G Compatible Applications
- Sliding gate motors
- Swing gate motors
- Parking gate barriers
- Garage door openers
- Rolling shutter motors
- Automatic doors
- Electric locks
- Vehicle access-control systems
- Residential villa gates
- Commercial and industrial entrances
WH-120 3G vs WH-120 PRO 4G
| Feature | WH-120 3G | WH-120 PRO 4G |
|---|---|---|
| Network Generation | Legacy GSM / 3G Variant | 4G LTE + GSM |
| SIM Card | Nano SIM | Nano SIM |
| User Capacity | Up to 200 | Version dependent |
| DC Input | 9–36V DC | 9–36V DC |
| Mobile Call Access | Yes | Yes |
| SMS User Management | Yes | Yes |
Important Network Compatibility
Before ordering a WH-120 3G/GSM controller, confirm that the exact SIM card and mobile network you intend to use support the network technology and frequency bands of the supplied unit.
Mobile operators can change or retire older network technologies over time. For new installations where long-term mobile-network compatibility is important, compare the WH-120 3G with a compatible 4G LTE GSM gate opener before purchasing.
WH-120 3G GSM Gate Opener UAE
We supply WH-120 GSM gate openers throughout the UAE for automatic sliding gates, swing gates, parking barriers, garage doors and compatible access-control systems.
Supply, professional installation, wiring and programming support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm your SIM/network compatibility, gate control-board trigger input and required supply voltage before installation.
