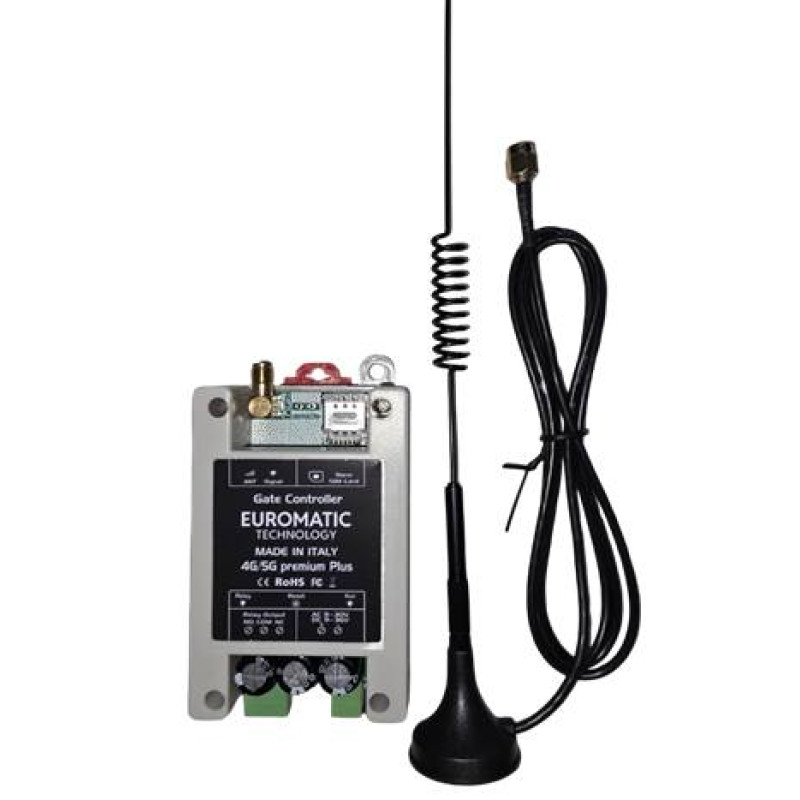

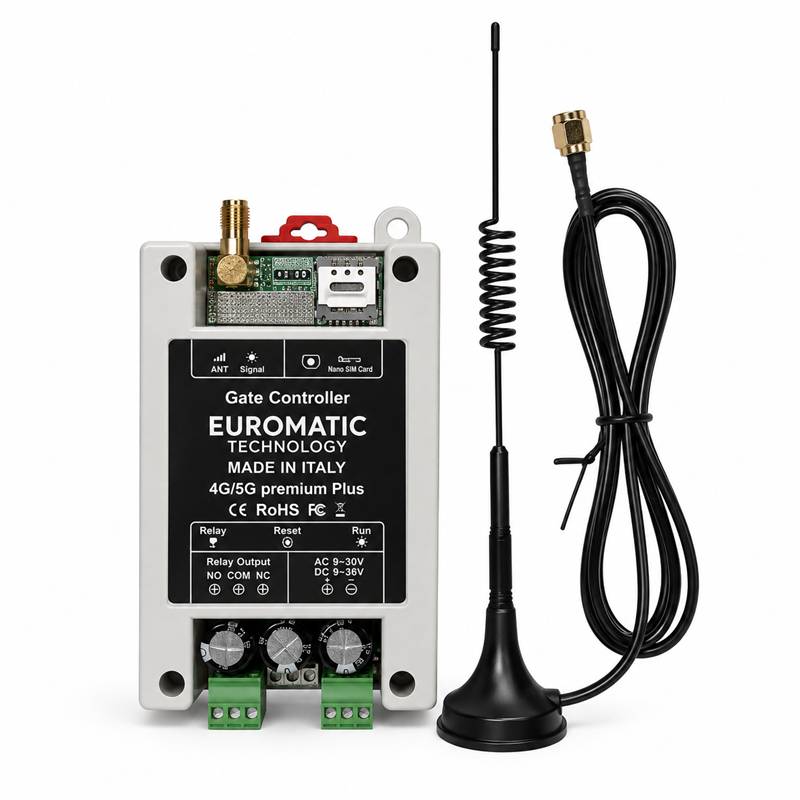

5G GSM Gate Opener – Mobile Phone Gate Access Controller

5G GSM Gate Opener for Automatic Gates & Barriers UAE

The 5G GSM Gate Opener is a smart mobile phone access controller designed for automatic gates, garage doors, parking barriers, rolling shutters and compatible access control systems. It allows authorised users to operate a connected gate using a mobile phone call or SMS, eliminating the need to carry a traditional gate remote control.

Simply install a compatible SIM card in the GSM controller and configure the authorised telephone numbers. When an approved user calls the controller, the system identifies the caller and activates the connected relay to trigger the gate, barrier or door control input.

Because access is provided through the mobile network rather than a short-range radio remote, the system can be operated from virtually anywhere where the controller and user's phone have suitable network service.

5G GSM Gate Opener Key Features

• Mobile phone access control for automatic gates
• 5G GSM mobile network solution
• Gate operation by phone call
• Supports SMS control and programming
• No traditional gate remote required
• No short-range remote-control distance limitation
• Secure access using authorised telephone numbers
• Supports multiple authorised users
• Users can be added or removed through supported SMS commands
• Relay output for connection to compatible automation control boards
• Suitable for new and existing gate automation systems
• Compact controller design
• Suitable for residential, commercial and industrial access control

5G GSM Gate Opener Technical Information

Important: Exact mobile bands, power-input range, relay rating, SIM format and maximum authorised-user capacity can vary by hardware version. Check the label or manual supplied with the unit before installation.

Open Your Automatic Gate by Mobile Phone

The 5G GSM Gate Opener provides a convenient alternative to traditional gate remote controls. An authorised user can call the SIM number installed in the controller, and the controller verifies the incoming telephone number before activating its relay output.

The relay can be connected to the START, STEP-BY-STEP, OPEN or compatible trigger input of an automatic gate control board. This allows the GSM controller to operate the automation in a similar way to a wired push button.

Secure Authorised Number Access

Access can be restricted to approved mobile telephone numbers. When caller-ID authentication is enabled, only registered users are permitted to activate the relay.

This makes a GSM gate opener particularly useful for villas, offices, residential compounds, warehouses, factories and parking areas where access needs to be provided to multiple authorised users without distributing additional remote controls.

No Remote Control Distance Limitation

A conventional gate remote normally requires the user to be physically close to the receiver. A GSM gate opener communicates through the mobile network, so access is not restricted to the short radio range of a handheld remote.

The gate can therefore be operated from another location provided the controller has suitable mobile network service and the user's phone can communicate with it.

Phone Call & SMS Gate Control

The controller supports mobile phone access using calls and supported SMS commands. SMS programming can also be used on compatible versions to manage authorised telephone numbers and controller settings.

This provides a practical way to add or remove users without replacing or physically collecting gate remote controls.

5G GSM Gate Opener for Sliding Gates

The GSM controller can be connected to compatible automatic sliding gate motors through the control board's low-voltage command input. It can therefore be used with many residential, commercial and industrial sliding gate automation systems.

5G GSM Gate Opener for Swing Gates

The controller is also suitable for compatible automatic swing gate motors. Once connected to the appropriate command input, authorised users can activate the swing gate using their mobile phone.

5G GSM Gate Opener for Parking Barriers

A GSM gate controller is an excellent access solution for automatic parking barriers and boom gates. Authorised staff, residents or visitors can activate the barrier using their registered telephone number.

It can also be combined with other access-control equipment such as remote controls, RFID readers, UHF vehicle tags, keypads and vehicle loop detectors.

Garage Door & Rolling Shutter Control

The relay output can also be connected to compatible garage door openers and rolling shutter control systems. This provides mobile phone access without requiring users to carry a separate garage or shutter remote.

Compatible Gate Automation Brands

Because the GSM controller operates through a relay contact, it can be integrated with many compatible gate automation control boards that provide an external command input.

• NICE gate motors
• BFT gate motors
• CAME gate motors
• FAAC gate motors
• LIFE gate motors
• BENINCA gate motors
• CENTURION gate motors
• DEA gate motors
• ROGER TECHNOLOGY gate motors
• EUROMATIC gate motors
• Compatible garage door and barrier control boards

Compatibility depends on the control board having a suitable external command input. Wiring should be confirmed from the automation manufacturer's manual before connection.

5G GSM Gate Opener Applications

• Automatic sliding gates
• Automatic swing gates
• Garage door openers
• Parking gate barriers
• Boom barriers
• Rolling shutters
• Access control doors
• Residential villas
• Apartment buildings
• Residential compounds
• Office buildings
• Warehouses
• Factories
• Industrial facilities
• Staff parking entrances

5G GSM Gate Opener Installation

Installation normally involves providing the GSM controller with the correct power supply, installing an active compatible SIM card, connecting the relay contacts to the gate control board and programming the authorised telephone numbers.

The GSM relay should normally be connected to the automation's designated low-voltage control input rather than directly to the gate motor. Always follow the wiring instructions for both the GSM controller and the gate automation control panel.

5G GSM Gate Opener UAE

We supply 5G GSM Gate Openers throughout the UAE for automatic gates, parking barriers, garage doors, rolling shutters and compatible access control systems.

Professional supply, installation, programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the mobile network requirements, SIM compatibility, power supply and the trigger input available on your gate or barrier control board.
