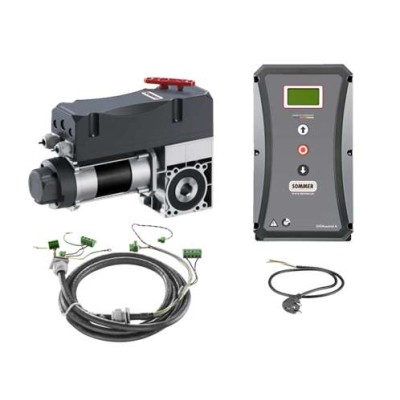

SOMMER GIGALINE Industrial Door Opener in UAE
- Garage door operator GIGAline
- The garage door operator for heavy loads and challenging operating conditions.
- Industrial Door Operator with Frequency Converter
- The track is driven by an industrial door operator with a frequency converter.
Technical Data:
- Rated voltage : 1~230 V
- Rated frequency : 50-60 Hz
- Rated current : 3.45 A
- Temperature min. : -5 °C
- Temperature max : 60 °C
- Protection class : IP54
- Output torque : 100 Nm
- Switching capacity : 1.5 kW
- Limit stop range : 14
- Output speed : 35 rpm
- Max. door width / door height sectional door : 8,000 mm / 3,500 mm
- Travel length (standard) : 3,060 mm
- Max. travel length extended : 4,160 mm
- Max. door weight : 500 kg
- Max. running speed : 210 mm/s
- Max. recommended no. of spaces : 100
