SOMMER 4020 Classic Remote Control 868.8 MHz
Price 50 AEDIn Stock
SOMMER 4020 Classic Remote Control UAE

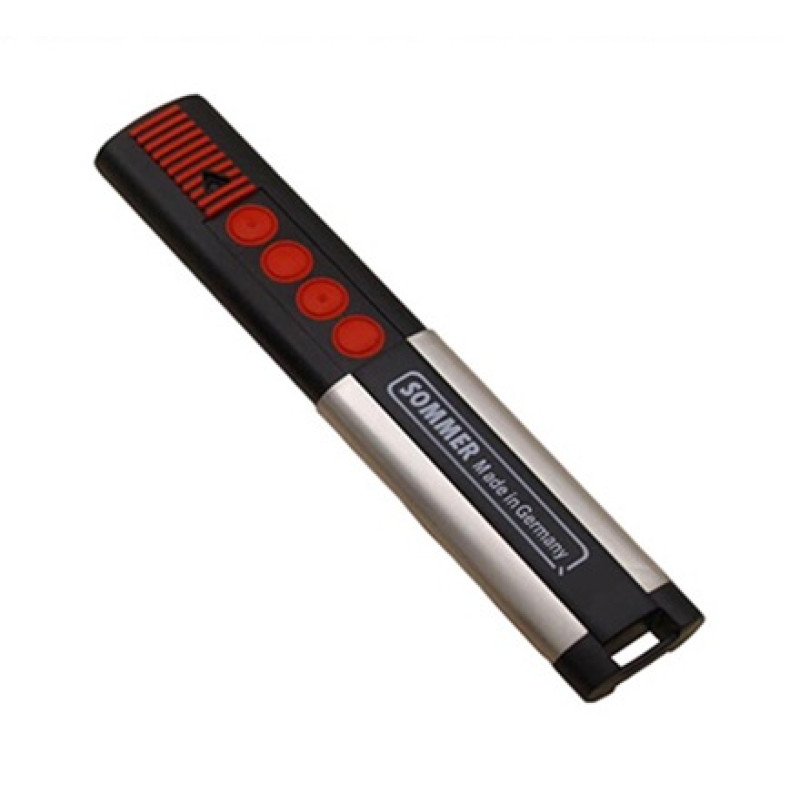

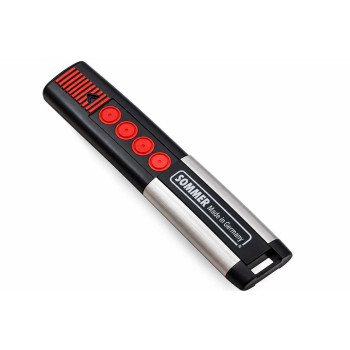

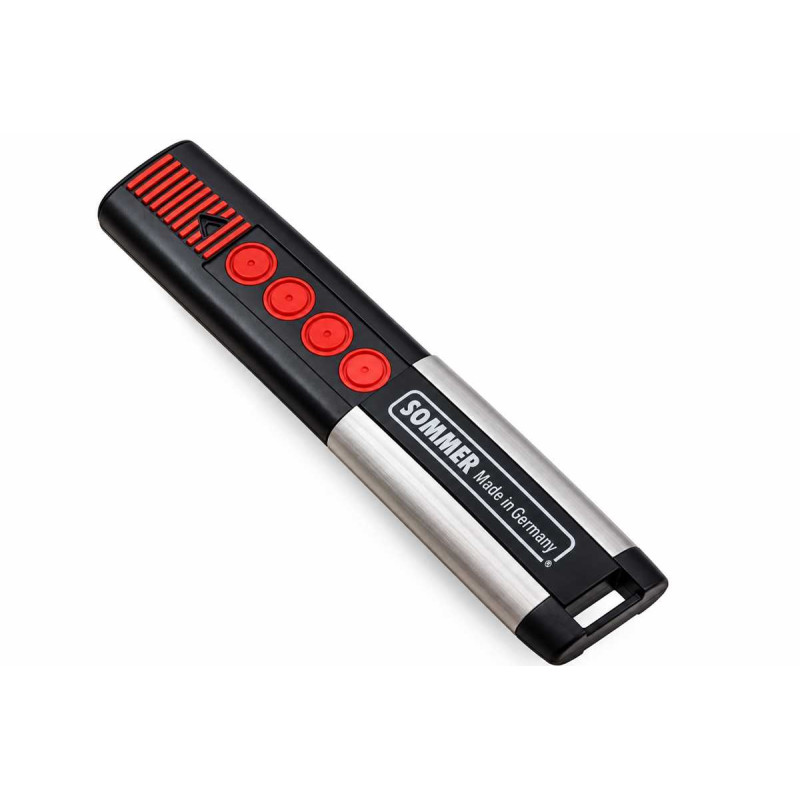

SOMMER 4020 Classic is an original 4-command gate and garage door remote control designed for compatible SOMMER automation systems using 868.8 MHz SOMloq Rollingcode radio technology. Identified by SOMMER article number 4020V000, this compact handheld transmitter can be used as a replacement or additional remote for compatible SOMMER gate motors, garage door openers and radio receivers.
The SOMMER 4020 features four command buttons, an approximate operating range of up to 50 metres depending on the surroundings, a slide-open protective housing and a standard 3V CR2032 battery.
SOMMER 4020 Remote Control Key Features
- Original SOMMER remote control
- Model: 4020 Classic
- Article number: 4020V000
- 4-command / 4-button transmitter
- Radio frequency: 868.8 MHz
- Radio technology: SOMloq Rollingcode
- Approximate range: 50 metres*
- Battery: 3V CR2032
- Dimensions: 87 × 24 × 16 mm closed
- Operating temperature: -10°C to +70°C
- Black and red SOMMER design
- Slide-open protective housing
- Stainless-steel design
- Button protection helps prevent accidental operation
- Suitable for compatible SOMMER gate automation
- Suitable for compatible SOMMER garage door openers
- Suitable as a replacement or additional compatible transmitter
*Actual radio range depends on the receiver, antenna position, buildings, walls, metal structures, electrical interference and surrounding environment.
SOMMER 4020V000 Technical Specifications
| Brand | SOMMER |
| Model | 4020 Classic |
| Article Number | 4020V000 |
| Product Type | Handheld Remote Control / Radio Transmitter |
| Number of Commands | 4 |
| Radio Frequency | 868.8 MHz |
| Radio Technology | SOMloq Rollingcode |
| Operating Range | Approx. 50 m* |
| Battery | CR2032 |
| Battery Voltage | 3V |
| Dimensions | 87 × 24 × 16 mm (closed) |
| Operating Temperature | -10°C to +70°C |
| Colour | Black / Red |
| Housing | Slide-Open Stainless-Steel Design |
| Application | Compatible SOMMER Gate & Garage Door Automation |
SOMMER 4020 868.8 MHz Remote Control
The SOMMER 4020 Classic operates at 868.8 MHz and uses SOMMER's SOMloq Rollingcode radio technology. It must be paired with a compatible SOMMER receiver before it can operate an automatic gate or garage door.
Before purchasing a replacement transmitter, confirm that the existing automation receiver supports 868.8 MHz SOMloq.
4-Button SOMMER Gate Remote
The SOMMER 4020 provides four independent command buttons. Depending on the receiver and automation configuration, these buttons can be programmed for compatible gate, garage door or other SOMMER radio-controlled functions.
This can allow one transmitter to control more than one compatible automation system where the required receivers are installed and correctly programmed.
SOMloq Rollingcode Technology
The SOMMER 4020 uses SOMloq Rollingcode technology rather than a basic fixed-code radio system. The rolling-code system is designed for secure communication between compatible SOMMER transmitters and receivers.
This radio technology is an important compatibility requirement when selecting a replacement SOMMER remote.
Approximately 50 Metre Radio Range
SOMMER specifies an operating range of approximately 50 metres, depending on the surrounding environment.
Actual operating distance may be reduced by concrete walls, metal gates, buildings, electrical interference, receiver location, antenna positioning and battery condition.
Slide-Open Protective Housing
The SOMMER 4020 Classic features a distinctive slide-open housing with a stainless-steel design. When closed, the housing protects the control buttons and helps prevent accidental gate or garage door activation.
The closed transmitter measures only 87 × 24 × 16 mm, making it convenient for everyday use in a vehicle, pocket or bag.
CR2032 3V Battery
The SOMMER 4020 is powered by a standard 3V CR2032 battery. This battery can be replaced when the transmitter becomes weak or the operating range noticeably decreases.
If replacing the battery does not restore normal operation, the transmitter programming, receiver and radio system should also be checked.
SOMMER Gate Motor Remote Control
The SOMMER 4020 can be used with compatible SOMMER automatic gate systems equipped with an appropriate 868.8 MHz SOMloq radio receiver.
Compatibility is determined mainly by the installed radio receiver and radio technology, not simply by the SOMMER name on the gate motor.
SOMMER Garage Door Remote Control
The 4020 Classic is also designed for compatible SOMMER garage door opener systems using the corresponding 868.8 MHz SOMloq receiver.
It can be used as an additional remote for family members, staff or authorised users, or as a replacement for an existing compatible transmitter.
Replacement SOMMER 4020 Remote Control
The SOMMER 4020V000 is suitable as a replacement when an existing compatible 4020 Classic remote has been lost, damaged or is no longer operating correctly.
Before ordering, compare the article number, radio frequency and radio technology of the existing remote or receiver. Similar appearance alone does not confirm compatibility.
Additional SOMMER Remote Control
An additional SOMMER 4020 can be programmed into a compatible receiver for another authorised user. The total number of remotes that can be stored depends on the memory capacity of the installed receiver.
SOMMER 4020 Remote Programming
The SOMMER 4020 must be learned into the compatible radio receiver before use. Programming is normally carried out using the receiver's learning function and the selected button on the transmitter.
The exact programming procedure varies according to the SOMMER gate motor, garage door opener or external radio receiver installed at the property. Always identify the receiver before starting programming.
SOMMER 4020 vs SOMloq2 Remote Controls
Important: The SOMMER 4020 Classic is an 868.8 MHz SOMloq Rollingcode transmitter. It should not be confused with newer SOMMER transmitters using SOMloq2 868.95 MHz technology.
Do not purchase a remote based only on the SOMMER brand or a similar radio frequency. Confirm the radio system used by the installed receiver before ordering.
Check Compatibility Before Ordering
Before purchasing the SOMMER 4020, check the following information:
- Existing remote model or article number
- Receiver radio frequency
- SOMloq radio compatibility
- Gate motor or garage door opener model
- Receiver model where available
If you are unsure, provide clear photos of the existing SOMMER remote control, gate or garage motor and radio receiver so compatibility can be checked before ordering.
SOMMER 4020 Remote Control UAE
We supply SOMMER 4020 Classic remote controls throughout the UAE for compatible SOMMER automatic gates and garage door openers.
Remote supply, programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm that your existing receiver uses 868.8 MHz SOMloq Rollingcode. The SOMMER 4020 should not be assumed compatible with newer SOMloq2 systems.
