Automatic Rolling Shutter Tubular Motor Controller in UAE

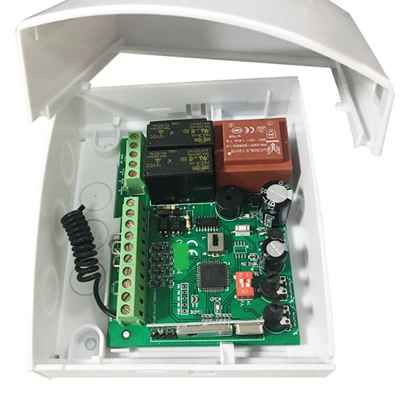

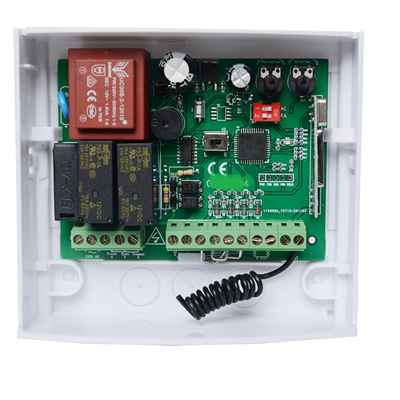

• Rolling Shutter Tubular Motor Controller:
• Rolling shutter is a controller dedicated to electric door control,
• with functions such as setting stroke,
• automatic door closing with delay, bounce upon resistance,
• over-current detection, limit switch and other functions.
• It is widely used in garage doors, supermarkets and other places.

Features:

• Remote control : 433M 1527
• Auto close delay time: 5-120S
• running/ Journey time: 0-120s
• hand switch: open-close-stop-open-close.. recycle
• Photocell: auto open after checked some resistance
• Momentary mode when close , you can choose if you want this function via the
• DIP switch 2 ( ON : momentary mode open)

Specification:

• Working voltage : 220V AC
• Output voltage: 220V AC
• Working Freuqency: 433.92Mhz
• Max running time: 120s
• Memory: 30 pcs remote control
• Controller provides a +12V DC power putput terminal VCC,
• All signal input is 5V.

Dip switch function:

• DIP switch 1 ( AC): auto-close delay time function setting,
• ON with function and OFF without that function.
• DIP switch 2: close momentary function setting
• ON with function and OFF without that function.
• when the motor open time more than the running time you setting ,
• the motor will stop work and will not do the auto-close function.
