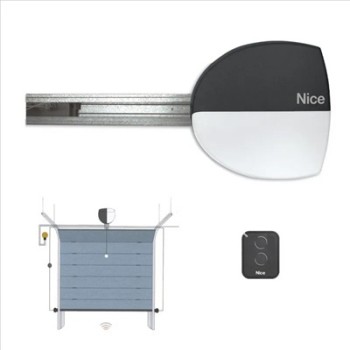

NICE SPIN BUS Garage Door Motor:

• SPIN22BDKCE
• Kit for automating sectional doors with belt drive.
• Recommended for sectional garage doors up to 10.5 m2 and up to 3.4 m high.
• The guide rail with belt ensures quiet and reliable operation.
• built-in control unit with BLUEBUS technology,

• allowing you to connect additional devices with just two wires without polarity
• The amperometry obstacle detection system is used to detect possible
• obstacles that may occur during the normal movement of the gate.
• With this function, in case of an obstacle,
• the drive will stop the leaf and reverse the direction.
• electronic speed control - adjustable acceleration and deceleration,
• adjustable at the beginning and end of the maneuver
• when the system is not in use, the drive goes into standby mode,
• which reduces power consumption

Description:

• For sectional doors up to 12.5m² and up-and-over garage doors up to 11.2m²
• Nice BlueBUS technology.
• 230Vac irreversible electromechanical gear motor,
• for residential use, with belt drive, 24Vdc motor with magnetic encoder.
• Complete with track in 3x1m pieces.

Technical Data:

• Power Supply: 230 Vac 50 Hz
• Motor Voltage: 24Vdc
• Battery backup option: Yes
• Force (N): 800N
• BlueBUS technology: Yes
• Solar Power Option: Yes
• Work Cycle: 50 Cycles/Day
• IP rating: 40
• Operating Limits
• Up and Over Door – Height: 2.2m   Width: 3m
• projecting up-and-over door – Height: 2.8m   Width: 3m
• Sectional – Height: 2.5m   Width: 3.5m.
• Advantages of the Spin22 model:
