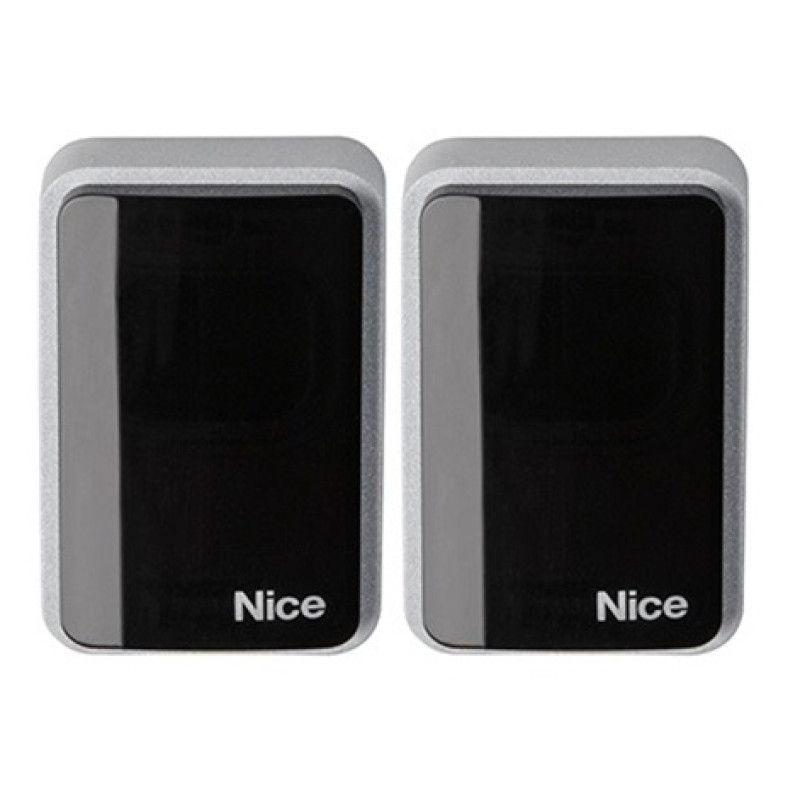

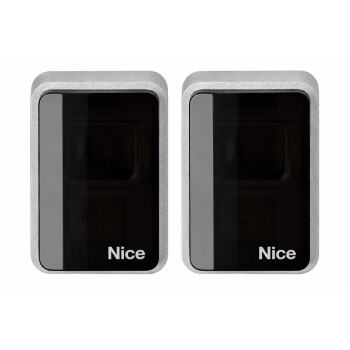

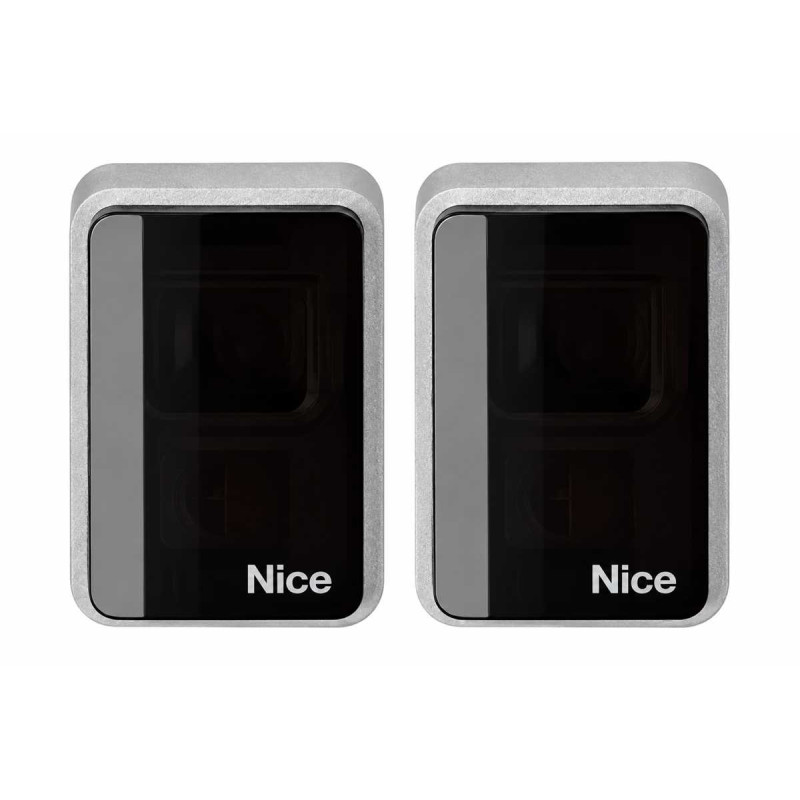

NICE EPM 15M Photocell Safety Sensor
Price 200 AEDIn Stock
NICE EPM 15M Infrared Photocell Safety Sensor UAE
NICE EPM is a professional infrared photocell safety sensor designed for automatic sliding gates, swing gates, garage doors and compatible gate automation systems. Supplied as a transmitter and receiver pair, the EPM creates an infrared safety beam across the gate opening to detect vehicles, people and other obstacles.
With a nominal operating range of up to 15 metres, 24V AC/DC power supply, synchronized photocell technology and IP44 protection, NICE EPM provides reliable obstacle detection for residential and commercial automatic gate installations.
NICE EPM Key Features
- Original NICE EPM photocell safety sensors
- Supplied as a pair – transmitter and receiver
- Maximum nominal range: 15 metres
- Power supply: 24V AC/DC
- Synchronized infrared photocell technology
- Helps avoid interference between adjacent photocell pairs
- Relay safety output
- Maximum relay contact: 500 mA / 48V
- Protection rating: IP44
- Operating temperature: -20°C to +50°C
- Surface-mounted installation
- Durable ABS housing
- Suitable for outdoor gate automation installations
- Suitable for compatible NICE gate and door automation systems
NICE EPM Technical Specifications
| Brand | NICE |
| Model | EPM |
| Product Type | Infrared Gate Safety Photocell |
| Configuration | Transmitter + Receiver Pair |
| Maximum Range | 15 m |
| Power Supply | 24V AC/DC |
| Nominal Current – RX | 25 mA |
| Nominal Current – TX | 30 mA |
| Relay Contact Rating | Max. 500 mA / 48V |
| Technology | Synchronized Infrared Beam |
| Installation | Surface Mounted |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +50°C |
| Dimensions | 50 × 29 × 80 mm |
| Housing | ABS |
15 Metre Infrared Gate Safety Detection
The NICE EPM provides an infrared safety beam with a nominal operating distance of up to 15 metres. The transmitter and receiver are installed opposite each other across the protected gate opening.
When a vehicle, person or other obstacle interrupts the infrared beam, the photocell relay changes state and sends a signal to the connected automation control panel. The exact gate response depends on the safety input and control-panel programming.
Synchronized NICE Photocell Technology
NICE EPM uses synchronized photocell technology designed to improve reliability when multiple safety photocell pairs are installed in the same automation system.
Automatic synchronization helps reduce interference between nearby photocell pairs, making the EPM suitable for more complex automatic gate installations where multiple safety beams are required.
24V AC/DC Power Supply
The NICE EPM operates from a 24V AC/DC power supply, allowing it to be connected to compatible NICE control boards and other suitable automation controllers providing the required accessory supply voltage.
Before installation, always verify the photocell accessory output voltage and safety-input terminals of the gate control panel.
Relay Output Photocell
The EPM uses a conventional relay output for connection to compatible safety inputs. The relay contact is rated up to 500 mA at 48V.
This conventional wired design is important when selecting between NICE EPM and NICE EPMB. The EPM should be used where a traditional relay-contact photocell connection is required.
NICE EPM vs NICE EPMB
| Feature | NICE EPM | NICE EPMB |
|---|---|---|
| Connection | Traditional Relay | Nice BlueBUS |
| System | Conventional Wired | 2-Wire BlueBUS |
| Use | Compatible Relay Safety Inputs | Compatible NICE BlueBUS Controllers |
Important: Do not confuse EPM with EPMB. Although the housings look similar, the electrical connection system is different. Check your NICE control-board model before ordering.
IP44 Outdoor Gate Photocell
The NICE EPM has an IP44 protection rating and an operating temperature range of -20°C to +50°C. Its compact ABS housing is designed for surface-mounted gate automation installations.
For reliable operation, the transmitter and receiver should be correctly aligned and positioned where the infrared beam provides effective protection across the gate movement area.
NICE EPM Compatible Applications
- NICE sliding gate motors
- NICE swing gate motors
- NICE garage door automation
- Automatic driveway gates
- Villa gate automation
- Residential gate entrances
- Commercial automatic gates
- Parking access systems
- Compatible automatic door and gate controllers
NICE EPM Safety Sensor for Sliding Gates
The EPM can be installed with compatible NICE sliding gate motors to detect vehicles and obstacles in the gate opening. Depending on the control-panel programming, interruption of the photocell beam can prevent closing or trigger another configured safety response.
NICE EPM Safety Sensor for Swing Gates
For compatible NICE swing gate automation, one or more EPM photocell pairs can be positioned according to the required safety layout. Correct photocell positioning is particularly important where the swing leaves create trapping or movement areas.
NICE EPM Photocell Sensor UAE
We supply NICE EPM photocell safety sensors throughout the UAE for automatic sliding gates, swing gates and compatible gate automation systems.
Professional supply, installation, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm whether your NICE control board requires a conventional relay photocell such as EPM or a BlueBUS photocell such as EPMB.
