Marantec Comfort 515 Swing Gate Opener in UAE

Marantec Swing Gate Motor - Marantec Comfort 515 - Best Price UAE

MARANTEC COMFORT 515 Swing Gate Opener in UAE

• Comfort 515
• Comfort 515 Set for 1-leaf swing gates up to 2.5 m
• 24 V-DC motor, 1,000 N, 20 cm/s, 177705
• For light swing gates with a wing width of up to 2.5 m
• The Comfort 515 opens gates with a wing width of up to 2.5 m
• and a wing height of up to 2.0 m. The opening time is between 15 and 25 seconds.
• The weight of the wing may be up to 200 kg.
• The Comfort 515 can be used both for single- and double-winged swing gates.

Technical Data:

• Operating mode (duty cycle) S2 - 5 min
• Push and pull force (max.) [N] 1,000
• Running speed (max.) [cm/s] 2
• Opening angle (max.) [°] 120
• Motor voltage [V] 24 V-DC
• End position system Electronic limit switches
• Protection class IP44

Scope of Delivery:

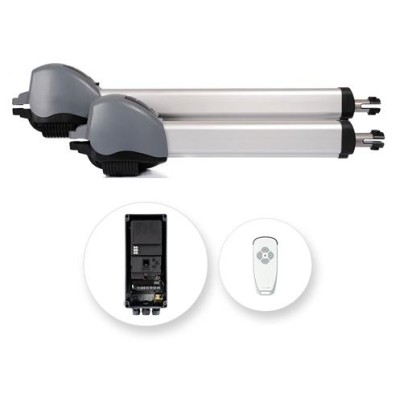

• Marantec Comfort 515 Motor unit, pre-wired 2x0.75 mm² 1.500 mm
• External control Control x.52
• Digital 921 Module receiver, 868 MHz bi.linked
• Digital 564 mini hand transmitter 4-channel,
• 868 MHz bi.linked
• Gate and angle bracket
• Installation material
