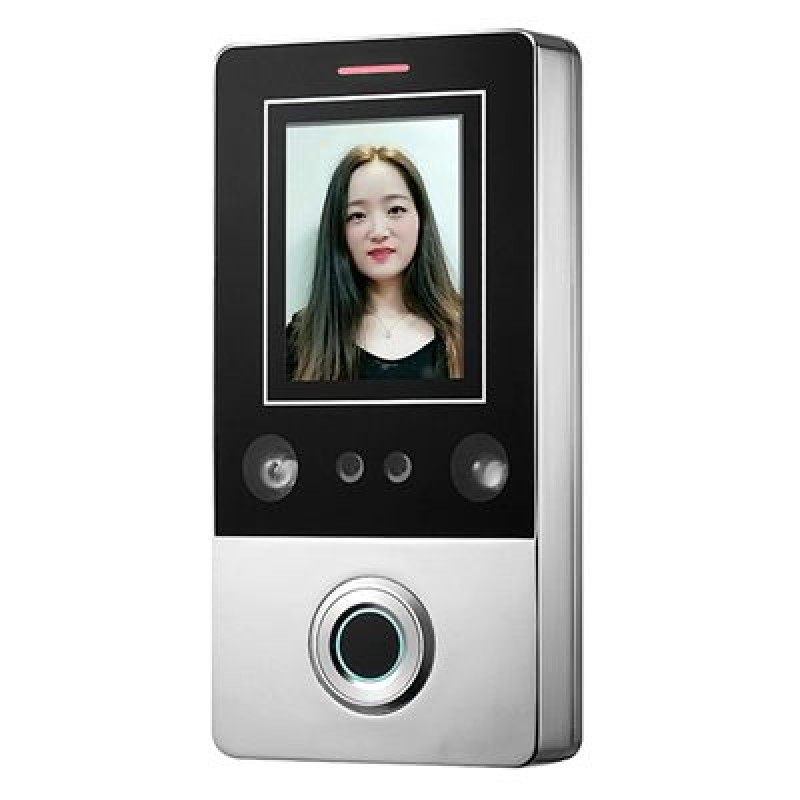

Facial Recognition with Fingerprint Access Control in UAE
Genuine Product
1 Year Warranty
UAE Delivery
Installation Available
Price 2,499 AEDIn Stock
Facial Recognition with Fingerprint Access Control in UAE
Facial Recognition with Fingerprint Access Control Systems
Features
Support card, facial recognition , fingerprint, card + fingerprint, Card + facial recognition
Can read 125KHz EM Card(Optional)
Can read 13.56MHz Mifare card (Optional)
Support Infrared remote controller operation.
Can operate as a reader. The transmission format could be adjusted by users.
Support admin card, admin fingerprint (add/delete)
Can hold 10,000 card users,1000 facial users and 600 fingerprint users.
Technical Specifications
Operating Voltage: DC12V
Standby Current: ≤180mA
Operating Current: ≤300mA
Operating Temperature: -40～60℃
Operating Humidity: 0～95%
Access mode: Fingerprint, card, facial recognition or multiple combination
Wiring
No. | Color | Marks | Description |
1 | Green | D0 | Wiegand input (only when used as a reader) |
2 | White | D1 | Wiegand input (only when used as a reader) |
3 | Grey | ALARM | Alarm signal MOS tube drain output end (optional) |
4 | Yellow | OPEN | Exit button input end |
5 | Brown | D_IN | Door contact switch input end |
6 | Red | +12V | Positive power supply or AC power supply end |
7 | Black | GND | Negative power supply end |
8 | Blue | NO | Relay NO |
9 | Purple | COM | Relay COM |
10 | Orange | NC | Relay NC |
