DITEC ZEN Gate Remote Control

DITEC ZEN Gate Remote Control UAE

DITEC ZEN is a modern range of wireless gate remote control transmitters designed for compatible DITEC automation and radio receiver systems. The ZEN family is available in 2-channel and 4-channel versions, allowing users to control one or several compatible automatic gates, garage doors, parking barriers or other automation functions from a compact handheld transmitter.

Depending on the exact ZEN model, transmitters are available in 433.92 MHz and 868.35 MHz versions and with different DITEC coding technologies. This makes correct model identification important when purchasing a replacement or additional DITEC ZEN remote.

DITEC ZEN Key Features

• Original DITEC ZEN remote control range
• Available in 2-channel and 4-channel versions
• Popular models include ZEN2 and ZEN4
• Available in 433.92 MHz versions
• Selected ZEN versions available at 868.35 MHz
• Rolling-code versions available
• Fixed-code versions available
• AES-128 protected versions available within the ZEN family
• Compatible with appropriate DITEC receivers and automation systems
• Large buttons for convenient everyday operation
• Visible LED provides immediate transmission feedback
• Two-level button surface helps reduce accidental operation
• Compact and modern handheld design
• Suitable as a replacement or additional DITEC remote
• Suitable for residential and commercial automation

DITEC ZEN Technical Specifications

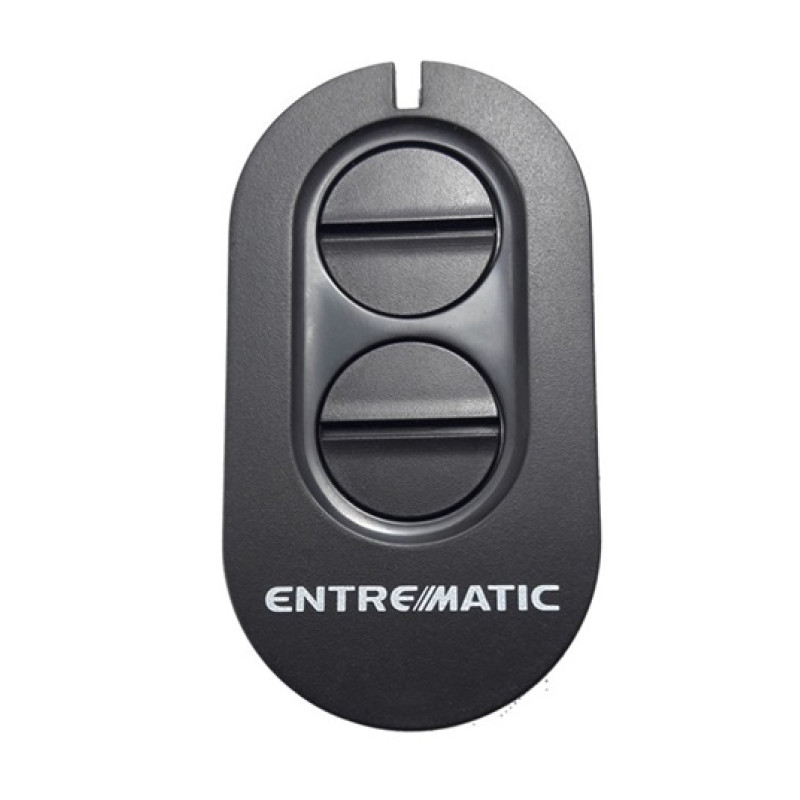

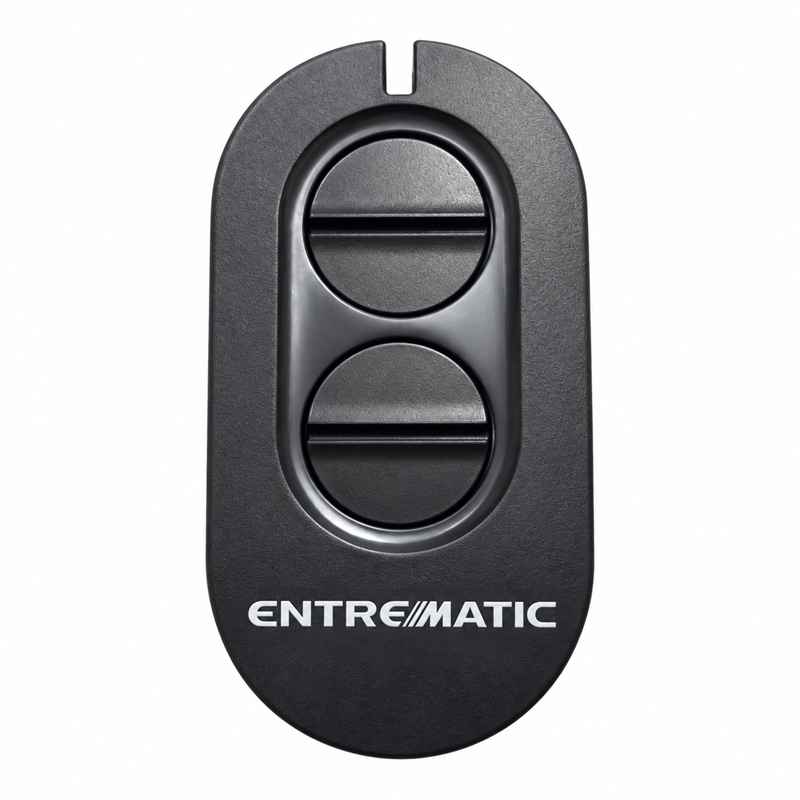

DITEC ZEN2 2-Channel Remote Control

DITEC ZEN2 is the 2-channel version of the ZEN transmitter. Its two buttons can be assigned to compatible automation commands according to the installed DITEC receiver and control system.

For example, one button may operate the main automatic gate while the second can be configured for another gate, pedestrian-opening function, garage door or another compatible receiver channel.

DITEC ZEN4 4-Channel Remote Control

DITEC ZEN4 provides four radio-control channels, making it suitable for installations where several compatible automation commands need to be controlled from a single transmitter.

Depending on the receiver configuration, the four buttons can be programmed for different gates, garage doors, barriers or other compatible DITEC receiver functions.

DITEC ZEN 433.92 MHz Remote

The standard ZEN2 and ZEN4 range includes 433.92 MHz transmitter versions. DITEC also manufactures other ZEN variants using different frequencies and coding technologies.

Important: A matching frequency alone does not guarantee compatibility. The exact ZEN model, frequency, coding protocol and installed DITEC receiver should be checked before ordering.

DITEC ZEN Rolling Code Technology

Compatible DITEC ZEN rolling-code transmitters use a changing radio code rather than repeatedly transmitting one simple fixed code. DITEC specifies more than 4 billion combinations for its rolling-code ZEN system.

This provides a secure radio-control solution for compatible automatic gate and access automation installations.

AES-128 Protected ZEN Versions

The DITEC ZEN family also includes versions capable of using AES 128-bit encrypted transmission. These protected versions are intended for applications requiring increased radio-control security.

Because not every ZEN transmitter uses the same protocol, the exact model should always be confirmed before describing a particular remote as AES-128.

DITEC ZEN Remote Operating Range

DITEC specifies a typical transmitter range of approximately 50 to 150 metres for applicable ZEN models. Actual operating distance depends on the receiver, aerial installation, surrounding buildings, interference and environmental conditions.

A properly installed compatible external antenna may improve reception where greater operating distance is required.

Designed for Easy Everyday Use

The DITEC ZEN transmitter has been designed with large operating buttons and a rounded handheld shape for comfortable everyday use. A visible LED provides immediate feedback when a button is pressed.

The button area uses a two-level surface intended to help reduce accidental button activation when the remote is carried in a pocket, bag or vehicle.

DITEC ZEN Remote Programming

A DITEC ZEN remote must be programmed to a compatible DITEC radio receiver or automation controller before it can operate the gate or door.

Depending on the system, a transmitter can be acquired through the receiver or configured using supported DITEC programming procedures. Professional programming tools such as ZENPAD and ZEN MANAGER are also available for compatible ZEN installations.

DITEC ZEN Compatible Applications

• DITEC sliding gate motors
• DITEC swing gate motors
• Automatic driveway gates
• DITEC garage door openers
• Automatic parking barriers
• Residential gate automation
• Commercial gate automation
• Compatible DITEC radio receivers
• Compatible access automation systems

Replacement DITEC ZEN Remote Control

The DITEC ZEN can be used as an additional or replacement gate remote when the existing automation uses a compatible DITEC receiver.

Before ordering, check the exact model printed on your existing transmitter. For example, ZEN2, ZEN4, ZEN2C, ZEN4C and ZENP series transmitters are not necessarily interchangeable simply because they share the ZEN design.

DITEC ZEN Remote Control UAE

We supply DITEC ZEN gate remote controls throughout the UAE for compatible DITEC automatic gate, garage door and barrier systems.

Remote supply, programming assistance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Check the exact ZEN model, number of buttons, operating frequency and receiver compatibility. If you are unsure, provide clear photos of the front and back of the existing remote and details of the installed DITEC receiver or gate motor.
