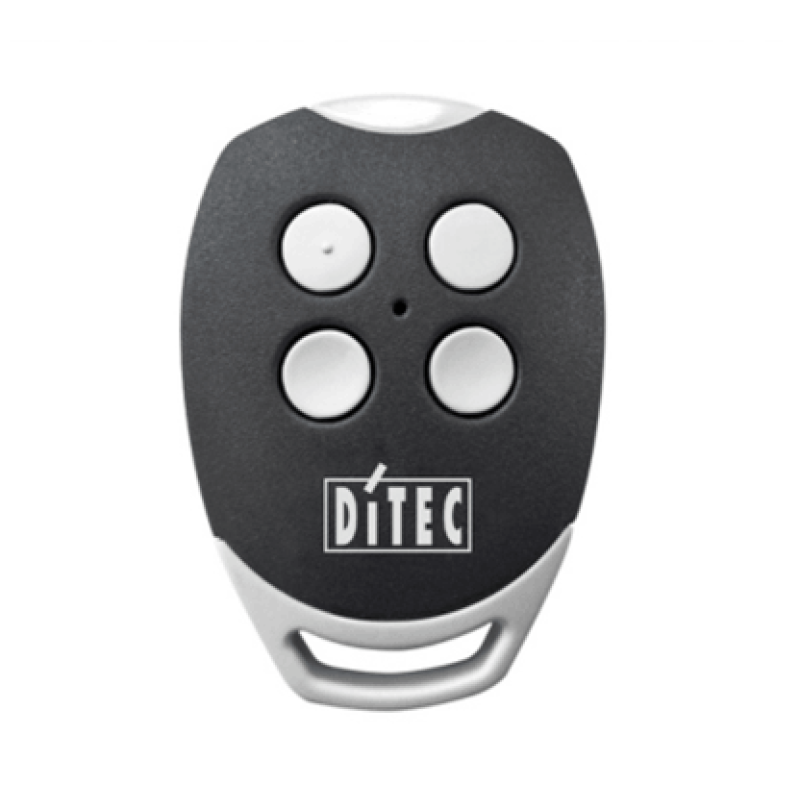

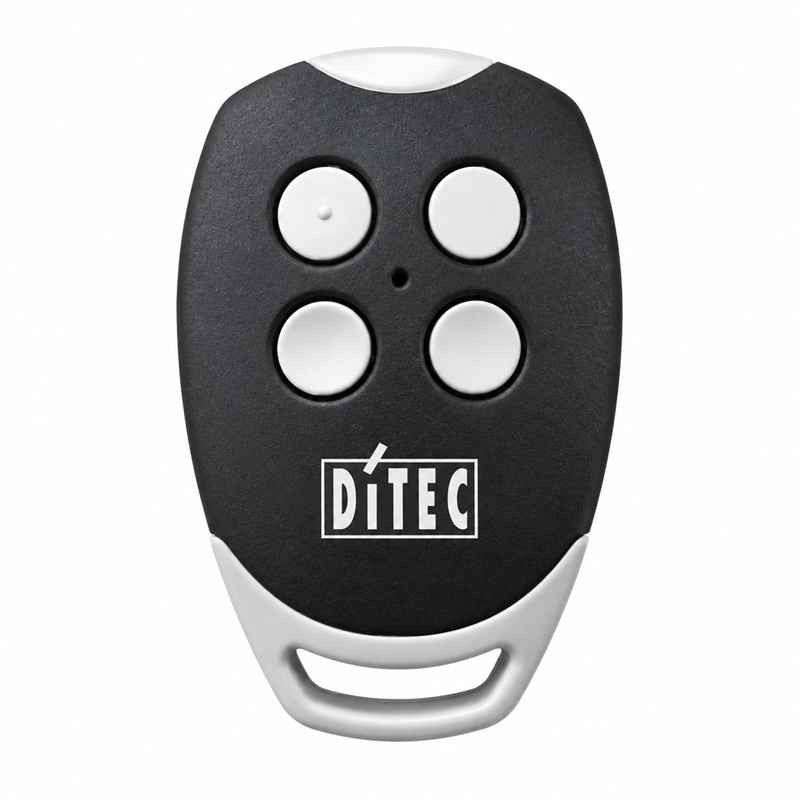

DITEC GOL4 4-Button Gate Remote Control
Price 70 AEDIn Stock
DITEC GOL4 4-Button Gate Remote Control UAE
DITEC GOL4 is a 4-button rolling-code gate remote control designed for compatible DITEC automatic gate, garage door, barrier and radio receiver systems. Operating at 433.92 MHz, the GOL4 provides four independent radio channels for convenient control of one or multiple compatible automation functions.
The DITEC GOL4 uses rolling-code technology and is powered by a compact 3V CR2032 lithium battery. With a manufacturer-specified operating range of approximately 50–100 metres under suitable conditions, it is a practical original replacement or additional transmitter for compatible DITEC automation systems.
DITEC GOL4 Key Features
- Original DITEC gate remote control
- Model: GOL4
- 4-button / 4-channel transmitter
- Operating frequency: 433.92 MHz
- Rolling-code transmission technology
- Power supply: 3V DC
- Battery type: CR2032 or equivalent
- Battery capacity: 220 mAh
- Manufacturer-specified range: 50–100 metres
- Compatible with appropriate DITEC radio receiver systems
- Four independent control channels
- Suitable as an additional or replacement DITEC remote
- Compact handheld transmitter
- Suitable for residential and commercial gate automation
DITEC GOL4 Technical Specifications
| Brand | DITEC |
| Model | GOL4 |
| Product Type | Gate Remote Control / Radio Transmitter |
| Number of Buttons | 4 Buttons |
| Number of Channels | 4 Channels |
| Frequency | 433.92 MHz |
| Coding Technology | Rolling Code |
| Power Supply | 3V DC |
| Battery | CR2032 3V / 220 mAh |
| Operating Range | Approx. 50–100 m |
| Compatible Receiver | Compatible DITEC 433.92MHz Rolling-Code Receiver Systems |
| Application | Automatic Gates, Garage Doors, Barriers & Compatible DITEC Automation |
4-Button DITEC Gate Remote Control
The DITEC GOL4 provides four independent radio channels. Depending on the installed DITEC receiver and control-board configuration, different buttons can be assigned to different automation functions.
For example, the four channels may be configured to control a main entrance gate, pedestrian-opening command, second automatic gate, garage door or another compatible DITEC receiver output.
433.92MHz Rolling-Code Technology
The DITEC GOL4 operates at 433.92 MHz and uses rolling-code technology. This distinguishes the GOL4 from simple fixed-code transmitters and provides a suitable radio-control solution for compatible DITEC automation systems.
Important: A remote operating at 433.92 MHz is not automatically compatible with the GOL4 system. Both the radio frequency and coding technology must match the installed receiver.
DITEC GOL4 Operating Range
DITEC specifies a transmitter operating range of approximately 50 to 100 metres for the GOL4. Actual remote-control distance can vary according to the receiver installation, antenna position, surrounding buildings, radio interference and environmental conditions.
For reliable operation, the compatible receiver and antenna should be correctly installed and positioned away from sources of radio interference where possible.
CR2032 3V Battery
The DITEC GOL4 is powered by a CR2032 3V lithium battery. DITEC specifies a 3V, 220mAh power supply for the transmitter and permits the use of a CR2032 or equivalent battery.
When replacing the battery, ensure that the new battery is installed with the correct polarity.
DITEC GOL4 Remote Programming
The DITEC GOL4 must be stored in a compatible DITEC receiver before it can operate the automation system. The exact procedure depends on the receiver and gate controller installed at the site.
On compatible systems, a new GOL4 can also support remote storage using an already memorized GOL4 transmitter. The correct procedure should be followed according to the installed DITEC receiver manual.
DITEC GOL4 Compatible Applications
- DITEC sliding gate motors
- DITEC swing gate motors
- DITEC garage door automation
- Automatic driveway gates
- Automatic parking barriers
- Residential gate automation
- Commercial gate automation
- Compatible DITEC radio receivers
DITEC GOL4 with BIXLR42 Receiver
The GOL4 is designed for compatible DITEC radio systems including installations using the BIXLR42 receiver. The BIXLR42 operates at 433.92 MHz, provides four relay outputs and can store up to 1,000 transmitter codes.
This combination can be used where several automation commands need to be managed through a compatible DITEC radio-control installation.
DITEC GOL4 vs GOL4C
| Specification | GOL4 | GOL4C |
|---|---|---|
| Frequency | 433.92 MHz | 433.92 MHz |
| Channels | 4 | 4 |
| Coding | Rolling Code | Fixed Code |
| Battery | CR2032 3V | CR2032 3V |
| Range | 50–100 m | 50–100 m |
Do not confuse GOL4 with GOL4C. Although both are four-channel 433.92 MHz transmitters with a similar appearance, the GOL4 uses rolling code while the GOL4C uses fixed code. Always check the existing remote and receiver before ordering a replacement.
Replacement DITEC GOL4 Remote Control
The DITEC GOL4 is suitable as an additional or replacement remote control for compatible DITEC rolling-code radio systems.
Before ordering, confirm that the existing transmitter is specifically GOL4 rather than GOL4C or another DITEC transmitter. Matching the physical appearance or 433.92 MHz frequency alone is not sufficient to guarantee compatibility.
DITEC GOL4 Gate Remote Control UAE
We supply DITEC GOL4 4-button gate remote controls throughout the UAE for compatible DITEC automatic gate, garage door and barrier systems.
Remote supply, programming assistance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Check the model printed on your existing remote and confirm receiver compatibility. For replacement applications, make sure you require the rolling-code GOL4 rather than the fixed-code GOL4C.
