NICE D-PRO 500 Control Board in UAE
NICE D-PRO 500 Control Board in UAE

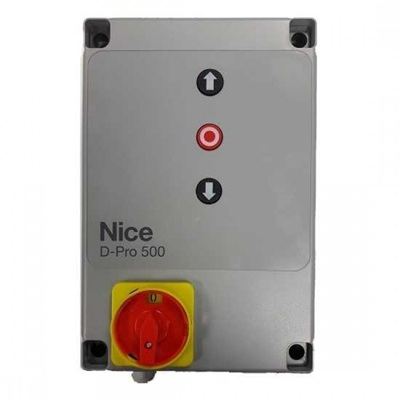

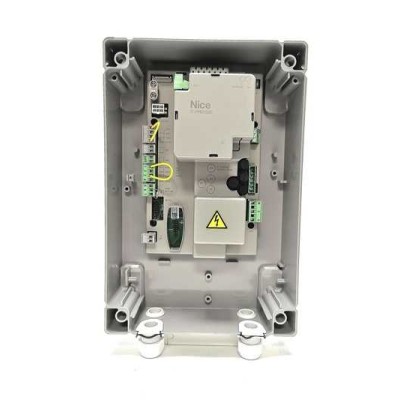

- NICE D-PRO 500 Control Board Unit
- Control unit, Nice D-PRO500
- Part compatible with: Industrial sliding gate automation motor 4000kg,
- Nice TUB4000 and Complete industrial sliding gate automation kit, 4000kg, Nice TUB4000KCE
- D-Pro500 is a control unit for motors with mechanical and electronic stroke limiters. Original Nice product.
- Operation in two modes: automatic and human presence. Suitable for all types of motors,
- single-phase and three-phase with integrated inverter, with a maximum power of 2.2 kW.
- Simplified programming and two diagnostic LEDs.
- Maximum performance: possibility of adding the module for potential-free contacts.
- Compatible with all types of sensitive edges, even wireless.
- Simplified programming: with the help of the programmer.
- O-View with multifunctional display, connectable with the IBT4N interface .
- Radio receiver : compatible only with the SM range receiver .
Technical specifications of the Nice D-PRO500 control panel:
- Mains power supply (VAC 50/60 HZ): 1-230/3-400;
- Maximum motor power and current (KW): 2.2;
- Logic unit power supply (VCC): 24;
- Standby voltage (VA): <5;
- External accessory inputs: PROGRAMMABLE;
- Sensitive board: OPTICAL, RESISTIVE 8.2KOHM AND PNEUMATIC;
- External connection: TWO POTENTIAL-FREE, PROGRAMMABLE CONTACTS (ONLY WITH NDA040 MODULE);
- DC output: 24V; 1°;
- Stop input: NORMALLY CLOSED CONTACT;
- Protection index (IP): 55;
- Operating temperature (°C): -20 ÷ +55;
- Dimensions (mm): 210x125x310 H;
- Weight (kg): 3.
The Nice D-PRO500 control unit is the new version that replaces the Nice Mindy A500 control unit.
