BFT KUSTOS BT A25 400 KG Swing Gate Motor

BFT KUSTOS BT A25 2.5M 24V Automatic Swing Gate Motor UAE

BFT KUSTOS BT A25 is a professional 24V electromechanical swing gate motor designed for gate leaves weighing up to 400 kg and measuring up to 2.5 metres. Engineered for intensive operation, it combines BFT D-Track force management, magnetic limit switches and automatic slowdown for precise and controlled swing gate automation.

The KUSTOS BT A25 works with the BFT THALIA control unit and is suitable for single- and double-leaf automatic swing gates. Its 24V motor, 295 mm useful rod stroke, mechanical locking and personal-key manual release make it an excellent solution for villas, residential compounds and commercial entrances throughout the UAE.

BFT KUSTOS BT A25 Key Features

• Genuine BFT swing gate automation
• Model: KUSTOS BT A25
• Product code: P935099 00002
• Made in Italy
• 24V irreversible electromechanical operator
• Maximum gate leaf length: 2.5 metres
• Maximum gate leaf weight: 400 kg
• Power consumption: 40 W
• Compatible with BFT THALIA control unit
• BFT D-Track force management
• Magnetic limit switches
• Useful rod stroke: 295 mm
• Maximum opening angle: 118°
• Cycle time: approximately 13 seconds
• Opening and closing slowdown
• Mechanical locking
• Personal-key manual release
• Designed for intensive use
• Protection rating: IP44
• Operating temperature: -20°C to +55°C

BFT KUSTOS BT A25 Technical Specifications

400 KG Swing Gate Motor for Leaves Up to 2.5 Metres

The BFT KUSTOS BT A25 is designed for swing gate leaves measuring up to 2.5 metres and weighing up to 400 kg. This makes it suitable for residential villas, private compounds, commercial properties and other automatic swing gate applications requiring frequent daily operation.

Motor selection should consider gate leaf length and weight together with gate construction, hinge condition, mounting geometry, wind exposure and expected operating frequency.

24V Intensive-Use Swing Gate Automation

The KUSTOS BT A25 uses an efficient 24V motor with 40 W power consumption and is designed for intensive use. This makes it particularly suitable for entrances where the automatic gate operates frequently throughout the day.

The 24V automation system also enables advanced electronic management of gate movement, slowdown and operating force.

BFT THALIA Control Unit

The BFT THALIA control unit manages the KUSTOS BT A25 automatic swing gate system. It can control compatible single- or double-leaf 24V swing gate installations and provides electronic management of motor movement and safety functions.

The system can be integrated with compatible BFT remote controls, photocell safety sensors, flashing lights, push buttons, key switches and access-control devices.

BFT D-Track Force Management

The KUSTOS BT A25 uses BFT D-Track technology to electronically manage the force required during gate movement. This helps the automation respond to changes in resistance while maintaining controlled opening and closing operation.

D-Track works together with correctly configured control-board settings and appropriate safety devices such as photocell sensors.

Magnetic Limit Switch Technology

Unlike swing gate operators that rely mainly on working-time travel management, the KUSTOS BT A25 uses magnetic limit switches for accurate management of the gate's opening and closing positions.

This is one of the important technical advantages of the KUSTOS BT range and helps provide precise, repeatable gate travel when correctly installed and programmed.

295 mm Stroke and 118° Opening Angle

The KUSTOS BT A25 provides a 295 mm useful rod stroke and supports a maximum opening angle of approximately 118°, depending on gate geometry and mounting dimensions.

Correct positioning of the front and rear mounting brackets remains essential for achieving the required gate movement and opening angle.

13-Second Operating Cycle

The KUSTOS BT A25 has a nominal cycle time of approximately 13 seconds, providing relatively fast automatic operation for compatible swing gates.

Actual opening and closing time can vary according to the installation geometry, gate opening angle and programmed slowdown settings.

Automatic Slowdown

The KUSTOS BT A25 supports opening and closing slowdown, allowing the gate to reduce speed as it approaches the programmed end positions.

Correct programming helps provide smoother movement and reduces mechanical shock on the gate, hinges, brackets and automation system.

Manual Release During Power Failure

The operator uses mechanical locking during normal automatic operation. If electrical power is unavailable or manual gate movement is required, the KUSTOS BT A25 can be disengaged using its personal-key manual release.

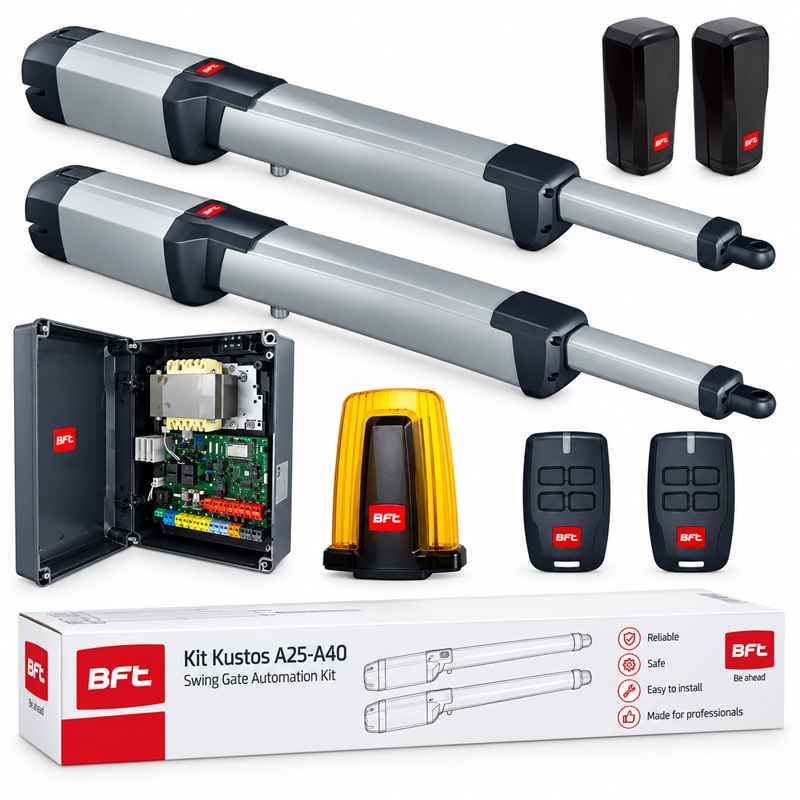

Our UAE BFT KUSTOS BT A25 Kit Includes

• 2 × BFT KUSTOS BT A25 24V swing gate motors
• 1 × BFT THALIA control panel
• 1 × Pair of self-aligning photocell safety sensors
• 1 × BFT flashing warning light with incorporated antenna
• 2 × BFT MITTO B RCB remote controls
• 1 × Push button
• 2 × Motor fixing brackets

Note: This describes our UAE supply package. Kit contents should be confirmed when ordering because package configurations may change.

BFT KUSTOS BT A25 vs PHOBOS AC A25

Why Choose BFT KUSTOS BT A25?

The KUSTOS BT A25 is a strong choice when you need a modern 24V swing gate operator with intensive-use capability, D-Track force management, magnetic limit switches and automatic slowdown. Compared with a conventional 230V operator, its electronic control system provides more precise management of gate movement.

BFT KUSTOS BT A25 Applications

• Residential villa swing gates
• Private driveway gates
• Residential compounds
• Commercial building entrances
• Office and business entrances
• Single-leaf automatic gates
• Double-leaf automatic gates
• Swing gate leaves up to 2.5 metres and 400 kg

BFT KUSTOS BT A25 Swing Gate Motor UAE

We supply BFT KUSTOS BT A25 swing gate motors throughout the UAE with professional installation, programming and technical support.

Supply and installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Installation Check: Before ordering, confirm the gate leaf length, approximate weight, hinge condition, opening angle, pillar dimensions, wind exposure and mounting geometry to ensure the KUSTOS BT A25 is suitable for the installation.
