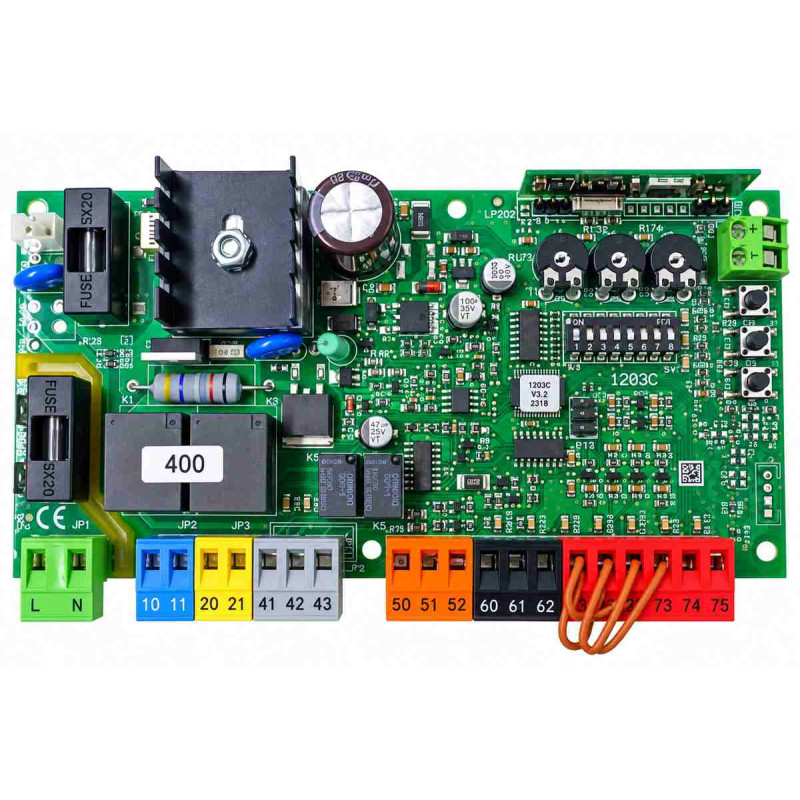

BFT HAMAL 400 Sliding Gate Motor Control Board
Price 600 AEDIn Stock
BFT HAMAL 400 Control Board for DEIMOS BT A400 UAE
BFT HAMAL 400 is an original electronic sliding gate motor control board designed for the BFT DEIMOS BT A400 24V sliding gate operator. Product code I700034 10001, the HAMAL control unit manages motor movement, slowdown, obstacle detection, automatic closing, pedestrian opening and compatible safety accessories.
The board is supplied from 230V single-phase mains power and controls a compatible 24V sliding gate operator. With an incorporated dual-channel radio receiver and BFT D-Track anti-crushing technology, it provides the main electronic control functions required by the DEIMOS BT A400 automatic sliding gate system.
BFT HAMAL 400 Key Features
- Original BFT electronic control board
- Model: HAMAL 400
- Product code: I700034 10001
- Designed for BFT DEIMOS BT A400
- Controls one compatible 24V sliding gate operator
- Board power supply: 230V single phase
- Operator power supply: 24V
- Motor output capability: up to 80W
- Dip-switch programming
- Potentiometer / trimmer adjustments
- Removable colour-coded terminal blocks
- Integrated dual-channel radio receiver
- BFT D-Track anti-crushing management
- Opening and closing slowdown
- Automatic closing function
- Pedestrian opening by compatible radio control
- 8k2 safety-edge / obstruction sensor input
- Rapid closing function
BFT HAMAL 400 Technical Specifications
| Brand | BFT |
| Model | HAMAL 400 |
| Product Code / MPN | I700034 10001 |
| Product Type | Sliding Gate Motor Electronic Control Board |
| Application | BFT DEIMOS BT A400 |
| Number of Operators | 1 |
| Board Power Supply | 230V Single Phase |
| Operator Power Supply | 24V |
| Motor Output | Up to 80W |
| Programming | Dip Switches & Potentiometers |
| Radio Receiver | Integrated Dual-Channel Receiver |
| Obstacle / Force Management | BFT D-Track |
| Slowdown | Opening & Closing |
| Automatic Closing | Yes |
| Pedestrian Opening | Yes – via compatible radio control |
| Safety Edge Input | 8k2 |
| Terminal Blocks | Removable, Colour-Coded |
Original Control Board for BFT DEIMOS BT A400
The BFT HAMAL 400 is used as the electronic control unit for the DEIMOS BT A400 24V sliding gate motor. It controls the gate motor together with connected safety devices, radio transmitters and command accessories.
The BFT DEIMOS BT A400 is a 24V sliding gate operator for gates weighing up to approximately 400 kg. Using the correct HAMAL control board helps maintain the original motor functions including D-Track force management and controlled slowdown.
BFT D-Track Anti-Crushing Technology
The HAMAL control board supports BFT D-Track force-management technology. D-Track monitors the force required to move the gate and allows the automation system to react to abnormal resistance during operation.
Correct force settings, gate mechanics and safety-device installation are essential for reliable operation.
Opening and Closing Slowdown
The HAMAL board manages slowdown during opening and closing, allowing the DEIMOS BT A400 to reduce speed as it approaches the programmed end of travel.
This provides smoother gate movement and helps reduce mechanical impact on the motor, rack, pinion and gate structure.
Integrated BFT Radio Receiver
The HAMAL control unit includes an incorporated dual-channel radio receiver for compatible BFT remote controls. This allows compatible transmitters to be memorized directly into the gate automation system.
Remote compatibility should be confirmed according to the receiver and transmitter coding system before purchasing additional remotes.
Automatic Closing & Pedestrian Opening
The control board supports automatic gate closing and pedestrian opening. Pedestrian opening can be activated by compatible programmed radio control, allowing partial gate opening when full vehicle access is not required.
Safety Device Connections
The BFT HAMAL 400 can work with compatible gate automation safety and command accessories, including photocell sensors and an 8k2 obstruction / safety-edge input.
Safety devices must be correctly wired and programmed according to the BFT installation instructions and the requirements of the gate installation.
When to Replace the BFT HAMAL Control Board
A replacement HAMAL control board may be required when the original DEIMOS control panel is damaged by electrical failure, component failure, incorrect wiring or other faults that cannot be economically repaired.
Before replacing the PCB, the motor, transformer, limit switches, photocells, wiring and connected accessories should be checked to make sure an external fault did not cause the original board failure.
BFT HAMAL 400 Compatibility
Primary application: BFT DEIMOS BT A400 sliding gate operator.
Important: Do not select a HAMAL replacement board only because another BFT motor uses a control unit called HAMAL. BFT uses different motor configurations and your website separately lists HAMAL 400 and HAMAL 600 replacement products. Confirm the operator model and existing PCB reference before ordering.
BFT HAMAL 400 Control Board UAE
We supply BFT HAMAL 400 control boards in the UAE for BFT DEIMOS BT A400 sliding gate automation systems, with replacement, installation and programming support available.
Supply and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Send us a clear photo of your existing BFT control board label and gate motor model. This allows the PCB reference and compatibility to be checked before replacement.
