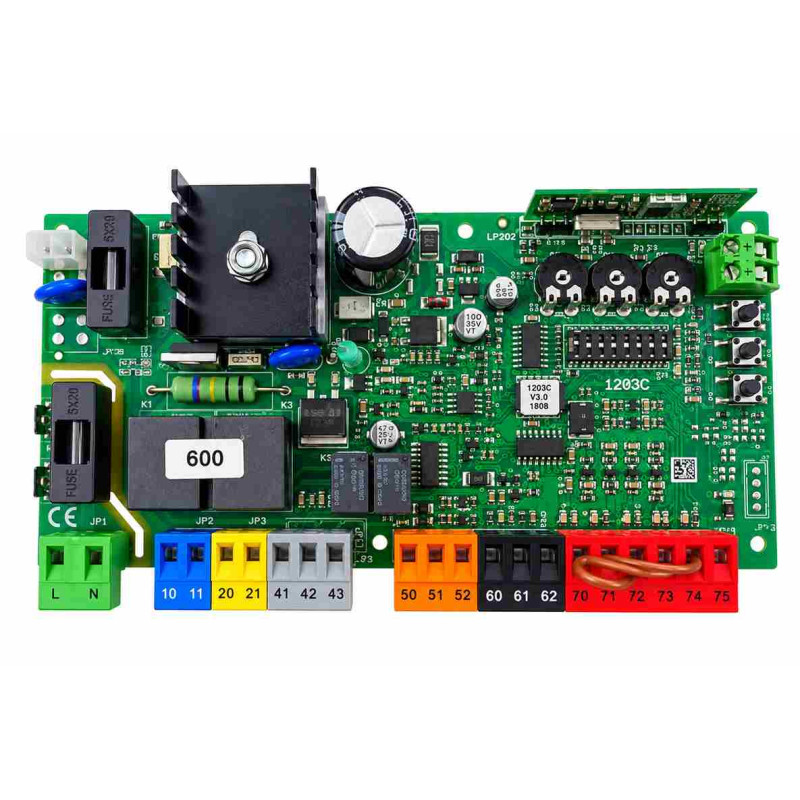

BFT HAMAL 600 Sliding Gate Motor Control Board
Price 650 AEDIn Stock
BFT HAMAL 600 Control Board for DEIMOS BT A600 UAE
BFT HAMAL 600 is an original electronic sliding gate motor control board designed for the BFT DEIMOS BT A600 24V sliding gate operator. Product code I700034 10001, the HAMAL control unit manages motor operation, opening and closing slowdown, D-Track force management, automatic closing, pedestrian opening, radio remote controls and compatible gate safety devices.
The HAMAL 600 control board operates from a 230V single-phase mains supply and controls one compatible 24V gate operator up to 80W. It includes an integrated dual-channel radio receiver together with dip-switch and potentiometer programming for straightforward installation, setup and maintenance.
BFT HAMAL 600 Key Features
- Original BFT electronic control board
- Model: HAMAL 600
- Product code: I700034 10001
- Designed for BFT DEIMOS BT A600
- Controls one compatible 24V sliding gate operator
- Board power supply: 230V single phase
- Operator power supply: 24V
- Maximum operator power: 80W
- BFT D-Track anti-crushing force management
- Opening and closing slowdown
- Integrated dual-channel radio receiver
- Dip-switch programming
- Potentiometer / trimmer adjustment
- Automatic closing function
- Pedestrian opening function
- Rapid closing function
- 8k2 safety-edge input
- Removable colour-coded terminal blocks
BFT HAMAL 600 Technical Specifications
| Brand | BFT |
| Model | HAMAL 600 |
| Product Code / MPN | I700034 10001 |
| Product Type | Sliding Gate Motor Electronic Control Board |
| Primary Compatibility | BFT DEIMOS BT A600 |
| Number of Operators | 1 |
| Board Power Supply | 230V Single Phase |
| Operator Power Supply | 24V |
| Maximum Operator Power | 80W |
| Programming | Dip Switches & Potentiometers |
| Radio Receiver | Integrated Dual-Channel Receiver |
| Force Management | BFT D-Track |
| Slowdown | Opening & Closing |
| Automatic Closing | Yes |
| Pedestrian Opening | Yes |
| Rapid Closing | Yes |
| Safety Edge Input | 8k2 |
| Terminal Blocks | Removable Colour-Coded Terminals |
Original Control Board for BFT DEIMOS BT A600
The BFT HAMAL 600 is primarily used as the electronic control unit for the BFT DEIMOS BT A600 sliding gate motor. The DEIMOS BT A600 is a 24V automatic sliding gate operator designed for gates weighing up to approximately 600 kg.
The control board manages the motor together with connected radio controls, photocell sensors, safety devices and command accessories. Using the correct BFT replacement PCB helps retain the original automation functions and operating characteristics.
BFT D-Track Force Management
The HAMAL 600 supports BFT D-Track technology for electronic force management. D-Track monitors the force required during gate travel and helps the automation react when abnormal resistance or an obstacle is detected.
Correct motor-force settings, gate mechanics and safety-device installation remain essential for safe and reliable operation.
Opening and Closing Slowdown
The HAMAL 600 provides controlled slowdown during both opening and closing. The motor can reduce speed near the end of travel to provide smoother gate movement and reduce mechanical impact.
This helps protect components such as the sliding gate motor, rack, pinion and gate structure from unnecessary shock during normal operation.
Integrated Dual-Channel Radio Receiver
The BFT HAMAL 600 includes an integrated dual-channel radio receiver, allowing compatible BFT remote controls to be programmed directly into the gate automation system.
Always confirm transmitter and receiver compatibility before adding or replacing BFT remote controls.
Automatic Closing Function
The control board supports automatic gate closing. When enabled and correctly programmed, the gate can automatically close after the selected pause period.
Automatic closing should be used together with correctly installed safety devices such as photocell sensors.
Pedestrian Opening
The HAMAL 600 supports a pedestrian opening function, allowing the sliding gate to open partially instead of completing a full vehicle-access cycle.
This function can provide convenient pedestrian access while reducing unnecessary full gate movement.
Photocell & Safety Device Connections
The BFT HAMAL 600 can work with compatible gate automation safety devices, including photocell sensors and 8k2 safety-edge systems.
Safety accessories must be correctly connected, configured and tested during installation or control-board replacement.
BFT HAMAL 600 Replacement Control Board
The HAMAL 600 is suitable when replacing a damaged or faulty control PCB in a compatible BFT DEIMOS BT A600 gate motor.
Before replacing the control board, technicians should inspect the motor, transformer, limit-switch circuit, photocells, accessories and field wiring. A short circuit or faulty external component can damage a replacement PCB if the original cause of failure is not corrected first.
BFT HAMAL 600 Compatibility
Recommended application: BFT DEIMOS BT A600 24V sliding gate operator.
Some HAMAL board references are used across different BFT automation configurations. For replacement purposes, always confirm the motor model, existing PCB reference and board label before ordering rather than assuming compatibility from the HAMAL name alone.

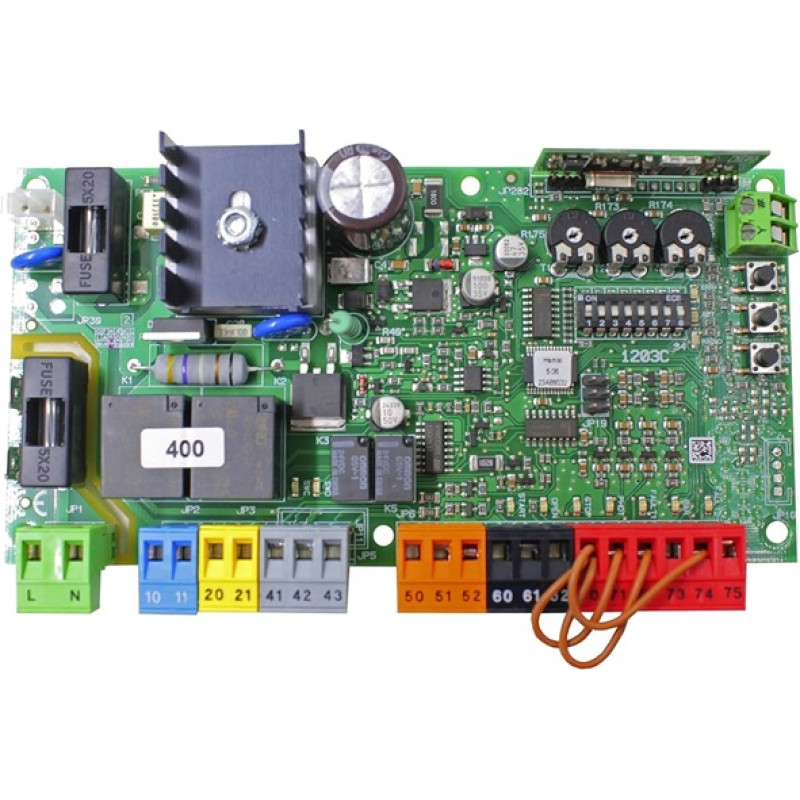

BFT HAMAL 400 vs HAMAL 600
| Control Board | HAMAL 400 | HAMAL 600 |
|---|---|---|
| Primary Motor | DEIMOS BT A400 | DEIMOS BT A600 |
| Motor Voltage | 24V | 24V |
| D-Track | Yes | Yes |
| Slowdown | Yes | Yes |
| Recommended Replacement Check | Verify board label | Verify board label |
BFT HAMAL 600 Control Board UAE
We supply BFT HAMAL 600 control boards throughout the UAE for BFT DEIMOS BT A600 sliding gate automation, with professional replacement, programming and technical support available.
Supply and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Send a clear photo of the existing BFT control-board label and gate motor model so the correct PCB reference can be confirmed before replacement.
