BENINCA PUPILLA 180° Adjustable Gate Photocell Sensors
Price 200 AEDIn Stock
BENINCA PUPILLA 180° Adjustable Gate Photocell Safety Sensors UAE

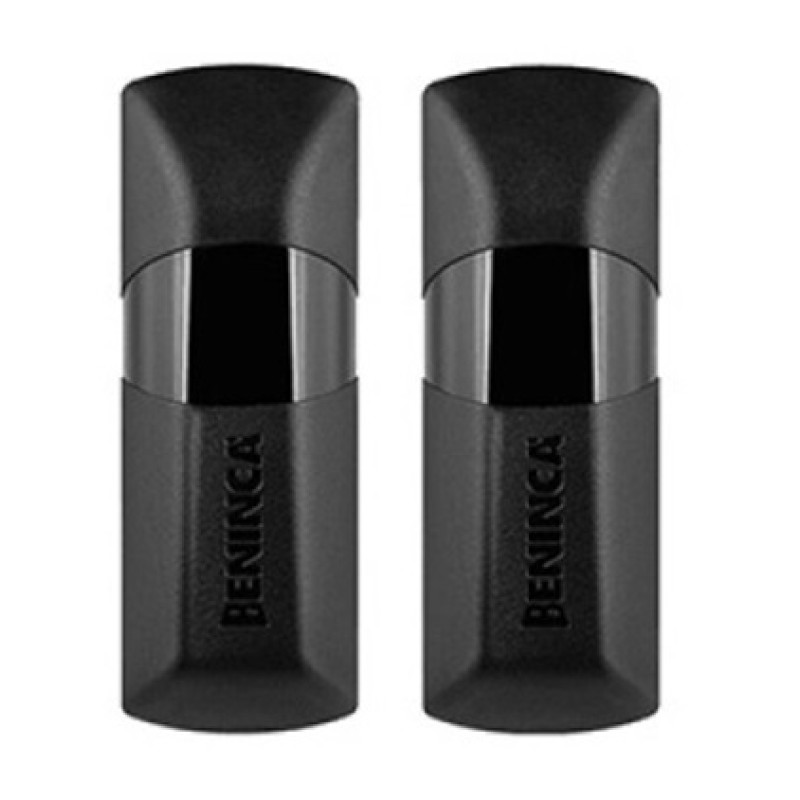

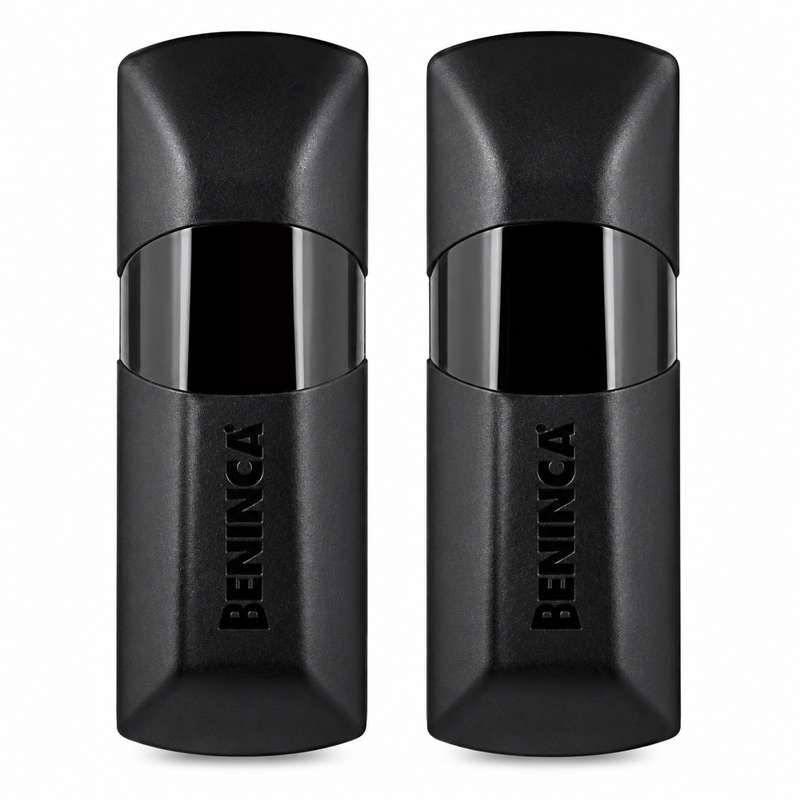

BENINCA PUPILLA is a professional pair of adjustable photocell safety sensors designed for automatic gates, garage doors, parking barriers and compatible access automation systems. The photocells can be adjusted through 180°, providing excellent installation flexibility where the transmitter and receiver cannot be mounted perfectly opposite each other.
PUPILLA operates from a 22–30 Vac or 20–28 Vdc power supply and supports synchronization of up to 4 pairs of photocells. An integrated LED assists the installer in achieving optimal alignment, helping provide reliable safety-beam operation.
BENINCA PUPILLA Key Features
- Genuine BENINCA photocell safety sensors
- Model: PUPILLA
- Supplied as a pair of photocells
- Transmitter and receiver safety system
- Adjustable through 180°
- Flexible alignment for professional installations
- 22–30 Vac power supply
- 20–28 Vdc power supply
- Synchronization of up to 4 pairs
- LED for optimal alignment indication
- Suitable for automatic gate safety applications
- Suitable for compatible BENINCA automation systems
- Suitable for residential and commercial entrances
BENINCA PUPILLA Technical Specifications
| Brand | BENINCA |
| Model | PUPILLA |
| Product Type | Automatic Gate Safety Photocells |
| Quantity | 1 Pair |
| Adjustment | Up to 180° |
| AC Power Supply | 22–30 Vac |
| DC Power Supply | 20–28 Vdc |
| Synchronization | Up to 4 Pairs |
| Alignment Indicator | LED for Optimal Alignment |
| Application | Automatic Gate & Door Safety |
180° Adjustable Photocell Design
A major advantage of the BENINCA PUPILLA is its ability to rotate through 180 degrees. This provides greater installation flexibility compared with a conventional fixed photocell.
The adjustable design is particularly useful when gate posts, walls or other installation surfaces do not allow the transmitter and receiver to be mounted directly facing each other.
LED-Assisted Photocell Alignment
BENINCA PUPILLA includes an LED that indicates optimal alignment. This helps the installer correctly align the transmitter and receiver during installation and servicing.
Correct photocell alignment is important for reliable obstacle detection and helps prevent intermittent safety-beam faults caused by poor positioning.
Synchronize Up to 4 Pairs of Photocells
The BENINCA PUPILLA system supports synchronization of up to four pairs. This is useful for automatic gate installations requiring multiple photocell safety points.
Synchronization helps multiple photocell pairs operate correctly in the same installation while reducing unwanted interference between adjacent safety beams.
Automatic Gate Safety & Obstacle Detection
PUPILLA photocells create a safety beam across the automatic entrance. When a vehicle, person or other obstacle interrupts the beam, the connected automation control board can respond according to its programmed photocell safety logic.
Depending on the control-board configuration, a photocell input may prevent closing, stop movement or reverse the gate when an obstacle is detected.
BENINCA PUPILLA Applications
- Automatic sliding gates
- Automatic swing gates
- Garage door automation
- Parking gate barriers
- Villa entrance gates
- Residential gate automation
- Commercial gate entrances
- Compatible BENINCA automation systems
BENINCA PUPILLA vs FTC.S
| Feature | PUPILLA | FTC.S |
|---|---|---|
| Adjustment | 180° Adjustable | Fixed Post Installation |
| Power Supply | 22–30 Vac / 20–28 Vdc | 24 Vac/dc |
| Synchronization | Up to 4 Pairs | Up to 4 Pairs |
| Alignment LED | Yes | — |
| Best Application | Installations Requiring Flexible Alignment | Standard External Post Installation |
BENINCA PUPILLA vs PUPILLA.T
PUPILLA and PUPILLA.T are different models. Standard PUPILLA provides adjustment through 180°, operates at 22–30 Vac / 20–28 Vdc and can synchronize up to four pairs.
The newer PUPILLA.T uses three adjustable positions, operates at 14–30 Vac / 12–30 Vdc and allows two pairs to be installed close together without synchronization. Always check the exact model before replacement.
BENINCA PUPILLA Installation
Install the transmitter and receiver on opposite sides of the automatic entrance. Rotate the adjustable photocells as required until the units are correctly aligned, using the integrated LED to identify the optimal position.
Connect the photocells to the compatible safety input and accessory power supply of the automation control board. After installation, test the safety function during several complete opening and closing cycles.
BENINCA PUPILLA Photocell Sensor UAE
We supply BENINCA PUPILLA adjustable photocell sensors throughout the UAE for new installations and replacement of compatible automatic gate safety systems.
Supply and professional installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Compatibility Check: If you are replacing existing BENINCA photocells, provide the photocell model, gate motor or barrier model, control-board model and clear photos of the existing wiring before ordering.
