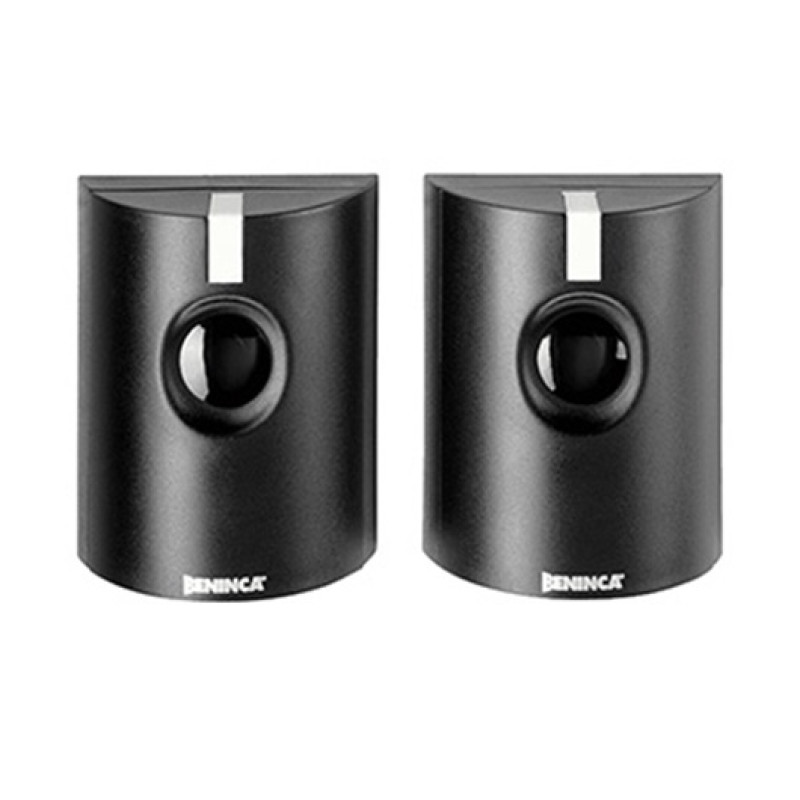

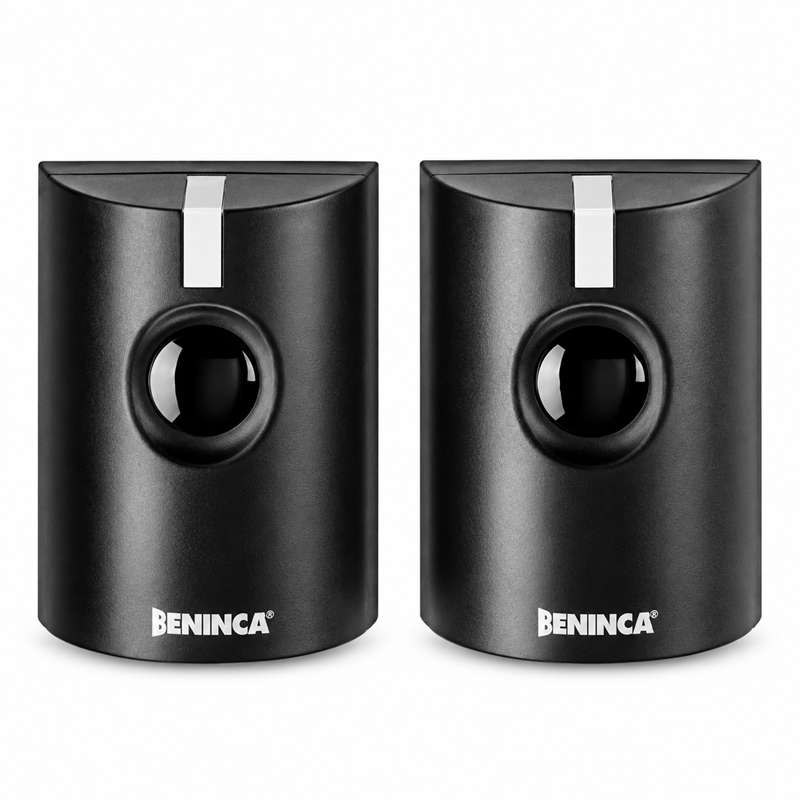

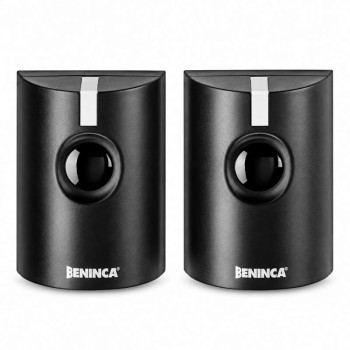

BENINCA FTC.S Photocell Safety Sensors for Automatic Gates
Price 200 AEDIn Stock
BENINCA FTC.S 24V Automatic Gate Photocell Safety Sensors UAE
BENINCA FTC.S is a pair of photocell safety sensors designed for compatible automatic gate, garage door and parking barrier systems. The photocells provide reliable obstacle detection across an automatic entrance and can be connected to a compatible control board as part of the automation safety system.
The FTC.S is designed for external mounting on a post and operates from a 24 Vac/dc power supply. BENINCA also allows synchronization of up to 4 pairs of FTC.S photocells, making the system suitable for professional gate automation installations requiring multiple safety beams.
BENINCA FTC.S Key Features
- Genuine BENINCA photocell safety sensors
- Model: FTC.S
- Supplied as a pair of photocells
- Transmitter and receiver safety system
- Designed for external mounting on post
- 24 Vac/dc power supply
- Option to synchronize up to 4 pairs
- Suitable for automatic gate safety applications
- Compatible with suitable BENINCA control boards
- Suitable for residential and commercial automation
- Professional BENINCA gate automation accessory
BENINCA FTC.S Technical Specifications
| Brand | BENINCA |
| Model | FTC.S |
| Product Type | Automatic Gate Safety Photocells |
| Quantity | 1 Pair |
| Installation Type | External Post Mounting |
| Power Supply | 24 Vac/dc |
| Synchronization | Up to 4 Pairs |
| Application | Automatic Gate Safety & Obstacle Detection |
| Compatible Systems | Compatible BENINCA Automation Control Systems |
Automatic Gate Safety Photocell
The BENINCA FTC.S photocell is used as a safety device in an automatic gate system. One photocell acts as the transmitter while the opposite unit receives the beam.
When a vehicle, person or other obstacle interrupts the photocell beam, the connected gate control system can respond according to its programmed safety logic, helping prevent unwanted gate movement while the entrance is occupied.
24V AC/DC Photocell Sensor
The BENINCA FTC.S operates from a 24 Vac/dc power supply, allowing it to be connected to compatible BENINCA automation control boards that provide the required photocell accessory supply.
Always verify the accessory output voltage and photocell terminal configuration of the installed control board before wiring the FTC.S.
Synchronize Up to 4 Pairs
BENINCA specifies that the FTC.S can be synchronized with up to four pairs of photocells. Synchronization is particularly useful in installations using several photocell pairs, helping the individual safety beams operate correctly without unwanted interference between adjacent photocells.
BENINCA FTC.S Applications
- Automatic sliding gates
- Automatic swing gates
- Garage door automation
- Parking gate barriers
- Villa entrance gates
- Residential gate automation
- Commercial gate entrances
- Compatible BENINCA automation systems
BENINCA FTC.S vs PUPILLA Photocells
| Feature | FTC.S | PUPILLA |
|---|---|---|
| Mounting | External Post Mounting | External Adjustable |
| Power Supply | 24 Vac/dc | 22–30 Vac / 20–28 Vdc |
| Adjustment | Post Installation | Adjustable to 180° |
| Multiple Pairs | Synchronize Up to 4 Pairs | Synchronize Up to 4 Pairs |
| Alignment LED | — | Yes – Optimal Alignment Indication |
BENINCA Photocell Installation
The FTC.S transmitter and receiver should be installed facing each other across the gate entrance at an appropriate safety height. Correct alignment, wiring and control-board safety logic are important for reliable operation.
After installation, the photocell safety function should be tested during gate closing to confirm that interrupting the beam produces the intended response from the automation system.
BENINCA FTC.S Photocell Sensor UAE
We supply BENINCA FTC.S automatic gate photocell sensors throughout the UAE for replacement and new gate automation installations.
Supply and professional installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Compatibility Check: If you are replacing existing photocells, provide the gate motor model, control-board model and clear photos of the existing sensor and wiring before ordering.
