BENINCA JM.4ESA Garage Door Opener – 1200N Up to 22m²

BENINCA JM.4ESA 1200N Commercial Garage Door Opener UAE

BENINCA JM.4ESA is a professional 24V DC garage door opener designed for intensive-use sectional doors with a maximum surface area of 22 m². With powerful 1200 N thrust, integrated CP.J4ESA control electronics, encoder technology and an integrated 433.92 MHz radio receiver, the JM.4ESA is an excellent solution for large residential, commercial and shared garage entrances.

BENINCA classifies the JM.4ESA for commercial use. Its advanced electronics include an LCD display, STC intelligent torque management, anti-crushing obstacle detection, adjustable slowdowns, soft start, maintenance warning and ESA energy-saving technology.

BENINCA JM.4ESA Key Features

• Genuine BENINCA garage door opener
• Model: JM.4ESA
• Commercial-use sectional door automation
• For sectional garage doors up to 22 m²
• 24V DC motor
• 1200 N thrust
• 8.9 m/min opening speed
• Designed for intensive use
• Integrated CP.J4ESA control unit
• Integrated LCD display
• Integrated 433.92 MHz radio receiver
• Stores up to 64 transmitters
• Advanced Rolling Code, Rolling Code and Fixed Code support
• Integrated encoder
• Electronic limit switch with encoder
• STC intelligent torque management
• Amperometric obstacle detection with encoder management
• Anti-crushing safety system
• Automatic operating parameter setup
• Electronic torque adjustment
• Adjustable slowdowns
• 2-second soft-start function available
• Energy-saving courtesy light
• Maintenance warning function
• Optional integrated battery operation
• IP40 protection rating
• Operating temperature from -20°C to +50°C

BENINCA JM.4ESA Technical Specifications

1200N Garage Door Motor for Doors Up to 22 m²

The BENINCA JM.4ESA delivers 1200 N of traction and pushing force and is designed for sectional doors with a maximum surface area of 22 m².

Correct motor selection should also consider the actual door weight, spring balance, track condition, door dimensions and expected operating frequency. The garage door should be correctly balanced mechanically before automation.

24V Intensive-Use Garage Door Automation

The JM.4ESA uses a 24V DC motor designed for intensive use. This makes it particularly suitable for applications where a garage door is operated more frequently than a typical single-family residential garage.

BENINCA classifies the JM.4ESA for commercial applications, making it suitable for larger residential buildings, shared garages and commercial sectional-door installations.

CP.J4ESA Control Unit with LCD Display

The JM.4ESA incorporates the advanced CP.J4ESA control unit with an integrated LCD display. The display provides professional access to operating parameters, logic and system configuration.

The controller supports automatic and semi-automatic operating logic together with step-by-step, open, close, stop and photocell inputs.

433.92 MHz Integrated Receiver

The CP.J4ESA includes a built-in 433.92 MHz radio receiver with memory for up to 64 codes.

It supports BENINCA Advanced Rolling Code, Rolling Code and Fixed Code radio encoding systems, providing flexibility when configuring compatible BENINCA remote controls.

Encoder & Electronic Limit Switch

The BENINCA JM.4ESA incorporates an encoder for precise monitoring of the sectional door throughout its movement.

The electronic limit-switch system works with the encoder to provide accurate door positioning, while encoder management also contributes to the operator's anti-crushing safety functions.

STC Intelligent Torque Management

BENINCA's STC System manages torque delivery according to the position and actual requirements of the sectional door.

The system calculates operating requirements throughout the travel, identifies critical points and adjusts torque according to the measured performance of the door. This provides precise and controlled movement while improving operational safety.

Anti-Crushing Obstacle Detection

The JM.4ESA combines amperometric obstacle detection with encoder management. This allows the controller to monitor motor load and door movement to provide anti-crushing protection during operation.

Photocell sensors and a compatible N.C. or 8K2 safety edge can also be connected to the CP.J4ESA controller for additional entrance protection.

Soft Start & Adjustable Slowdowns

The CP.J4ESA allows a slower starting speed for the first two seconds of movement to be configured when required. Adjustable slowdowns are also available to provide smoother movement near the end of the door travel.

Energy-Saving ESA System

The JM.4ESA incorporates BENINCA's ESA energy-saving system. The controller also includes an energy-saving courtesy light for practical illumination of the garage area.

An optional SE.MODULE can be used so standby power consumption complies with European Regulation (EU) 2023/826. When SE.MODULE is installed, however, battery operation is not available.

Optional Backup Battery Operation

Compatible batteries can be integrated into the JM.4ESA so the garage door can continue operating during a mains power failure.

Important: battery backup and SE.MODULE operation are alternative configurations. BENINCA specifies that use of SE.MODULE precludes battery operation.

Adjustable Rail Travel

Door travel is adjustable through mechanical stops in the rail. BENINCA specifies one mechanical stop with belt rails and two with chain rails.

The rail is a separate component and is not included with the JM.4ESA motor itself. The correct rail length and type should be selected according to the sectional door height and installation.

BENINCA JM.3 vs JM.4ESA

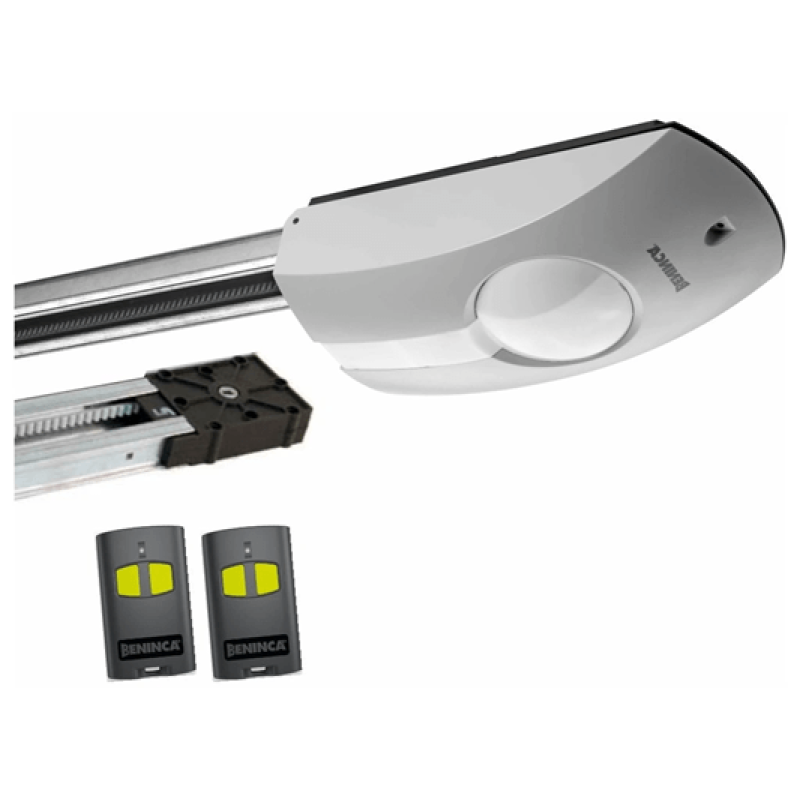

Our UAE BENINCA JM.4ESA Package Includes

• 1 × BENINCA JM.4ESA Garage Door Motor
• 1 × 4 Metre Garage Door Rail
• 2 × BENINCA Remote Controls
• 1 × Pair Photocell Safety Sensors
• 1 × Push Button

Note: This is our UAE package configuration. BENINCA specifies that the rail is not included with the motor itself. Confirm the rail type, rail length and exact accessories supplied when ordering.

BENINCA JM.4ESA Applications

• Large sectional garage doors
• Commercial sectional doors
• Shared residential garages
• Apartment and condominium garages
• Large villa garage doors
• Commercial building garages
• High-frequency sectional door entrances

BENINCA JM.4ESA Supply & Installation UAE

We supply BENINCA JM.4ESA 1200N garage door openers throughout the UAE with professional installation, replacement and technical support available according to site requirements.

Supply and installation are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

For correct garage door motor selection, provide the door width, door height, approximate weight, required rail length, daily operating frequency and clear photos of the sectional garage door before ordering.
