BENINCA BULL8M

BENINCA BULL8M 800 Kg Sliding Gate Motor in UAE

• Residential use.
• 230 Vac.
• Up to 800 kg.
• Integrated device that guarantees maximum precision during the automation manoeuvring steps.
• 64 transmitters storable inside the receiver.
• BENINCA BULL8M.
• Release device entirely of metal equipped with personalized release key.
• Maximum safety and accuracy during the operating phases of the gate thanks to the built-in encoder device.
• The lines and the design make BULL a product perfectly suitable in the most different architectural contexts.
• Available in kit with all accessories.

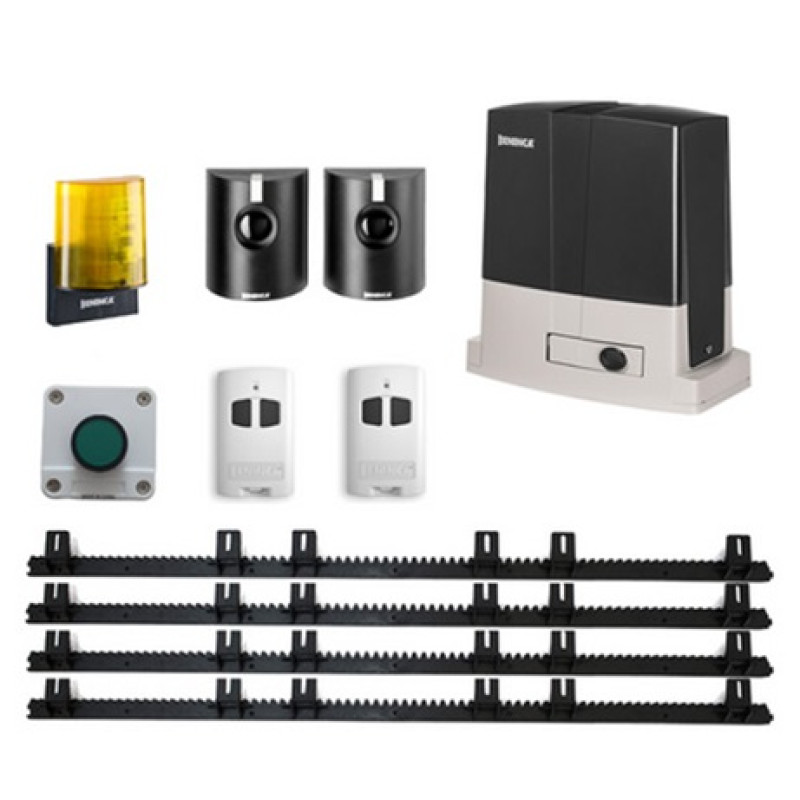

BENINCA BULL8M Kit Includes:

• 1 x Beninca Bull8m Gate motor.
• 2 x Beninca Remote Control 433.92 MHz.
• 1 x  Pair photocells for outdoor use.
• 1 x Control Unit (Inbuilt in the motor)
• 4 x Nylon Rack 1m.
• 1 x Blinker light.
• 1 x Push Button.

Technical Data:

• Power supply : 230 Vac (50-60Hz)
• Motor supply : 230 Vac
• Max absorbed current : 2.6 A
• Maximum thrust : 940 N
• Opening speed : 10.5 m/min
• Duty cycle : 30%
• Protection level : IP44
• Built-in control unit : yes
• Integrated receiver : yes
• Encoder : yes
• Virtual encoder : no
• Magnetic limit switches : no
• Pinion for rack : M4 Z18
• Operating temperature : -20°C /+50°C
• Lubrication : GREASE
• Maximum gate weight : 800 kg
• Weight : 13.6 kg
• Kit weight : 14.5 kg
