BENINCA BULL20M 2000 KG Industrial Sliding Gate Motor

BENINCA BULL20M 2000 KG Industrial Sliding Gate Motor UAE

BENINCA BULL20M is a professional 230V industrial sliding gate motor designed for automatic gates weighing up to 2000 KG. Built for demanding industrial and heavy-gate applications, the BULL20M combines powerful 1667 N maximum thrust, an integrated encoder, built-in CP.BULL-RI control unit and 433.92 MHz radio receiver.

With an opening speed of 10.5 m/min, 40% duty cycle and encoder-controlled movement, the BULL20M provides reliable and precise automation for factories, warehouses, industrial compounds, commercial buildings and other heavy sliding gate entrances throughout the UAE.

BENINCA BULL20M Key Features

• Genuine BENINCA industrial sliding gate motor
• Model: BULL20M
• For sliding gates up to 2000 KG
• Industrial-use gate automation
• 230V AC motor
• 1667 N maximum thrust
• 10.5 m/min opening speed
• 40% duty cycle
• IP44 protection rating
• Built-in CP.BULL-RI control unit
• Integrated 433.92 MHz radio receiver
• Up to 64 transmitters storable
• Advanced Rolling Code, Rolling Code and Fixed Code support
• Integrated encoder
• Encoder-based obstacle detection
• Automatic operating parameter setup
• Electronic motor torque adjustment
• Adjustable slowdowns
• Electronic braking for accurate stopping
• M4 Z18 rack pinion
• Grease-lubricated gearbox
• Foundation plate with anchor bolts included
• Optional steel anti-vandal protective cover
• Operating temperature: -20°C to +50°C

BENINCA BULL20M Technical Specifications

Heavy-Duty 2000 KG Sliding Gate Automation

The BENINCA BULL20M is designed specifically for industrial sliding gates weighing up to 2000 KG. Its powerful 1667 N maximum thrust provides the force required for correctly installed heavy steel and industrial sliding gates.

Motor selection should consider gate weight, gate length, wheel and track condition, operating frequency, wind exposure and the overall mechanical condition of the gate.

1667 N Maximum Thrust

With 1667 N maximum thrust, the BULL20M is one of the heavier-capacity motors in the BENINCA BULL range. It is suitable for large sliding entrances where standard residential and commercial gate motors do not provide sufficient capacity.

CP.BULL-RI Built-In Control Board

The BULL20M incorporates the BENINCA CP.BULL-RI control unit with integrated LCD display and built-in 433.92 MHz radio receiver.

The controller supports automatic, semi-automatic and dead-man operating logic together with open, close, pedestrian, step-by-step and stop commands.

433.92 MHz Integrated Radio Receiver

The integrated radio receiver operates at 433.92 MHz and can store up to 64 compatible transmitters. It supports BENINCA Advanced Rolling Code, Rolling Code and Fixed Code radio encoding systems.

Encoder Obstacle Detection

The BULL20M incorporates an encoder for accurate monitoring of gate movement. The encoder allows the control unit to detect obstacles and manage gate movement with greater safety and precision.

It also contributes to accurate operation throughout acceleration, normal travel, slowdown and stopping phases.

Automatic Setup & Electronic Torque Adjustment

The CP.BULL-RI control system provides automatic setup of operating parameters and electronic motor torque adjustment. This allows the installer to configure the motor according to the characteristics of the gate and installation.

Adjustable Slowdowns & Electronic Braking

Adjustable slowdowns provide smoother gate movement near the opening and closing limits. The control board's electronic braking system helps provide a precise stop even with heavy sliding gates.

BULL20M vs BULL20M.S

BULL20M vs BULL20 HE

The standard BULL20M is a 2000 KG industrial operator with a 40% duty cycle and grease lubrication. For applications requiring substantially more intensive operation, BENINCA also offers the BULL20 HE range with a self-ventilated motor, oil-lubricated gearbox and higher duty cycle.

The correct model should therefore be selected according to both the gate weight and expected operating frequency.

BENINCA BULL20M Applications

• Industrial sliding gates
• Factory entrances
• Warehouse gates
• Commercial compounds
• Large residential communities
• Heavy steel sliding gates
• Commercial parking entrances
• Industrial facilities
• Large automatic driveway gates

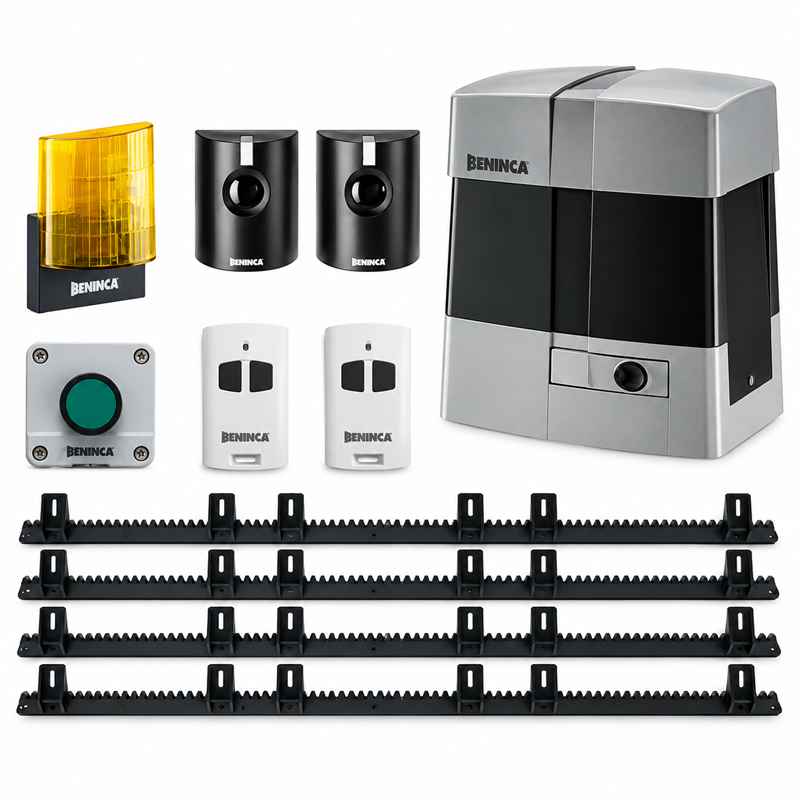

Our UAE BULL20M Package Includes

• 1 × BENINCA BULL20M Sliding Gate Motor
• 2 × BENINCA 433.92 MHz Remote Controls
• 1 × Pair Outdoor Photocell Sensors
• 1 × Built-In Control Unit
• 4 × Nylon Gate Racks – 1 Metre Each
• 1 × Flashing Warning Light
• 1 × Push Button

Note: This is our UAE package configuration. Supplied accessories may vary, so package contents should be confirmed when ordering.

BENINCA BULL20M Supply & Installation UAE

We supply BENINCA BULL20M 2000 KG industrial sliding gate motors throughout the UAE with professional installation, replacement and technical support available according to site requirements.

Supply and installation are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

For correct motor selection, provide the approximate gate weight, gate length, daily operating frequency and a clear site photo before ordering.
