Electromagnetic Door Lock 500 Kg in Dubai UAE

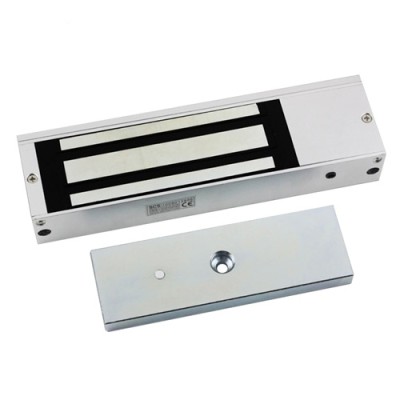

Electromagnetic Door Lock 500 Kg
- 1200Lbs Electromagnetic Lock System
- Voltage: DC12V and DC24V(adjustable)
- Holding Force: 500KG(1200Lbs)
- Single Door 500KG Magnetic Lock
Specifications:
- Lock size : 265Lx72Wx40H(mm)
- Plate : 185Lx60Wx13H(mm)
- Holding Force : 500kg(1200Lbs)
- Voltage : DC12V or DC24V (adjustable)
- Current Draw : 12V/420mA 24V/210mA
- Signal Output : Dry Contact, Max Rating of Contact Current 3A
- Surface Temp : ≤20°C
- Operating Temp : -10°C ~ 55°C (14°F~131°F)
- Suitable Humidity : 0~90%(non-condensing)
- Finishes for Shell : Anodized aluminum surface texture processing
- Finishes for Magnetic : Zinc
- Finishes for Armature : Zinc
- Weight : 4.5kg
