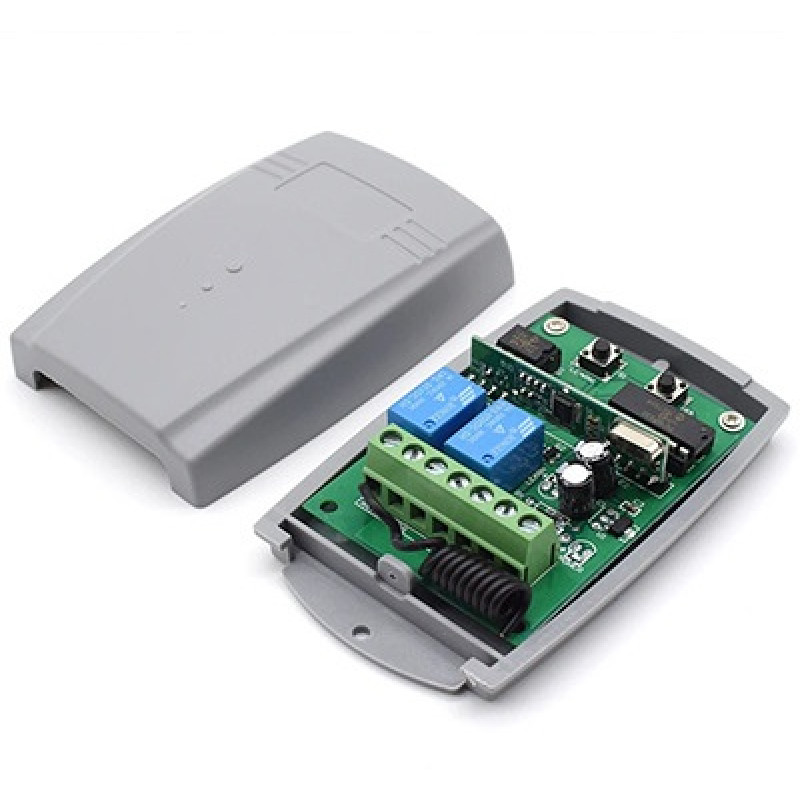

Universal Gate Remote Receiver 433.92MHz
Price 80 AEDIn Stock
Universal 433.92MHz Remote Receiver for Gate Motors UAE
Universal Gate Remote Receiver 433.92MHz is a compact wireless receiver designed to add or replace remote-control functionality on compatible automatic sliding gates, swing gates, garage door openers, parking barriers and other access automation systems.
The receiver operates from a 9–24V DC power supply and uses the widely used 433.92MHz radio frequency. With high receiving sensitivity and memory for up to 200 compatible remote-control keys, it provides a practical solution for residential and commercial gate automation installations.
Universal Gate Receiver Key Features
- Universal gate motor remote receiver
- Operating frequency: 433.92MHz
- Operating voltage: 9–24V DC
- Low standby power consumption
- Receiving sensitivity: ≥ -115dBm
- Memory capacity: up to 200 remote-control keys
- Compact receiver design
- Easy retrofit installation
- Suitable for compatible sliding gate motors
- Suitable for compatible swing gate motors
- Suitable for compatible garage door openers
- Suitable for compatible parking barriers
- Ideal for receiver replacement and remote-control upgrades
Universal Receiver Technical Specifications
| Product Type | Universal Gate Remote Receiver |
| Operating Frequency | 433.92MHz |
| Operating Voltage | 9–24V DC |
| Static Working Current | ≤7mA @ 12V DC |
| Receiving Sensitivity | ≥ -115dBm |
| Remote Memory | Up to 200 Remote Keys |
| Operating Temperature | -20°C to +60°C |
| Approx. Dimensions | 48 × 35 × 16 mm |
| Application | Automatic Gates, Garage Doors & Compatible Barriers |
433.92MHz Gate Remote Receiver
The receiver operates at 433.92MHz, one of the commonly used radio frequencies in automatic gate and garage door systems. It can provide a convenient external receiver solution when an existing built-in receiver is damaged, obsolete or when an additional compatible remote-control system is required.
Important: A remote operating at 433.92MHz is not automatically compatible. The remote-control coding and protocol must also be compatible with the receiver.
9–24V DC Power Supply
The universal receiver accepts a 9V to 24V DC supply, allowing it to be connected to many compatible gate automation control systems.
Always verify the accessory output voltage of the gate control board before connection. Do not connect this receiver directly to 230V AC.
Up to 200 Remote-Control Keys
The receiver can learn up to approximately 200 compatible remote-control keys. This provides sufficient capacity for villas, apartment buildings, offices, warehouses and other residential or commercial gate installations.
Universal Gate Motor Upgrade
An external universal receiver is particularly useful when you want to use a separate remote-control system without replacing the complete gate motor or control board.
The receiver can be connected to the compatible command input of an automation controller so that a programmed remote can provide the required gate command.
Compatible Applications
- Automatic sliding gate motors
- Automatic swing gate motors
- Garage door openers
- Parking gate barriers
- Villa entrance gates
- Residential compound gates
- Commercial automatic gates
- Warehouse entrance gates
- Gate receiver replacement
- Remote-control system upgrades
Can It Work with Different Gate Motor Brands?
The universal receiver can be installed with many different gate motor brands when the control board provides a suitable low-voltage power source and compatible command input.
This makes an external receiver useful for systems from brands such as CAME, NICE, BFT, BENINCA, LIFE, FAAC, DEA, CENTURION and other automation manufacturers. However, compatibility must be checked before installation.
The gate motor brand does not determine remote compatibility by itself. The receiver frequency, remote coding protocol, power supply and controller command input must all be considered.
Receiver Installation
The universal receiver should normally be installed inside the gate motor housing, control-panel enclosure or another suitable protected electrical box.
The receiver's relay command should be connected to the appropriate START, STEP-BY-STEP, OPEN or push-button input of the compatible gate controller according to the control-board wiring diagram.
The receiver is intended to send a control command to the automation board. It should not be used to power the gate motor directly.
Remote Programming
Compatible remote controls are programmed into the receiver using its learning procedure. After successful programming, pressing the assigned remote button activates the receiver output and sends the configured command to the gate controller.
If a remote cannot be programmed, check the 433.92MHz frequency, coding protocol, remote battery and receiver compatibility.
Universal Gate Remote Receiver UAE
We supply 433.92MHz universal gate remote receivers throughout the UAE for automatic gate motors, garage door openers and compatible parking barrier systems.
Supply, installation, receiver replacement and remote programming support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Send us a photo of your existing remote control and gate control board so the receiver voltage, frequency and remote compatibility can be checked.
