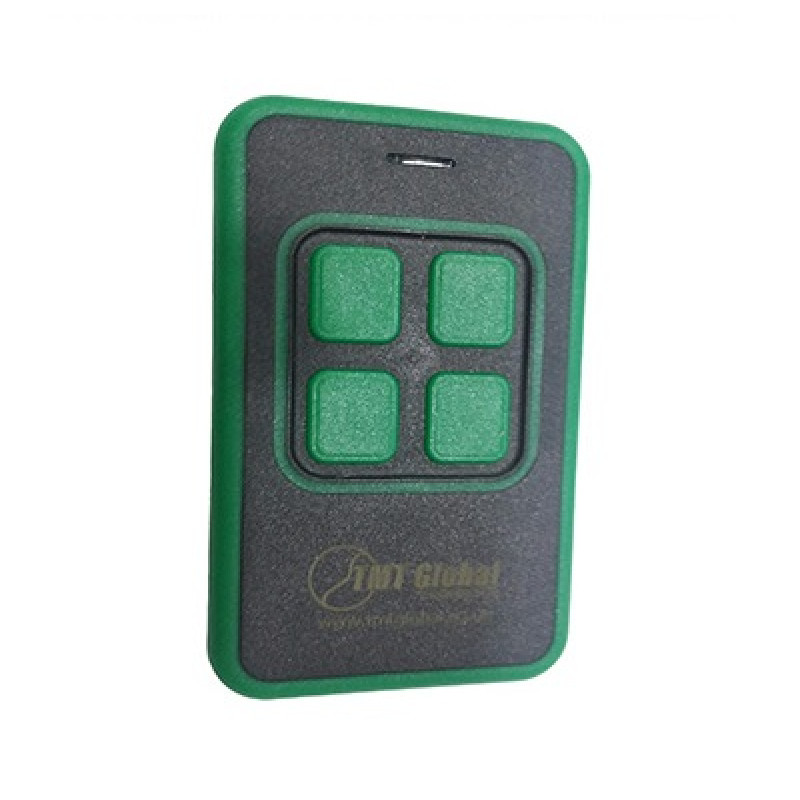

TMT Global TMT-7781 Gate & Barrier Remote Control

TMT Global TMT-7781 Gate & Barrier Remote Control UAE

TMT Global TMT-7781 is a wireless gate and parking barrier remote control designed for compatible TMT Global receivers and automation systems. Using rolling-code technology, the transmitter provides convenient wireless operation for automatic gates, parking barriers, boom gates and other compatible access automation equipment.

The TMT-7781 operates from a 12V DC battery and provides a stated transmission distance of up to 100 metres in open-space conditions. Its compact design makes it suitable as an additional or replacement remote for compatible residential, commercial and industrial gate automation systems.

TMT Global TMT-7781 Key Features

• Original TMT Global remote control
• Model: TMT-7781
• Suitable for compatible gate and barrier automation
• Rolling-code operating technology
• Working voltage: 12V DC
• Working current: ≤12 mA
• Specified working-frequency range: 286–868 MHz
• Transmit power: ≥10 mW
• Transmission speed: 50–60 kHz
• Frequency tolerance: ±0.2 MHz
• Transmission distance: up to 100 metres in open space
• Compact handheld design
• Suitable as an additional or replacement compatible remote
• Suitable for residential and commercial automation

TMT-7781 Technical Specifications

Rolling Code Gate Remote Control

The TMT Global TMT-7781 uses rolling-code operation for compatible TMT Global radio receiver systems. Rolling-code technology changes the transmitted code during operation instead of repeatedly sending one simple fixed code.

The remote must be matched and programmed to a compatible receiver before it can operate an automatic gate or parking barrier.

Up to 100 Metres Transmission Range

The TMT-7781 has a stated wireless transmission distance of up to 100 metres in open-space conditions. This provides convenient operation for automatic gates and parking barriers from a suitable distance.

Actual operating range can vary depending on the receiver, antenna position, surrounding buildings, metal structures, electrical interference, transmitter battery condition and installation environment.

TMT Global Parking Barrier Remote Control

The TMT-7781 is suitable for compatible TMT Global automatic parking barrier systems. Authorised users can operate the barrier remotely without needing to access the barrier control panel.

This makes the remote suitable for residential buildings, commercial parking areas, warehouses, offices and private vehicle entrances using compatible TMT Global receivers.

TMT Global Gate Motor Remote Control

The TMT-7781 can also be used with compatible automatic gate motor receivers. When a suitable TMT Global receiver is connected to the gate controller, the remote can provide a wireless opening or step-by-step command according to the receiver and control-board configuration.

Compatible Applications

• Automatic parking barriers
• Boom gate barriers
• Sliding gate motors
• Swing gate motors
• Garage door openers
• Industrial automatic gates
• Warehouse entrances
• Residential villa gates
• Commercial building entrances
• Compatible access control systems

TMT Global Remote Receiver Compatibility

The TMT-7781 should be used with a compatible TMT Global receiver or another receiver specifically confirmed to support the transmitter's radio frequency and coding system.

TMT Global also supplies external gate automation receivers, including compatible receiver solutions for integrating wireless remote-control commands with automatic gate and barrier control boards.

Remote Control Programming

The TMT Global TMT-7781 remote must be programmed into the compatible receiver before use. The exact programming procedure depends on the receiver model installed with the automatic gate or parking barrier.

Normally, the receiver is placed into programming or learning mode and the required button on the transmitter is then memorised. Always follow the programming procedure for the exact receiver model.

Replacement TMT Global Remote Control

The TMT-7781 is suitable as an additional or replacement remote control where the installed automation system uses a compatible TMT Global receiver.

Before ordering a replacement, check the model, operating frequency and coding system of the existing transmitter and receiver. A similar-looking remote or matching frequency alone does not guarantee compatibility.

Gate & Barrier Remote Control for Villas

The compact TMT Global remote provides convenient everyday vehicle access for compatible automatic villa gates. Drivers can operate the entrance gate from inside the vehicle without manually opening the gate.

Additional compatible remotes can also be programmed for family members, staff or other authorised users, subject to the receiver's memory capacity.

Commercial & Industrial Gate Remote Control

The TMT-7781 can also be used for compatible commercial and industrial automation applications, including warehouse gates, staff parking barriers, office entrances and controlled vehicle access points.

For installations requiring many authorised users, confirm the memory capacity of the installed TMT Global receiver before selecting the complete remote-control system.

TMT Global TMT-7781 Remote Control UAE

We supply TMT Global TMT-7781 gate and parking barrier remote controls throughout the UAE for compatible TMT Global automation systems.

Remote supply, programming assistance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm your existing receiver model, operating frequency and coding technology. If you are unsure, provide clear photos of your existing remote and receiver so compatibility can be checked.
