SOMFY IXENGO JL 230V

SOMFY IXENGO JL Swing Gate Motors in UAE

• Gate weight: 300kg, length: to 4m
• Opening time up to 90°: 7-22s
• Power supply/motor power supply: 230V/230V

• possibility to set operating parameters

• non-retractable mechanism ensures very high resistance
• to heavy pressure wind and attempted forcible opening
• easy and safe disengagement with individual key
• adjustable torque value.

Technical Data of the Activator:

• main power: 220-230 V
• motor power supply: 230 VDC
• power supply for external lighting: 230V-60W
• accessory power supply: 24 V DC / 350 mA
• drive force: 3000N
• opening time to 90 ° without slowing area and maximum speed: 7 to 22 seconds
• Number of storable remote control devices: max. 128 channels
• working temperature: -20 ° C to +60 ° C
• security class: IP 54

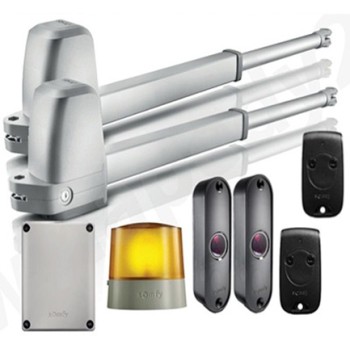

Somfy Ixengo JL Package Contains:

• 2 x actuator Ixengo JL 230V
• 1 x switch CB 230 RTS
• 2 x Keytis RTS 2-channel remote control
• 1 x lamp ECO Pro 230V
• 1 x Pair of Master Pro photocells - Bitech
• 1 x Push Button
