SOMFY IXENGO JS 230V RTS Swing Gate Motor

SOMFY IXENGO JS 230V RTS Swing Gate Motor UAE

SOMFY IXENGO JS 230V RTS is a professional electromechanical swing gate motor designed for gate leaves up to 3 metres long and 300 KG per leaf. Engineered by SOMFY for residential and commercial gate automation, the IXENGO JS combines a powerful 230V AC motor, 3000N push and pull force and SOMFY RTS radio control.

The SOMFY IXENGO JS swing gate opener is designed for semi-intensive operation and is particularly suitable for iron and steel swing gates. Its irreversible mechanism provides strong resistance against wind pressure and attempted forced opening, while the manual key release allows convenient emergency operation.

SOMFY IXENGO JS 230V Key Features

• Original SOMFY swing gate automation
• Model: IXENGO JS 230V RTS
• ECO Comfort Pack reference: 1216546
• Maximum gate leaf length: 3 metres
• Maximum gate leaf weight: 300 KG
• Motor power supply: 230V AC ±10%, 50/60Hz
• Power consumption: 280W
• Push and pull force: 3000N
• Movement speed: 18 mm/s
• Designed for semi-intensive use
• SOMFY RTS radio technology
• Radio frequency: 433.42 MHz
• Up to 128 remote controls can be memorized
• Protection rating: IP54
• Operating temperature: -20°C to +55°C
• Soft Start and Soft Stop functions
• Adjustable torque
• Irreversible electromechanical mechanism
• Individual-key manual release
• Compatible with CB 230 RTS control board
• Suitable for residential and commercial swing gates

SOMFY IXENGO JS 230V Technical Specifications

Up to 3 Metre Swing Gate Leaves

The SOMFY IXENGO JS 230V is designed for compatible swing gate leaves measuring up to 3 metres. It is suitable for single-leaf and double-leaf swing gate installations where the gate dimensions remain within the manufacturer's operating limits.

For a double swing gate, one IXENGO JS actuator is installed on each leaf. The 3-metre specification refers to the maximum length of an individual gate leaf, not the combined width of both leaves.

Up to 300 KG Per Gate Leaf

SOMFY specifies the IXENGO JS for compatible swing gates weighing up to 300 KG per leaf. This provides sufficient capacity for many villa, residential and commercial iron or steel swing gates.

Gate weight and length should be considered together when selecting an operator. Hinge condition, gate balance, wind exposure, pillar dimensions and expected operating frequency should also be checked before installation.

230V AC Electromechanical Swing Gate Motor

The IXENGO JS uses a 230V AC electromechanical motor with approximately 280W power consumption.

This robust mains-powered configuration is designed for reliable swing gate automation in residential and compatible commercial applications.

3000N Push & Pull Force

The SOMFY IXENGO JS provides 3000N push and pull force, delivering strong linear movement for compatible swing gate leaves.

The gate must move freely on its hinges before automation. Motor force should never be used to compensate for damaged hinges, poor gate alignment or excessive mechanical resistance.

18 mm/s Movement Speed

The IXENGO JS has a nominal actuator movement speed of approximately 18 mm/s. Combined with the CB 230 RTS control system, this provides controlled opening and closing of the swing gate.

Semi-Intensive Gate Automation

SOMFY classifies the IXENGO JS 230V as a semi-intensive swing gate operator. This makes it suitable for residential properties and compatible commercial or collective entrances requiring more frequent operation than a basic domestic installation.

Irreversible Mechanism

The IXENGO JS incorporates an irreversible electromechanical mechanism. SOMFY designed this system to provide high resistance against strong wind pressure and attempted forced opening.

This characteristic makes the IXENGO JS particularly suitable for robust iron and steel gates when correctly selected and installed.

Soft Start & Soft Stop

The compatible SOMFY control system provides Soft Start and Soft Stop functions. These functions help provide smoother movement when the gate begins moving and when it approaches the end of travel.

Controlled acceleration and deceleration can also help reduce mechanical stress on the gate, hinges and automation components.

Adjustable Torque

The IXENGO JS system provides adjustable torque settings, allowing the installer to configure motor force according to the characteristics of the gate.

The correct setting should provide reliable operation without applying unnecessary force. All safety devices and force settings should be tested after programming.

CB 230 RTS Control Board

The official IXENGO JS 230V RTS kit uses the SOMFY CB 230 RTS control board. This controller manages the two swing gate actuators together with compatible radio controls and safety accessories.

The CB 230 RTS provides straightforward programming, including automatic gate-course learning and advanced settings through its programming controls.

SOMFY RTS 433.42 MHz Radio Control

The CB 230 RTS uses SOMFY's established RTS radio technology operating at 433.42 MHz.

The system supports up to 128 memorized remote controls, making it suitable for villas as well as compatible shared-access installations requiring multiple transmitters.

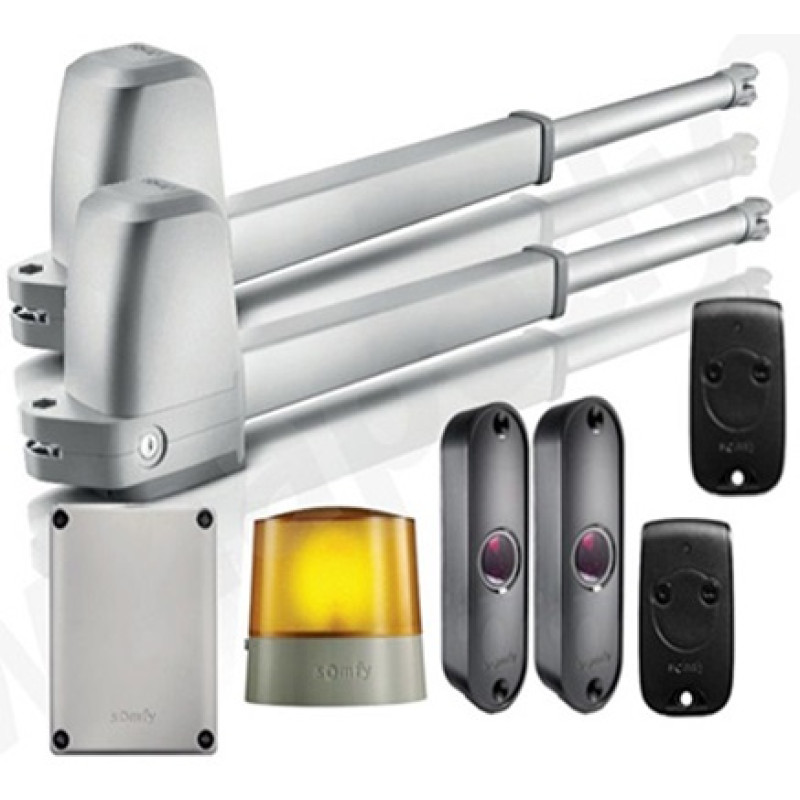

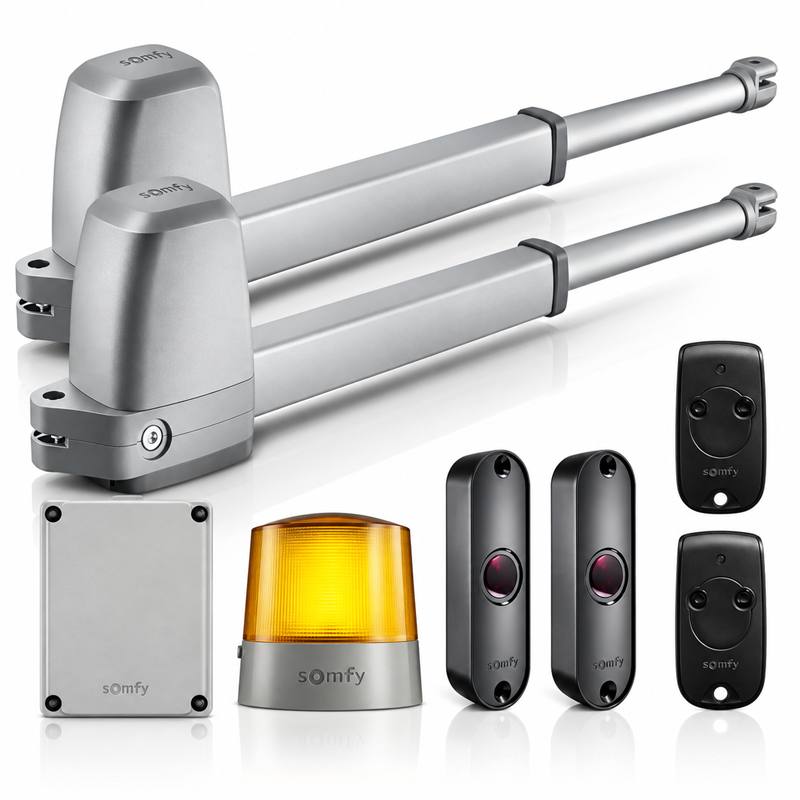

SOMFY IXENGO JS Package Includes

• 2 × SOMFY IXENGO JS 230V swing gate motors
• 1 × SOMFY CB 230 RTS control board
• 2 × SOMFY Keytis RTS 2-channel remote controls
• 1 × SOMFY flashing warning light
• 1 × Pair SOMFY Master Pro Bitech photocell sensors
• 1 × Push button

Note: The above represents our UAE package configuration. Package contents may vary according to stock or the selected installation package. Confirm the exact supplied accessories before ordering.

SOMFY Master Pro Photocell Sensors

Compatible SOMFY Master Pro photocell sensors can be installed with the IXENGO JS system to provide an important safety input for the automatic swing gate.

The photocells monitor the protected entrance using an infrared beam. When a person, vehicle or other obstacle interrupts the beam, the controller responds according to its programmed safety configuration.

Manual Key Release

The SOMFY IXENGO JS provides an individual-key manual release system. This allows the actuator to be disengaged when manual gate operation is required.

The release system is useful during a power failure, maintenance or troubleshooting when the gate must be moved manually.

IXENGO JS vs IXENGO JL

Choose IXENGO JS for compatible gate leaves up to 3 metres and 300 KG. For larger leaves up to 4 metres and 400 KG, the IXENGO JL is the higher-capacity option.

SOMFY IXENGO JS Applications

• Villa swing gates
• Residential automatic gates
• Double-leaf swing gates
• Single-leaf swing gates
• Iron and steel gates
• Private driveway entrances
• Residential compounds
• Compatible commercial entrances
• Swing gate leaves up to 3 metres
• Swing gate leaves up to 300 KG

SOMFY IXENGO JS Installation UAE

Professional installation of the SOMFY IXENGO JS 230V RTS swing gate motor is available for villas, residential properties and compatible commercial entrances throughout the UAE.

Installation can include motor bracket mounting, CB 230 RTS wiring, photocell installation, flashing light connection, RTS remote programming, gate-course programming, torque adjustment, automatic closing setup and complete safety testing.

SOMFY IXENGO JS 230V Swing Gate Motor UAE

We supply SOMFY IXENGO JS 230V RTS swing gate motors throughout the UAE with professional installation, programming, maintenance and technical support.

Supply and installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the length and weight of each gate leaf, hinge position, pillar dimensions, opening angle and expected daily usage. For replacement installations, confirm the exact IXENGO model and motor voltage before ordering.
